Inline Connector End View (C104 )

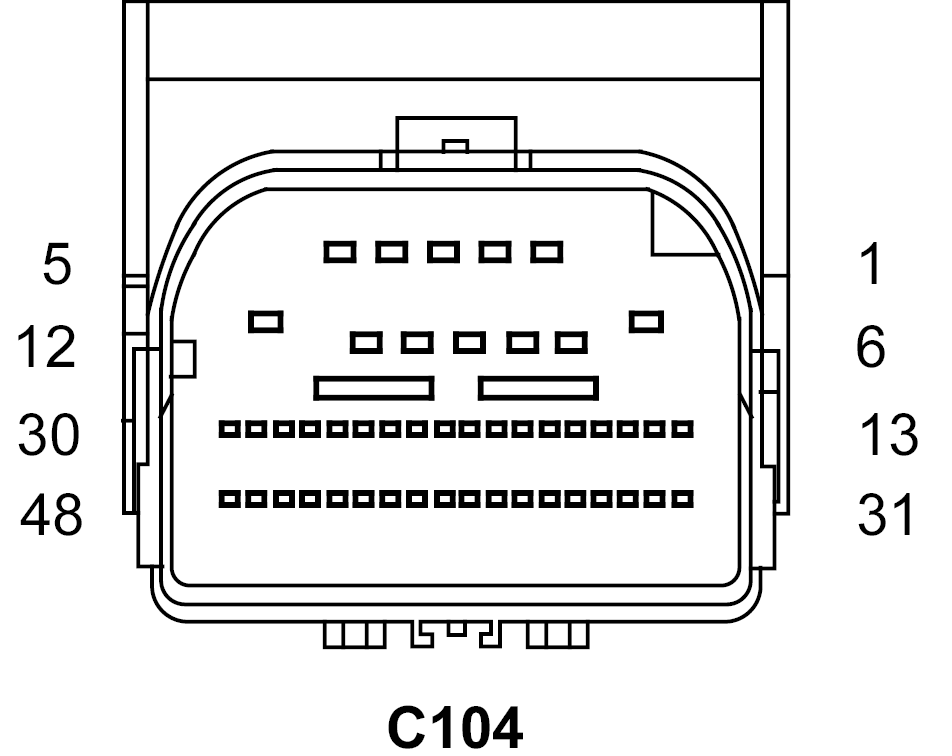

C104 - 48-WAYFEMALE

GXK780455Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 T54 20DG/WT TRANSMISSION TEMPERATURE SENSOR SIGNAL (DIESEL)
1 A803 16LB GEN SENSE (GAS)
2 T72 20YL/DB SENSOR SUPPLY VOLTAGE (3.7L)
2 T71 20YL/OR INPUT SPEED SENSOR 2 (N3) SIGNAL (DIESEL)
3 T13 20DG/VT SENSOR GROUND (3.7L)
4 K29 20WT/BR APPS NO. 2 SIGNAL (3.7L/5.7L)
4 K107 20VT/WT ESM SIGNAL (DIESEL)
5 K23 20BR/WT APPS NO. 1 SIGNAL (3.7L/5.7L)
6 V72 20OR/VT S/C SWITCH SENSE 2 (3.7L)
6 A15 14RD/TN FUSED ASD RELAY OUTPUT (DIESEL EXCEPT EXPORT)
6 A15 16RD/TN FUSED ASD RELAY OUTPUT (DIESEL EXPORT)
7 K400 20BR/VT APPS NO. 2 SENSOR GROUND (3.7L/5.7L)
7 G6 20VT/GY OIL PRESSURE SENSOR SIGNAL (DIESEL)
8 K167 20BR/YL APPS NO. 1 SENSOR GROUND (3.7L/5.7L)
9 T70 20YL INPUT SPEED SENSOR 1 (N2) SIGNAL (3.7L)
9 V35 20VT/OR S/C VENT SOL CONTROL (4.7L)
9 B16 20LB/DG BRAKE SWITCH NO. 2 SIGNAL (5.7L)
10 F855 20PK/YL 5 VOLT SUPPLY (3.7L/5.7L)
10 V36 20VT/YL S/C VACUUM SOL CONTROL (4.7L)
11 F856 20YL/PK 5 VOLT SUPPLY (3.7L/5.7L)
12 T78 18YL SOLENOID SUPPLY VOLTAGE (3.7L)
13 T73 18YL/GY 3-4 SOLENOID CONTROL (GAS NAG1)
13 T15 20YL/BR TRANSMISSION CONTROL RELAY CONTROL (RFE)
14 K342 20BR/WT ASD RELAY CONTROL (GAS)
15 - -
16 A15 14RD/TN FUSED ASD RELAY OUTPUT (GAS)
17 K107 20VT/WT ESM SIGNAL (GAS)
18 F26 18PK/OR IGNITION SWITCH OUTPUT (START) (GAS)
19 B16 20LB/DG BRAKE SWITCH NO. 2 SIGNAL (3.7L)
19 V32 20VT/YL S/C SUPPLY (4.7L)
19 V72 20OR/VT S/C SWITCH SENSE 2 (5.7L)
20 K900 20DB/DG SENSOR GROUND (DIESEL)
20 T71 20YL/OR INPUT SPEED SENSOR 2 (N3) SIGNAL (GAS NAG1)
20 Z903 16BK GROUND (RFE)
21 K125 16BR/DG GEN FIELD CONTROL (GAS)
22 C3 18DB/YL A/C CLUTCH RELAY OUTPUT (DIESEL)
22 D64 20WT/LB CAN C BUS (-) (GAS)
23 D65 20WT/LG CAN C BUS (+) (GAS)
24 C3 18DB/YL A/C CLUTCH RELAY OUTPUT (GAS)
25 K900 20DB/DG SENSOR GROUND (GAS)
26 - -
27 F944 18PK/TN IGNITION SWITCH OUTPUT (RUN-START) (DIESEL)
28 V71 20VT/OR S/C SWITCH SENSE 1 (GAS)
29 T76 20YL/TN MODULATION PRESSURE SOLENOID CONTROL (DIESEL)
29 F942 20PK/LG FUSED IGNITION SWITCH OUTPUT (RUN-START) (GAS)
30 T74 18YL/LG 2-3 SOLENOID CONTROL (DIESEL)
30 K31 20BR FUEL PUMP RELAY CONTROL (GAS)
31 Z153 18BK/GY GROUND (DIESEL NAG1)
31 T54 20DG/WT TRANSMISSION TEMPERATURE SENSOR SIGNAL (GAS NAG1)
31 T16 16YL/OR TRANSMISSION CONTROL RELAY OUTPUT (RFE)
32 T75 18YL/LB TCC SOLENOID CONTROL (NAG1)
32 T5 20DG/YL AUTOSTICK UP/DOWN (ERS) SIGNAL (RFE)
33 T60 18DG/BK 1-2/4-5 SOLENOID CONTROL (DIESEL)
33 T77 20YL/BR SHIFT PRESSURE SOLENOID CONTROL (GAS NAG1)
33 T6 20DG TOW/HAUL OVERDRIVE OFF SWITCH SENSE (RFE)
34 T73 18YL/GY 3-4 SOLENOID CONTROL (DIESEL)
34 B15 20DG/WT BRAKE SWITCH NO. 1 SIGNAL (GAS)
35 T72 20YL/DB - (DIESEL)
35 K70 20DB/BR EVAP PURGE SOL CONTROL (GAS)
36 T77 20YL/BR SHIFT PRESSURE SOLENOID CONTROL (DIESEL)
36 T752 20DG/OR ENGINE STARTER MOTOR RELAY CONTROL (GAS)
37 T70 20YL INPUT SPEED SENSOR 1 (N2) SIGNAL (DIESEL)
37 Z153 18BK/GY GROUND (GAS)
38 T78 18YL SOLENOID SUPPLY VOLTAGE (DIESEL)
38 V937 20VT/BR S/C SWITCH RETURN (GAS)
39 T13 20DG/VT SENSOR GROUND (DIESEL)
39 F42 14DG/LG FUSED ASD RELAY OUTPUT (GAS)
40 A209 18RD FUSED B(+) (GAS)
41 Z42 16BK/LG GROUND
42 T60 18DG/BK 1-2/4-5 SOLENOID CONTROL (GAS NAG1)
42 F1 18PK/WT FUSED IGNITION SWITCH OUTPUT (RUN-START) (RFE)
43 K52 20DB/WT EVAP PURGE SOL SIGNAL (GAS)
44 C13 20LB/OR A/C CLUTCH RELAY CONTROL (GAS)
45 Z130 14BK/BR GROUND (GAS)
46 Z816 14BK GROUND (GAS)
47 T76 20YL/TN MODULATION PRESSURE SOLENOID CONTROL (GAS NAG1)
48 T74 18YL/LG 2-3 SOLENOID CONTROL (GAS NAG1)

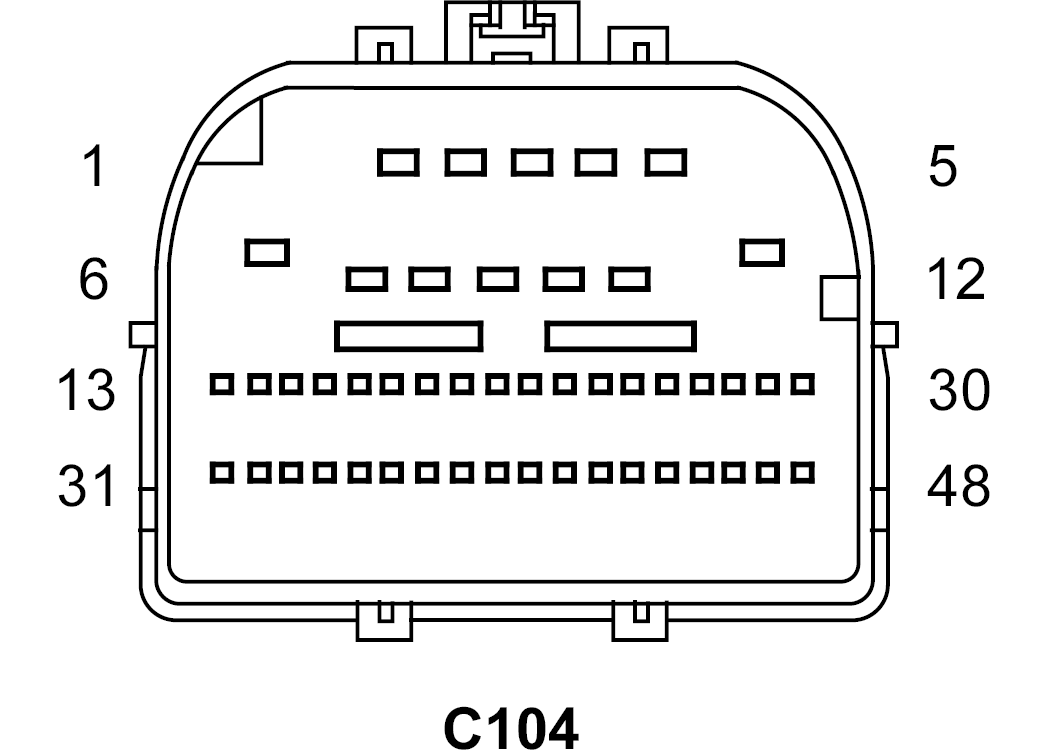

C104 - 48-WAY0-WAYMALE

GXK780456Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 T54 18GY/WT TRANSMISSION TEMPERATURE SENSOR SIGNAL (DIESEL)
1 A803 16LB GEN SENSE (GAS)
2 T72 20YL/DB SENSOR SUPPLY VOLTAGE (3.7L)
2 T71 18OR INPUT SPEED SENSOR 2 (N3) SIGNAL (DIESEL)
3 T13 20DG/VT SENSOR GROUND (3.7L)
4 K29 20WT/BR APPS NO. 2 SIGNAL (3.7L/5.7L)
5 K23 20BR/WT APPS NO. 1 SIGNAL (3.7L/5.7L)
6 V72 20OR/VT S/C SWITCH SENSE 2 (3.7L)
6 A15 16RD/DG FUSED ASD RELAY OUTPUT (DIESEL)
7 K400 20BR/VT APPS NO. 2 SENSOR GROUND (3.7L/5.7L)
7 G6 20BL/RD OIL PRESSURE SENSOR SIGNAL (DIESEL)
8 K167 20BR/YL APPS NO. 1 SENSOR GROUND (3.7L/5.7L)
9 V35 20VT/OR S/C VENT SOL CONTROL (4.7L)
9 B16 20LB/DG BRAKE SWITCH NO. 2 SIGNAL (5.7L)
9 T70 20YL INPUT SPEED SENSOR 1 (N2) SIGNAL (GAS NAG1)
10 F855 20PK/YL 5 VOLT SUPPLY (3.7L/5.7L)
10 V36 20VT/YL S/C VACUUM SOL CONTROL (4.7L)
11 F856 20YL/PK 5 VOLT SUPPLY (3.7L/5.7L)
12 T78 18YL SOLENOID SUPPLY VOLTAGE (GAS NAG1)
13 T73 18YL/GY 3-4 SOLENOID CONTROL (GAS NAG1)
13 T15 20YL/BR TRANSMISSION CONTROL RELAY CONTROL (RFE)
14 K342 20BR/WT ASD RELAY CONTROL (GAS)
15 - -
16 A15 16RD/TN FUSED ASD RELAY OUTPUT (GAS)
17 K107 20VT/WT ESM SIGNAL (GAS)
18 F26 18PK/OR IGNITION SWITCH OUTPUT (START) (GAS)
19 B16 20LB/DG BRAKE SWITCH NO. 2 SIGNAL (3.7L)
19 V32 20VT/YL S/C SUPPLY (4.7L)
19 V72 20OR/VT S/C SWITCH SENSE 2 (5.7L)
20 T71 20YL/OR INPUT SPEED SENSOR 2 (N3) SIGNAL (GAS NAG1)
20 Z903 16BK GROUND (RFE)
21 K125 16BR/DG GEN FIELD CONTROL (GAS)
22 C3 18BL/YL A/C CLUTCH RELAY OUTPUT (DIESEL)
22 D64 20WT/LB CAN C BUS (-) (GAS)
23 D65 20WT/LG CAN C BUS (+) (GAS)
24 C3 18DB/YL A/C CLUTCH RELAY OUTPUT (GAS)
25 K900 20DB/DG SENSOR GROUND (GAS)
26 - -
27 - -
27 F944 18PK/BK IGNITION SWITCH OUTPUT (RUN-START) (DIESEL)
28 V71 20VT/OR S/C SWITCH SENSE 1 (GAS)
29 T76 18YL/BK MODULATION PRESSURE SOLENOID CONTROL (DIESEL)
29 F942 20PK/LG FUSED IGNITION SWITCH OUTPUT (RUN-START) (GAS)
30 T74 18YL/BR - (DIESEL)
30 K31 20BR FUEL PUMP RELAY CONTROL (GAS)
31 Z153 18BR GROUND (DIESEL NAG1)
31 T54 20DG/WT TRANSMISSION TEMPERATURE SENSOR SIGNAL (GAS NAG1)
31 T16 16YL/OR TRANSMISSION CONTROL RELAY OUTPUT (RFE)
32 T75 18BL/YL TCC SOLENOID CONTROL (DIESEL NAG1)
32 T75 18YL/LB TCC SOLENOID CONTROL (GAS NAG1)
32 T5 20DG/YL AUTOSTICK UP/DOWN (ERS) SIGNAL (RFE)
33 T60 18GY/BK 1-2/4-5 SOLENOID CONTROL (DIESEL NAG1)
33 T77 20YL/BR SHIFT PRESSURE SOLENOID CONTROL (GAS NAG1)
33 T6 20DG TOW/HAUL OVERDRIVE OFF SWITCH SENSE (RFE)
34 T73 18GY/YL 3-4 SOLENOID CONTROL (DIESEL)
34 B15 20DG/WT BRAKE SWITCH NO. 1 SIGNAL (GAS)
35 T77 18YL/BL SHIFT PRESSURE SOLENOID CONTROL (DIESEL)
35 K70 20DB/BR EVAP PURGE SOL CONTROL (GAS)
36 T752 20DG/OR ENGINE STARTER MOTOR RELAY CONTROL (GAS)
37 T70 18YL/BR INPUT SPEED SENSOR 1 (N2) SIGNAL (DIESEL)
37 Z153 18BK/GY GROUND (GAS)
38 T78 18YL SOLENOID SUPPLY VOLTAGE (DIESEL)
38 V937 20VT/BR S/C SWITCH RETURN (GAS)
39 T13 18GY/VT SENSOR GROUND (DIESEL)
39 F42 14DG/LG FUSED ASD RELAY OUTPUT (GAS)
40 A209 18RD FUSED B(+) (GAS)
41 Z42 16BR GROUND (DIESEL)
41 Z42 16BK/LG GROUND (GAS)
42 T60 18DG/BK 1-2/4-5 SOLENOID CONTROL (GAS NAG1)
42 F1 18PK/WT FUSED IGNITION SWITCH OUTPUT (RUN-START) (RFE)
43 K52 20DB/WT EVAP PURGE SOL SIGNAL (GAS)
44 C13 20LB/OR A/C CLUTCH RELAY CONTROL (GAS)
45 Z130 14BK/BR GROUND (GAS)
46 Z816 14BK GROUND (GAS)
47 T76 20YL/TN MODULATION PRESSURE SOLENOID CONTROL (GAS NAG1)
48 T74 18YL/LG 2-3 SOLENOID CONTROL (GAS NAG1)
