Inline (Diesel/3.7L A/T) Connector End View (C114)

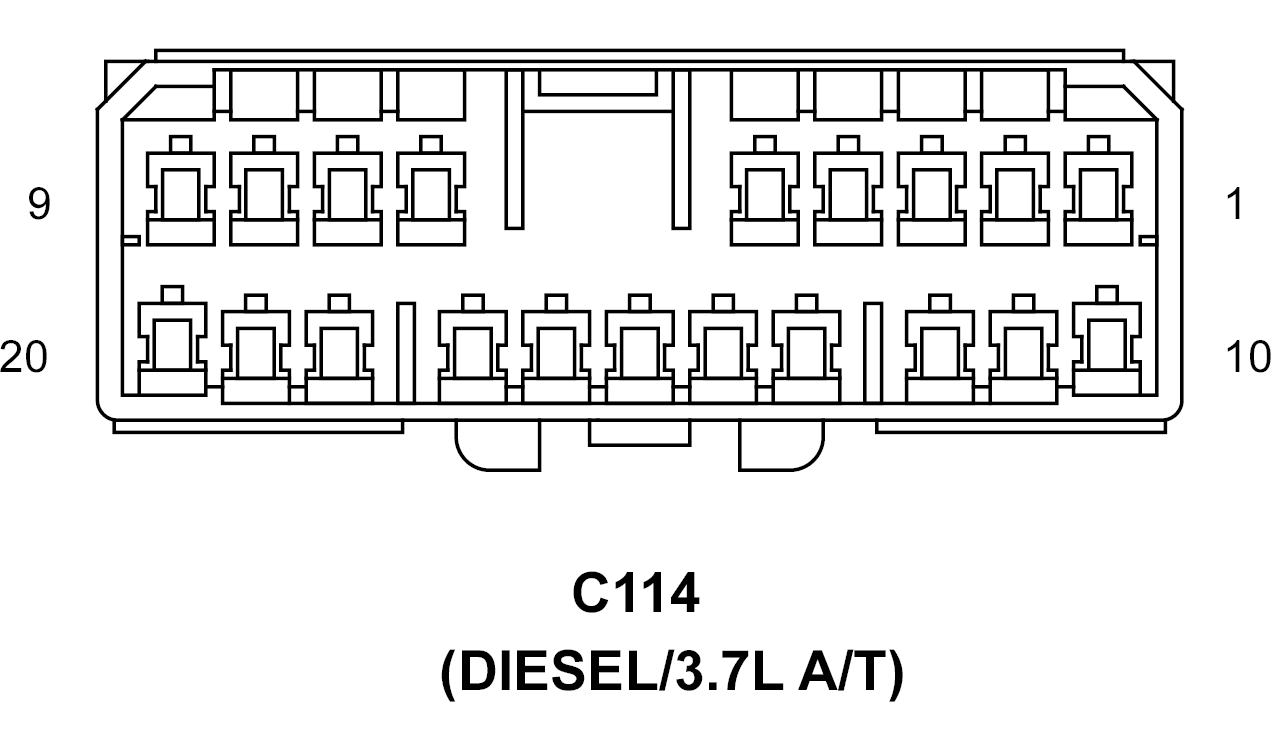

C114 - 20-WAY(DIESEL/3.7L A/T) FEMALE

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	D223 20WT/VT	SCI TRANSMIT (PCM)
2	T76 20YL/TN	MODULATION PRESSURE SOLENOID CONTROL
3	T71 20YL/OR	INPUT SPEED SENSOR 2 (N3) SIGNAL
4	T74 18YL/LG	2-3 SOLENOID CONTROL
5	T75 18YL/LB	TCC SOLENOID CONTROL
6	T60 18DG/BK	1-2/4-5 SOLENOID CONTROL
7	T73 18YL/GY	3-4 SOLENOID CONTROL
8	T72 20YL/DB	SENSOR SUPPLY VOLTAGE
9	T77 20YL/BR	SHIFT PRESSURE SOLENOID CONTROL
10	-	-
11	T78 18YL	SOLENOID SUPPLY VOLTAGE
12	D65 20WT/LG	CAN C BUS (+)
13	D64 20WT/LB	CAN C BUS (-)
14	F946 20PK/LG	TRANSMISSION RELAY OUTPUT
15	T13 20DG/VT	SENSOR GROUND
16	T54 20DG/OR	TRANSMISSION TEMPERATURE SENSOR SIGNAL
17	Z904 18BK	GROUND
18	T70 20YL	INPUT SPEED SENSOR 1 (N2) SIGNAL
19	-	-
20	-	-

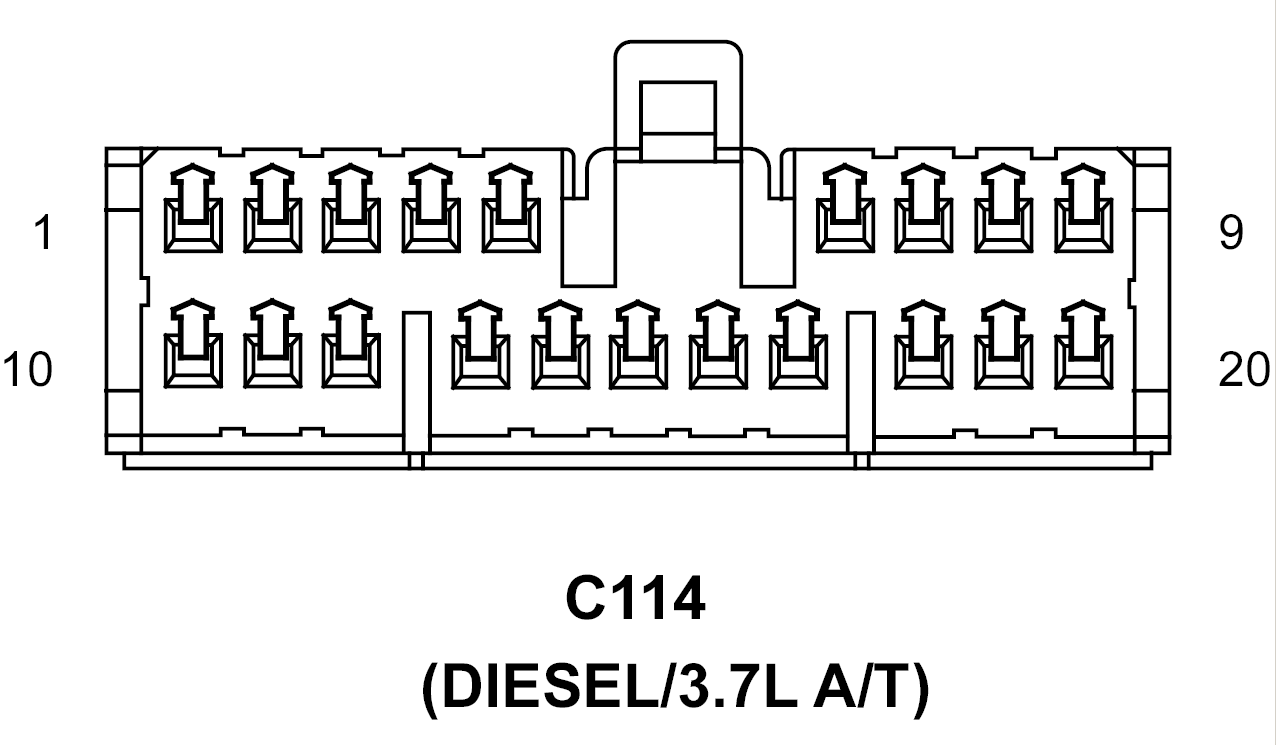

C114 - 20-WAY(DIESEL/3.7L A/T) MALE

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	-	-
2	T76 20YL/TN	MODULATION PRESSURE SOLENOID CONTROL
3	T71 20YL/OR	INPUT SPEED SENSOR 2 (N3) SIGNAL
4	T74 18YL/LG	2-3 SOLENOID CONTROL
5	T75 18YL/LB	TCC SOLENOID CONTROL
6	T60 18DG/BK	1-2/4-5 SOLENOID CONTROL
7	T73 18YL/GY	3-4 SOLENOID CONTROL
8	T72 20YL/DB	SENSOR SUPPLY VOLTAGE
9	T77 20YL/BR	SHIFT PRESSURE SOLENOID CONTROL
10	-	-
11	T78 18YL	SOLENOID SUPPLY VOLTAGE
12	D65 20WT/LG	CAN C BUS (+)
13	D64 20WT/LB	CAN C BUS (-)
14	F946 20PK/LG	TRANSMISSION RELAY OUTPUT
15	T13 20DG/VT	SENSOR GROUND
16	T54 20DG/WT	TRANSMISSION TEMPERATURE SENSOR-P/N SWITCH SIGNAL
17	Z904 18BK	GROUND
18	T70 20YL	INPUT SPEED SENSOR 1 (N2) SIGNAL
19	-	-
20	-	-
