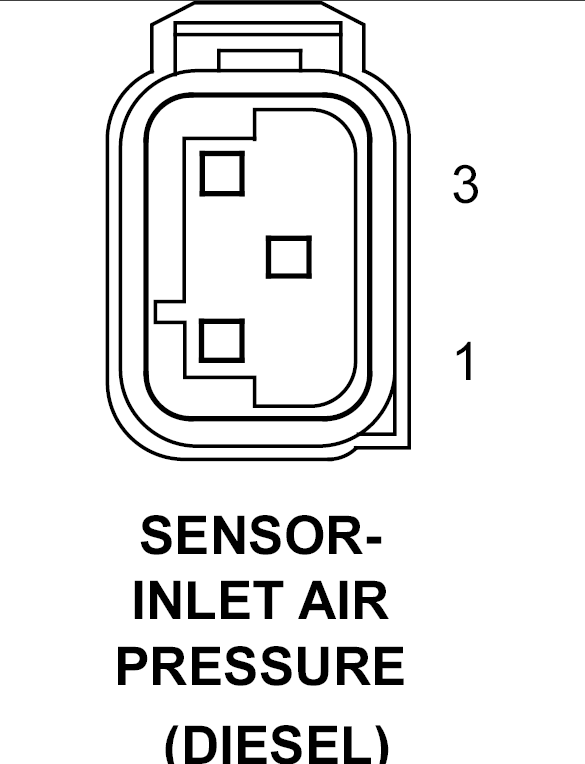

Inlet Air Pressure Sensor (Diesel) Connector End View
SENSOR-INLET AIR PRESSURE - 3-WAY(DIESEL)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K900 20BR/RD |
INLET AIR PRESSURE SENSOR GROUND |
| 2 |
K68 20RD/BL |
INLET AIR PRESSURE SENSOR SIGNAL |
| 3 |
K668 20BR/BK |
INLET AIR PRESSURE SENSOR 5 VOLT SUPPLY |
