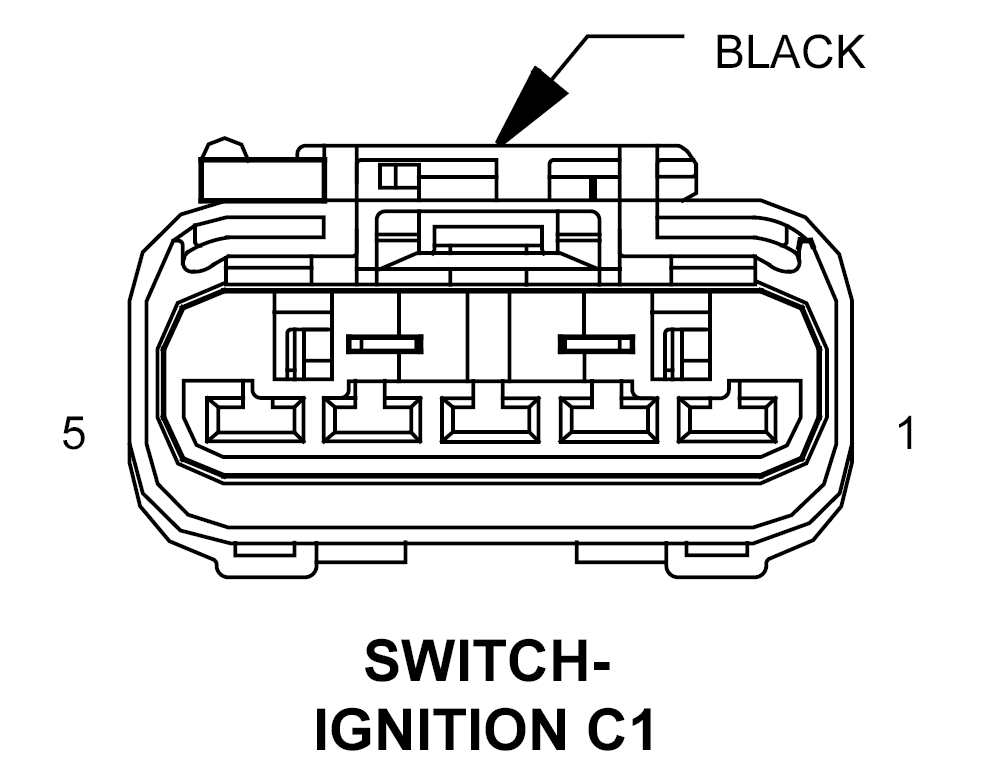

Ignition Switch Connector End View (C1)
SWITCH-IGNITION C1 - BLACK 5-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
G900 20VT/OR |
IGNITION SWITCH SENSE RETURN |
| 2 |
G20 20VT/BR |
IGNITION SWITCH SENSE |
| 3 |
F944 16PK/LG |
IGNITION SWITCH OUTPUT (RUN-START) |
| 4 |
F26 16PK/OR |
IGNITION SWITCH OUTPUT (START) |
| 5 |
A106 16LB/RD |
FUSED B(+) |
