Horn Relay Connector End View

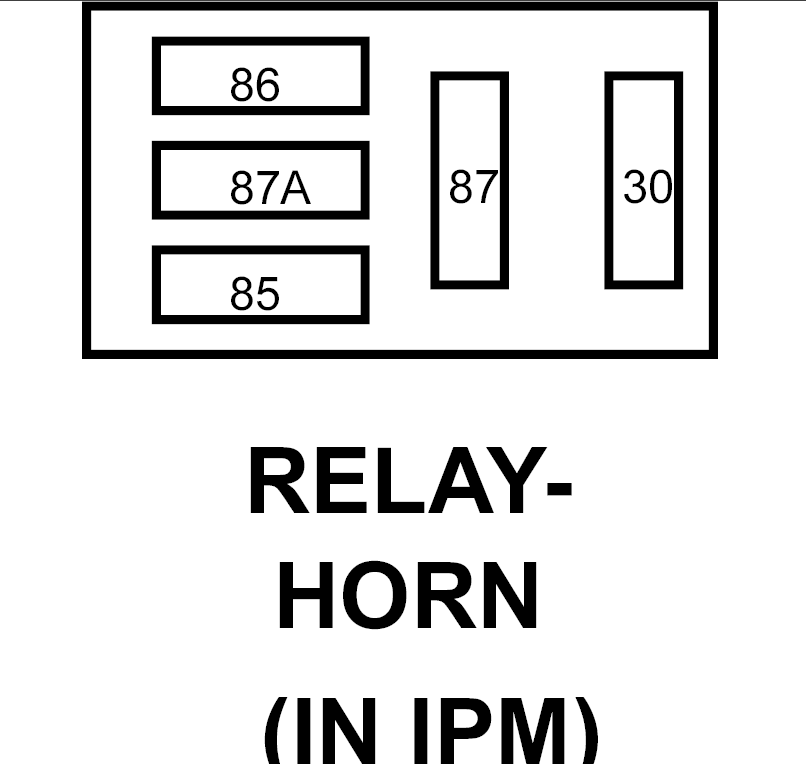

RELAY-HORN - 0-WAY

GXK713007Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
30 INTERNAL FUSED B(+)
85 INTERNAL HORN RELAY CONTROL
86 INTERNAL FUSED B(+)
87 X2 18DG/OR HORN RELAY OUTPUT
87A - -
