Glow Plug 6 (Diesel) Connector End View
Glow Plug 6 (Diesel) Connector End View

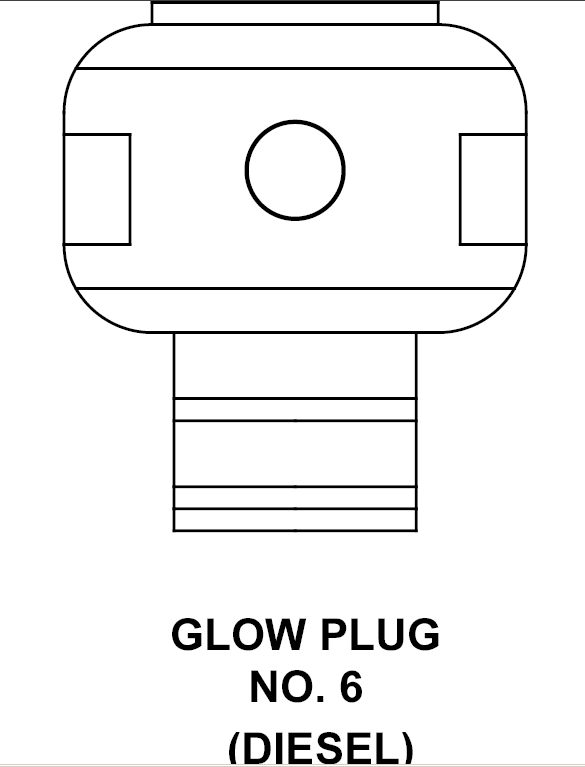

GLOW PLUG NO. 6 - 1-WAY(DIESEL)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
A216 16BK/WT
GLOW PLUG NO. 6 CONTROL
Courtesy of CHRYSLER CORP.
