Glow Plug 4 (Diesel) Connector End View

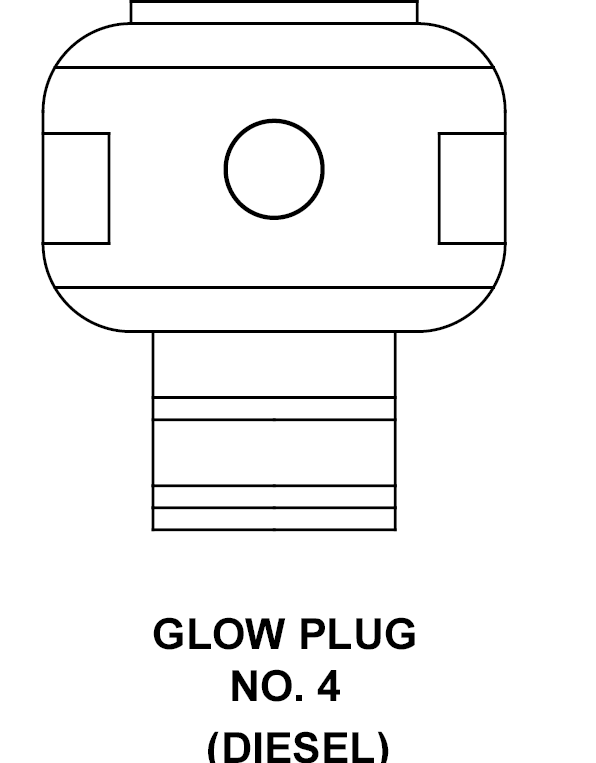

GLOW PLUG NO. 4 - 1-WAY(DIESEL)

GXK780140Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 A208 16BK/YL GLOW PLUG NO. 4 CONTROL
