Glow Plug 2 (Diesel) Connector End View

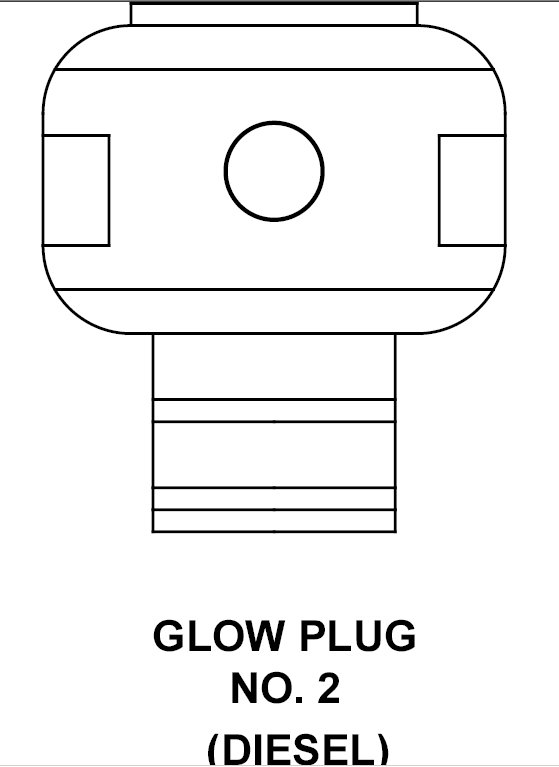

Glow Plug 2 (Diesel) Connector End View
GLOW PLUG NO. 2 - 1-WAY(DIESEL)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
A203 16BK/VT
GLOW PLUG NO. 2 CONTROL
Courtesy of CHRYSLER CORP.
