Fuel Pressure Solenoid (Diesel) Connector End View
Fuel Pressure Solenoid (Diesel) Connector End View

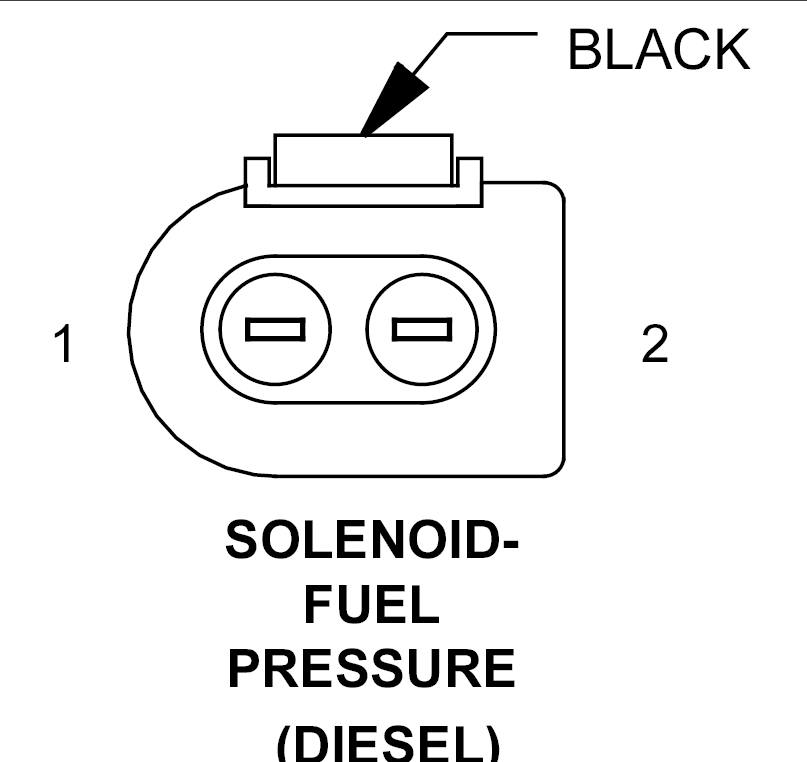

SOLENOID-FUEL PRESSURE - BLACK 2-WAY(DIESEL)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
K370 18BK/WT
FUEL PRESSURE SOLENOID CONTROL
2
K369 18RD/GY
FUEL PRESSURE SOLENOID 12 VOLT SUPPLY
