Fuel Injector 8 (4.7L/5.7L) Connector End View

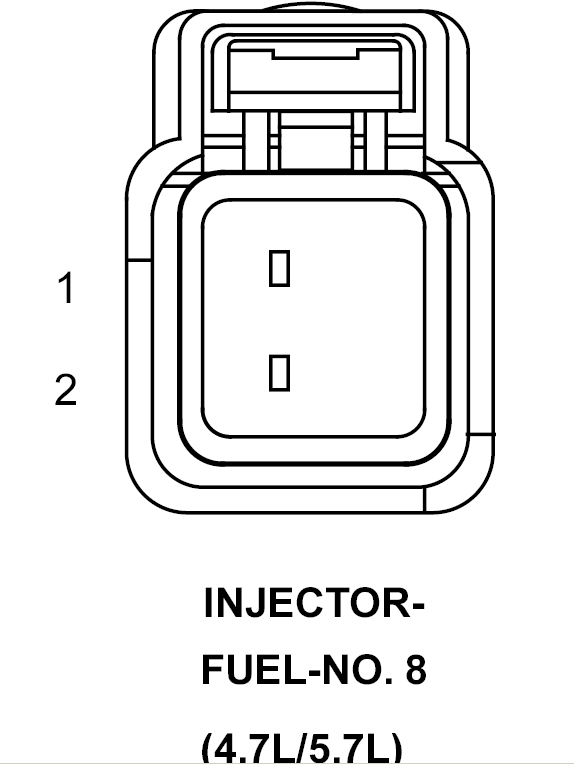

INJECTOR-FUEL-NO. 8 - 2-WAY(4.7L/5.7L)

GXK780167Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 K28 16BR/LB INJECTOR CONTROL NO. 8
2 F42 16DG/LG FUSED ASD RELAY OUTPUT
