Fuel Injector 7 (4.7L/5.7L) Connector End View

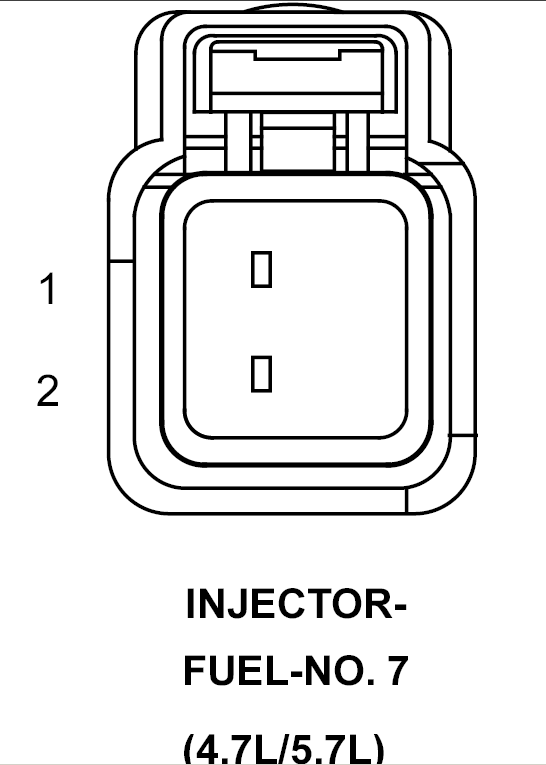

INJECTOR-FUEL-NO. 7 - 2-WAY(4.7L/5.7L)

GXK780166Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 K26 16BR/YL INJECTOR CONTROL NO. 7
2 F42 16DG/LG FUSED ASD RELAY OUTPUT
