Fuel Injector 6 (Gas) Connector End View

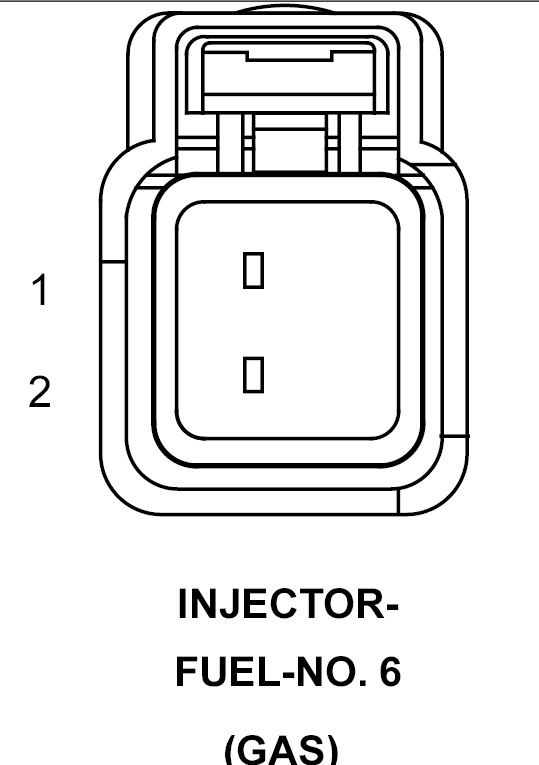

INJECTOR-FUEL-NO. 6 - 2-WAY(GAS)

GXK780165Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 K58 16BR/VT INJECTOR CONTROL NO. 6
2 F42 16DG/LG FUSED ASD RELAY OUTPUT
