Fuel Injector 6 (Diesel) Connector End View

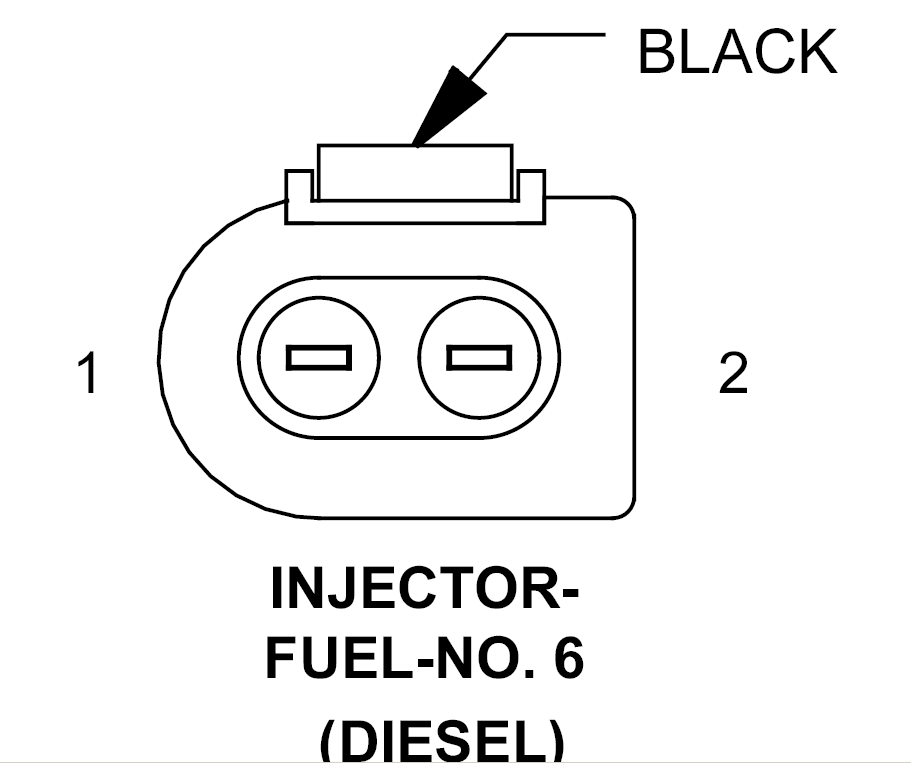

INJECTOR-FUEL-NO. 6 - 2-WAY(DIESEL)

GXK780164Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 K658 16BK/WT FUEL INJECTOR NO. 6 LOW-SIDE CONTROL
2 K58 16BL/WT FUEL INJECTOR NO. 6 HIGH-SIDE CONTROL
