Fuel Injector 5 (Gas) Connector End View
Fuel Injector 5 (Gas) Connector End View

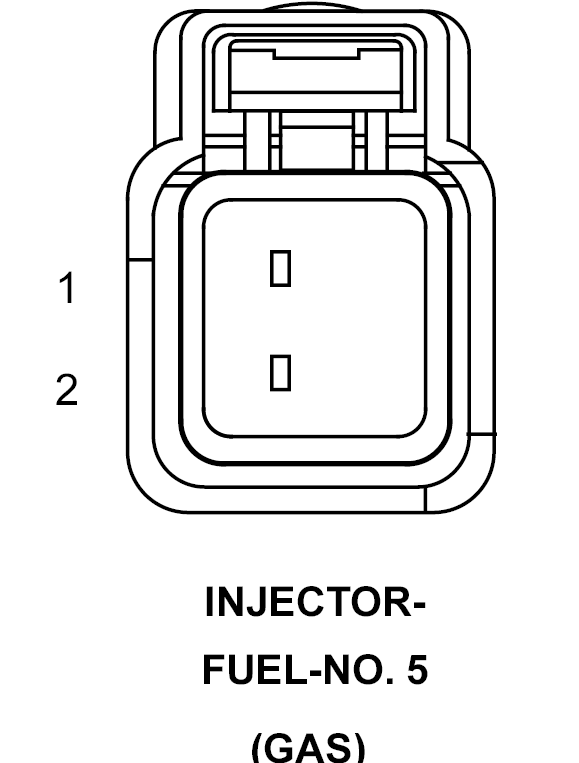

INJECTOR-FUEL-NO. 5 - 2-WAY(GAS)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
K38 16BR/OR
INJECTOR CONTROL NO. 5
2
F42 16DG/LG
FUSED ASD RELAY OUTPUT
Courtesy of CHRYSLER CORP.
