Fuel Injector 5 (Diesel) Connector End View

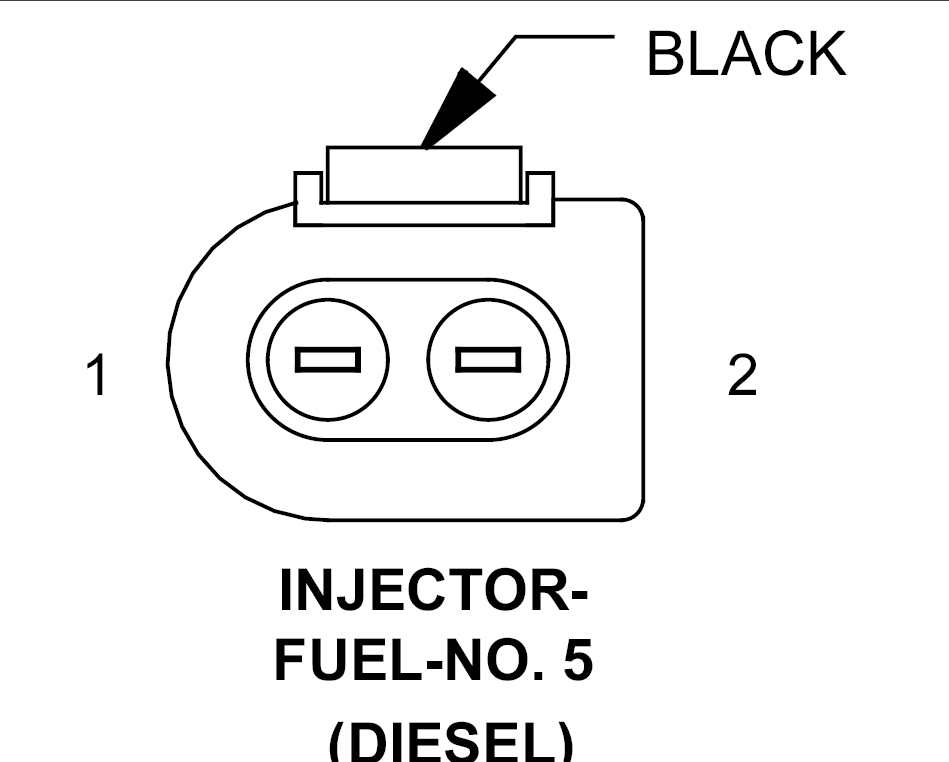

INJECTOR-FUEL-NO. 5 - 2-WAY(DIESEL)

GXK780162Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 K638 16BK/DG FUEL INJECTOR NO. 5 LOW-SIDE CONTROL
2 K38 16BL/DG FUEL INJECTOR NO. 5 HIGH-SIDE CONTROL
