Fuel Injector 3 (Diesel) Connector End View

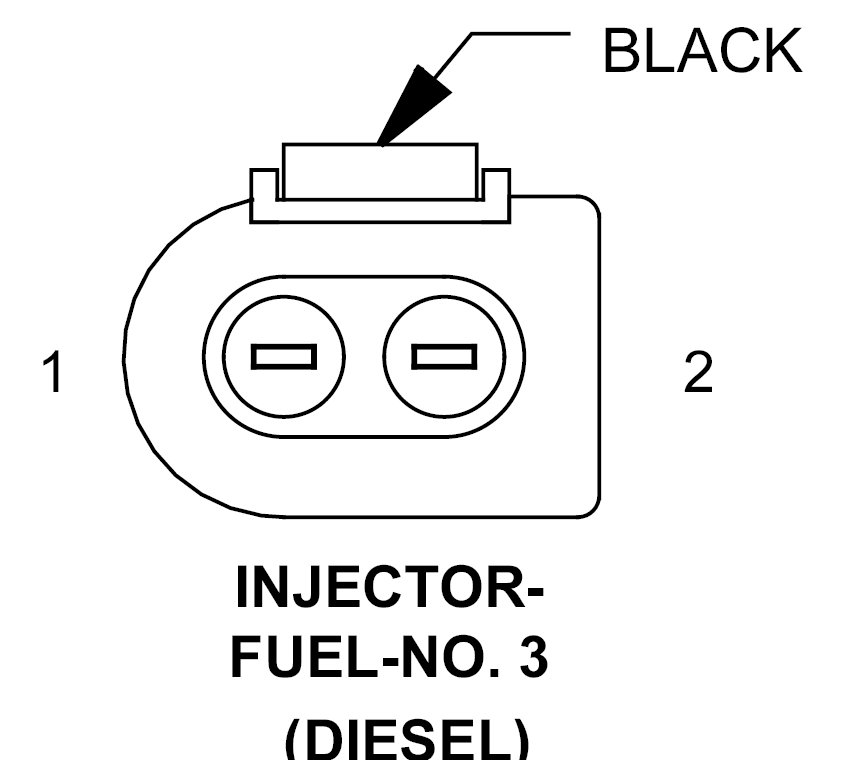

INJECTOR-FUEL-NO. 3 - 2-WAY(DIESEL)

GXK780158Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 K613 16BK/RD FUEL INJECTOR NO. 3 LOW-SIDE CONTROL
2 K13 16BL/RD FUEL INJECTOR NO. 3 HIGH-SIDE CONTROL
