Fuel Injector 2 (Gas) Connector End View

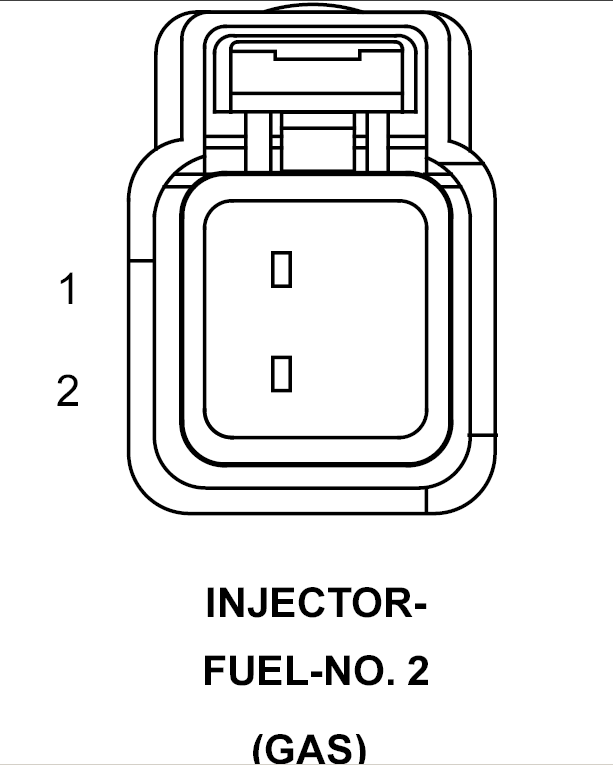

INJECTOR-FUEL-NO. 2 - 2-WAY(GAS)

GXK780157Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 K12 16BR/DB INJECTOR CONTROL NO. 2
2 F42 16DG/LG FUSED ASD RELAY OUTPUT
