Fuel Injector 2 (Diesel) Connector End View

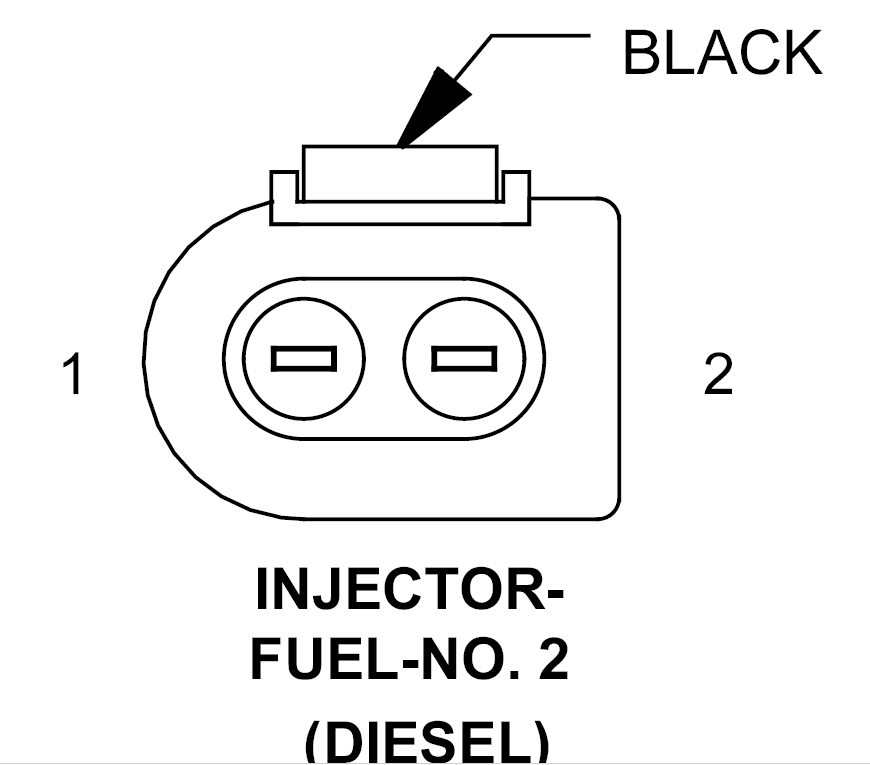

INJECTOR-FUEL-NO. 2 - 2-WAY(DIESEL)

GXK780156Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 K612 16BK/VT FUEL INJECTOR NO. 2 LOW-SIDE CONTROL
2 K12 16BL/VT FUEL INJECTOR NO. 2 HIGH-SIDE CONTROL
