Front Park Assist Display Connector End View

DISPLAY-PARK ASSIST-FRONT - 3-WAY

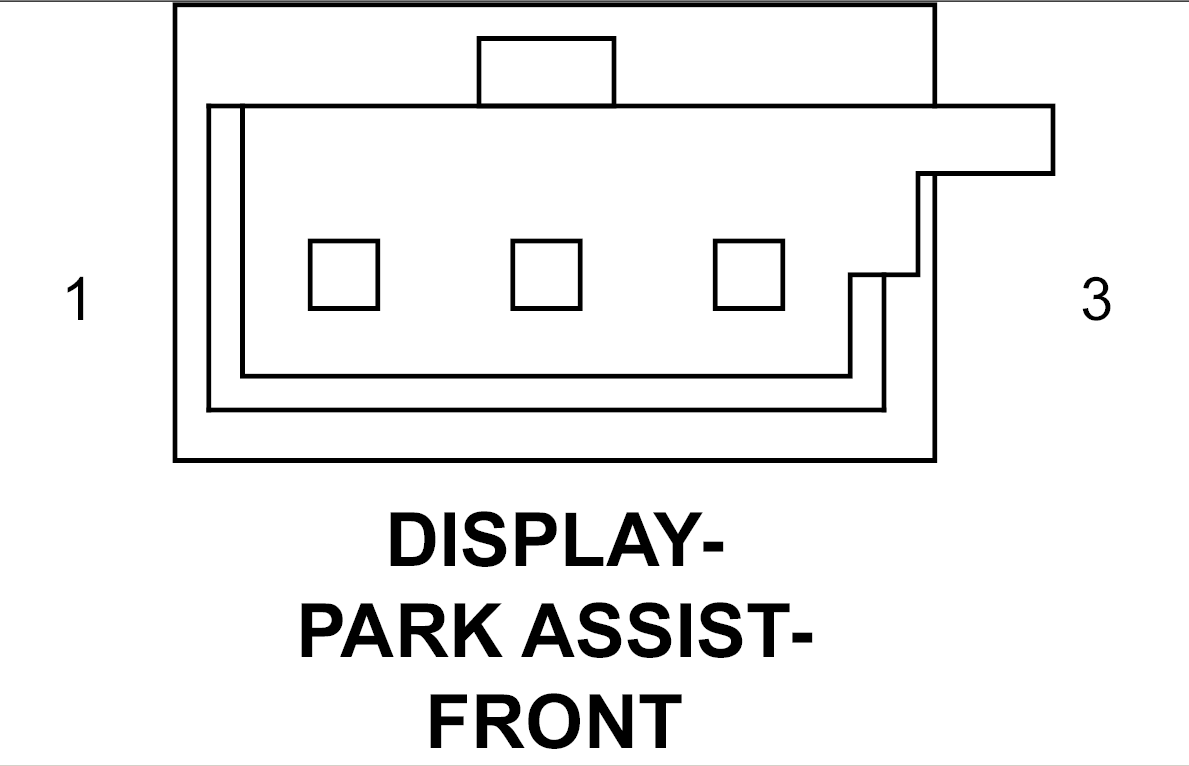

GXK780129Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 X778 20GY/DB PARK ASSIST DISPLAY SUPPLY
2 Z172 20BK/OR GROUND
3 D778 20WT/OR FRONT PARK ASSIST DISPLAY SIGNAL
