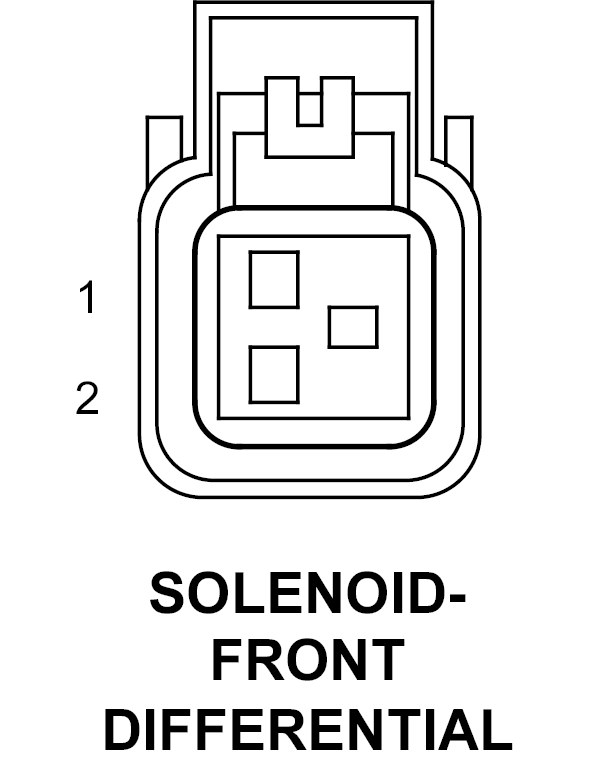

Front Differential Solenoid Connector End View
Front Differential Solenoid Connector End View
SOLENOID-FRONT DIFFERENTIAL - 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
T301 20DG/YL
SWITCHED BATTERY SOLENOID SUPPLY
2
T306 20DG/DB
FRONT DIFFERENTIAL SOLENOID CONTROL
Courtesy of CHRYSLER CORP.
