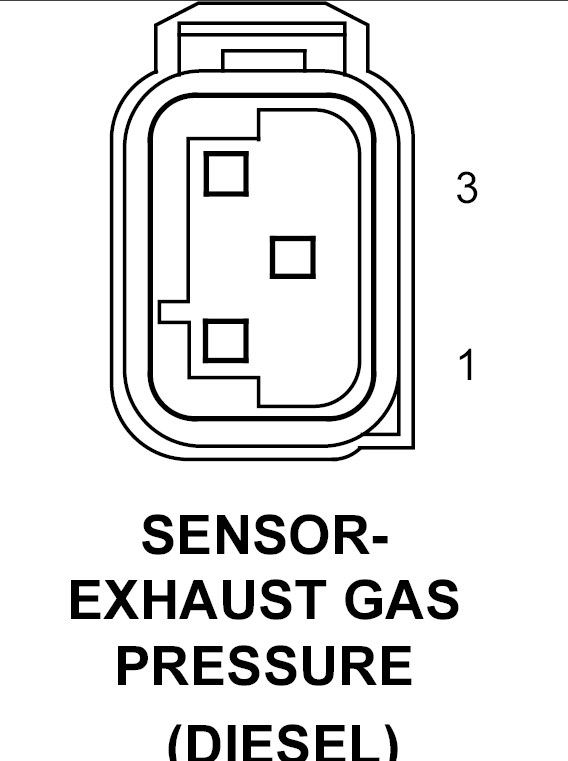

Exhaust Gas Pressure Sensor (Diesel) Connector End View
SENSOR-EXHAUST GAS PRESSURE - 3-WAY(DIESEL)
Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
F858 20GY/YL |
EXHAUST GAS PRESSURE SENSOR 5 VOLT SUPPLY |
| 2 |
K934 20OR |
EXHAUST GAS PRESSURE SENSOR GROUND |
| 3 |
K35 20GY/BK |
EXHAUST GAS PRESSURE SENSOR SIGNAL |
