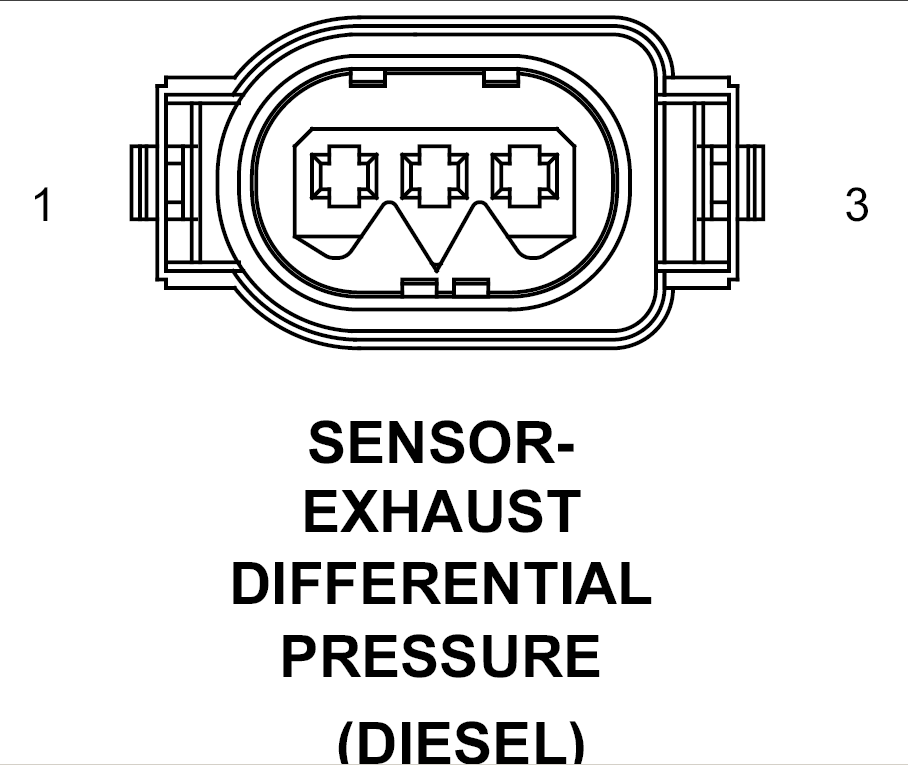

Exhaust Differential Pressure Sensor (Diesel) Connector End View
SENSOR-EXHAUST DIFFERENTIAL PRESSURE - 3-WAY(DIESEL)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K355 20BR/DG |
EXHAUST DIFFERENTIAL PRESSURE SENSOR SIGNAL |
| 2 |
K951 20BR/DB |
EXHAUST DIFFERENTIAL PRESSURE SENSOR GROUND |
| 3 |
K354 20BR/LG |
EXHAUST DIFFERENTIAL PRESSURE SENSOR 5 VOLT SUPPLY |
