EVAP Purge Solenoid Connector End View

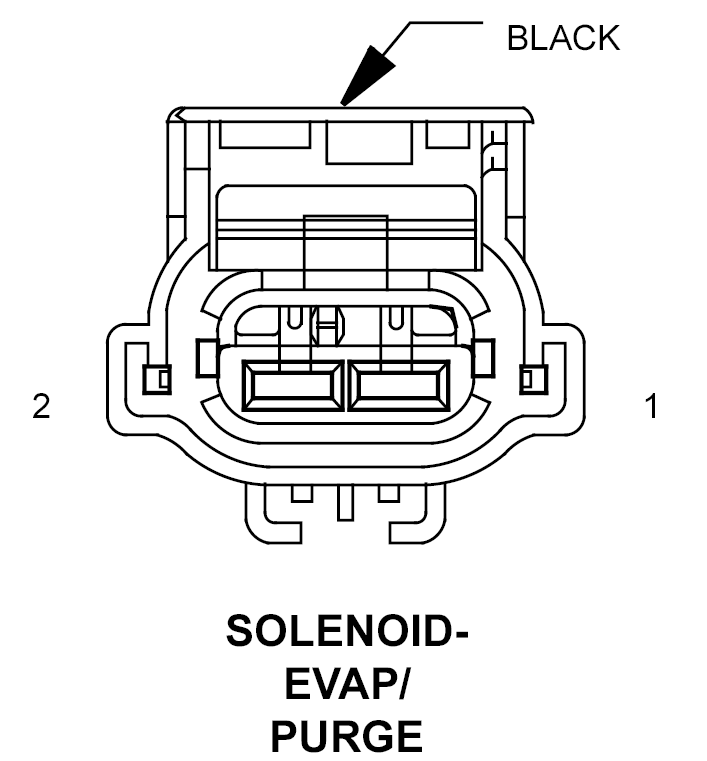

SOLENOID-EVAP/PURGE - BLACK 2-WAY

GXK780393Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 K70 20DB/BR EVAP PURGE SOL CONTROL
2 K52 20DB/YL EVAP PURGE SOL SIGNAL
