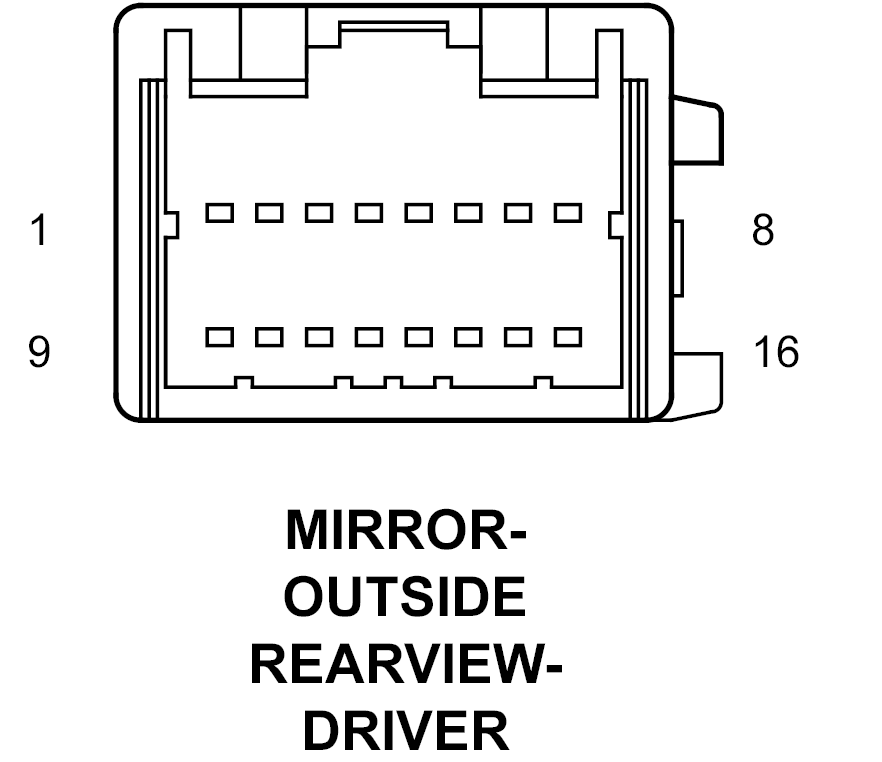

Driver Outside Rearview Mirror Connector End View
MIRROR-OUTSIDE REARVIEW-DRIVER - 16-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | P71 20TN/DG | DRIVER MIRROR VERTICAL DRIVER |
| 2 | P75 20TN/LG | DRIVER MIRROR HORIZONTAL DRIVER |
| 3 | P76 20TN/LB | MIRROR COMMON DRIVER (EXCEPT MEMORY) |
| 3 | P73 20TN/VT | DRIVER MIRROR COMMON DRIVER (MEMORY) |
| 4 | P110 20LB/WT | FOLDING MIRROR RETURN (EXPORT) |
| 5 | P699 20 LG/YL | FOLDING MIRROR CONTROL (EXPORT) |
| 6 | C17 20LB/WT | FUSED REAR WINDOW DEFOGGER RELAY OUTPUT (EXCEPT MEMORY) |
| 6 | C110 20DB/LB | DRIVER MIRROR HEATER DRIVER (MEMORY) |
| 7 | Z911 20BK | GROUND (EXCEPT MEMORY) |
| 7 | C910 20DB/GY | DRIVER MIRROR HEATER RETURN (MEMORY) |
| 8 | P65 20TN/VT | DRIVER MIRROR HORIZONTAL POSITION SIGNAL (MEMORY) |
| 9 | P67 20TN/OR | DRIVER MIRROR VERTICAL POSITION SIGNAL (MEMORY) |
| 10 | P69 20TN/WT | DRIVER MIRROR SENSOR GROUND (MEMORY) |
| 11 | P669 20OR/LG | DRIVER MIRROR SENSOR SUPPLY (MEMORY) |
| 12 | P112 20TN/OR | AUTO DAY/NIGHT MIRROR (+) (MEMORY) |
| 13 | P114 20TN/WT | AUTO DAY/NIGHT MIRROR (-) (MEMORY) |
| 14 | - | - |
| 15 | - | - |
| 16 | - | - |
