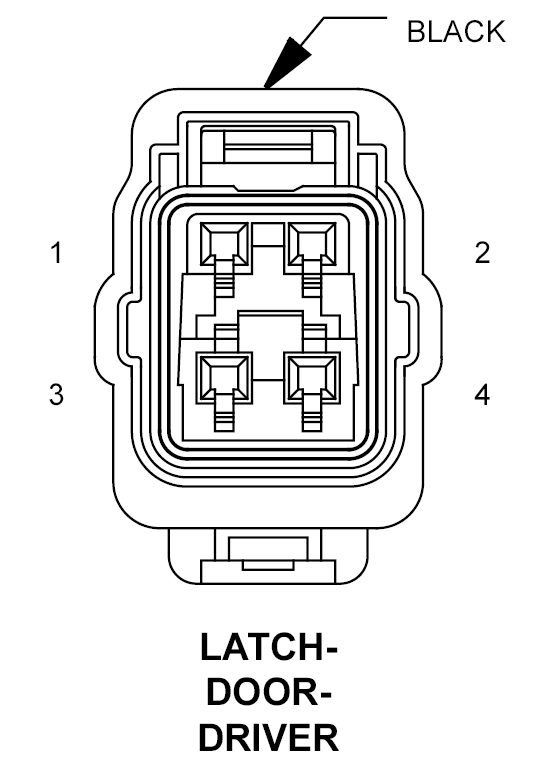

Driver Door Latch Connector End View
LATCH-DOOR-DRIVER - BLACK 4-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
G75 20VT |
LEFT FRONT DOOR AJAR SWITCH SENSE (LHD) |
| 1 |
G74 20VT/WT |
RIGHT FRONT DOOR AJAR SWITCH SENSE (RHD) |
| 2 |
Z911 20BK |
GROUND |
| 3 |
P701 18LG/DG |
DRIVER DOOR UNLOCK RELAY OUTPUT |
| 4 |
P778 18LG/LB |
DOOR LOCK RELAY OUTPUT |
