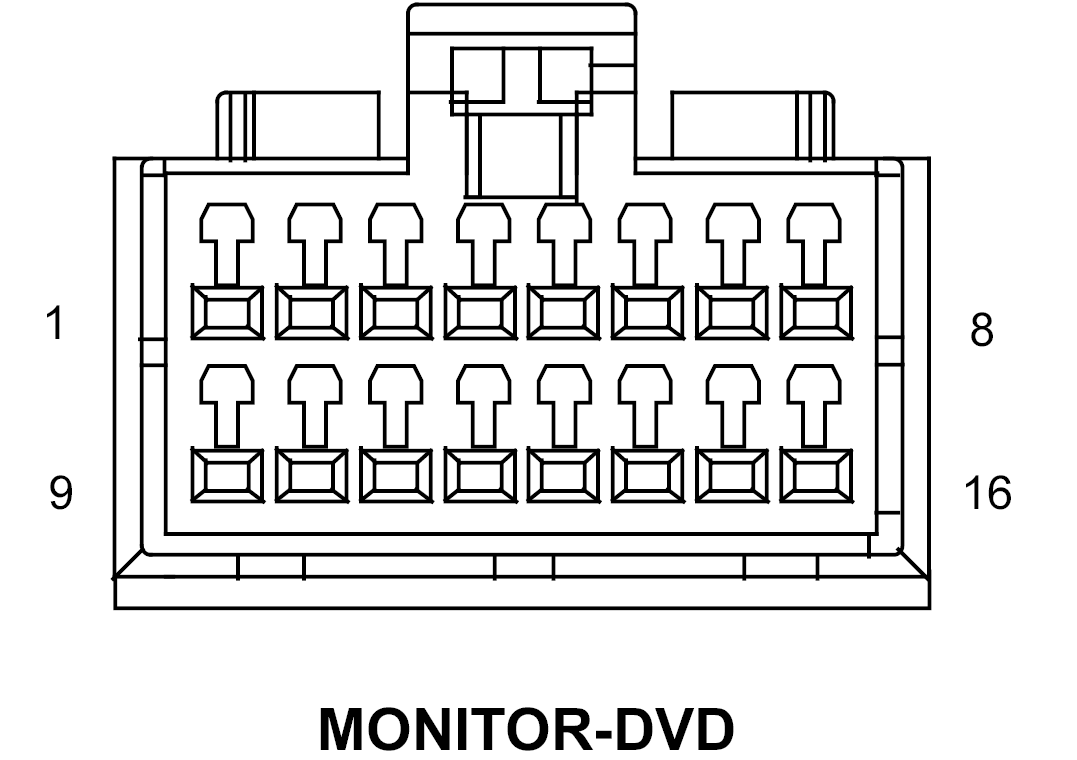

DVD Monitor Connector End View
MONITOR-DVD - 16-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | A114 20GY/RD | FUSED B(+) |
| 2 | X523 20GY/LB | REMOTE CONTROL FUNCTION 1 |
| 3 | D91 20WT/DB | BMM1 ADDRESS BUS |
| 4 | - | - |
| 5 | X965 20GY/BR | I/R AUDIO LEFT |
| 6 | - | - |
| 7 | X915 20LB | VIDEO RETURN |
| 8 | X515 20GY | VIDEO SIGNAL |
| 9 | Z915 18BK | GROUND |
| 10 | X524 20GY/OR | REMOTE CONTROL FUNCTION 2 |
| 11 | D92 20WT | BMM2 ADDRESS BUS |
| 12 | X555 20VT/OR | VIDEO PLAY SIGNAL |
| 13 | X964 20GY/WT | I/R AUDIO RIGHT |
| 14 | X969 20GY/DB | I/R AUDIO RETURN |
| 15 | - | - |
| 16 | X955 20 | SHIELD |
