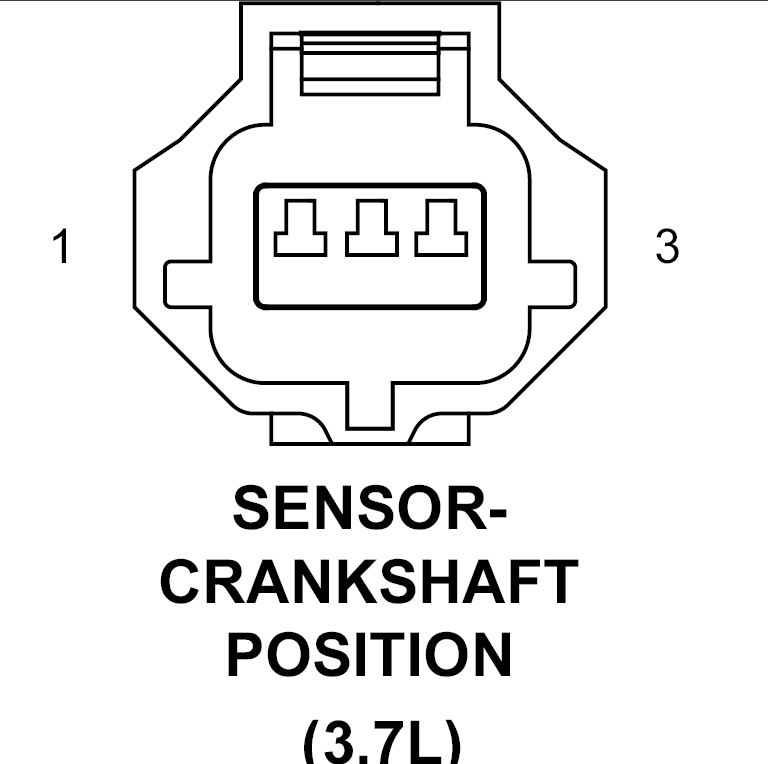

Crankshaft Position Sensor (3.7L) Connector End View

SENSOR-CRANKSHAFT POSITION - 3-WAY(3.7L)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K24 20BR	CKP SIGNAL
2	K900 20DB/DG	SENSOR GROUND
3	F855 20PK/YL	5 VOLT SUPPLY
