Circuit Breaker 3 Connector End View

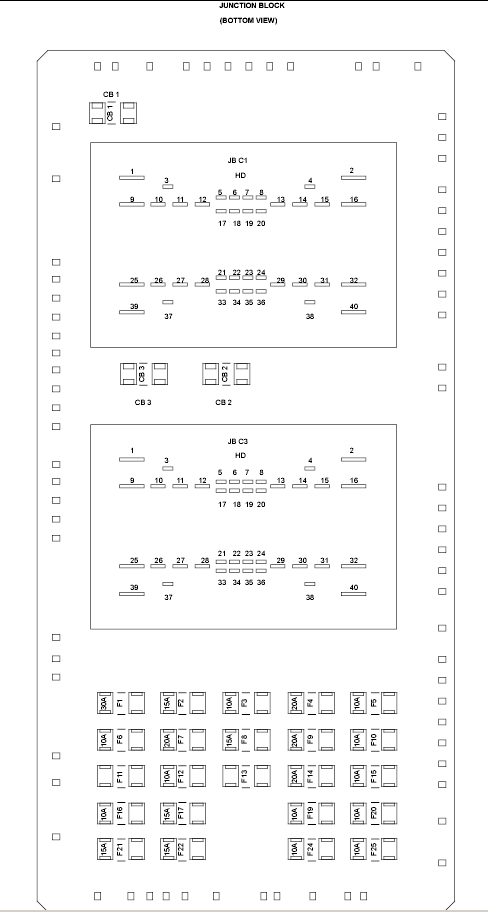

CIRCUIT BREAKER NO. 3 - 2-WAY

GXK780107Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 A139 RUN/ACCESSORY DELAY RELAY OUTPUT
2 A929 FUSED RUN/ACCESSORY DELAY RELAY OUTPUT
