Circuit Breaker 2 Connector End View

CIRCUIT BREAKER NO. 2 - 2-WAY

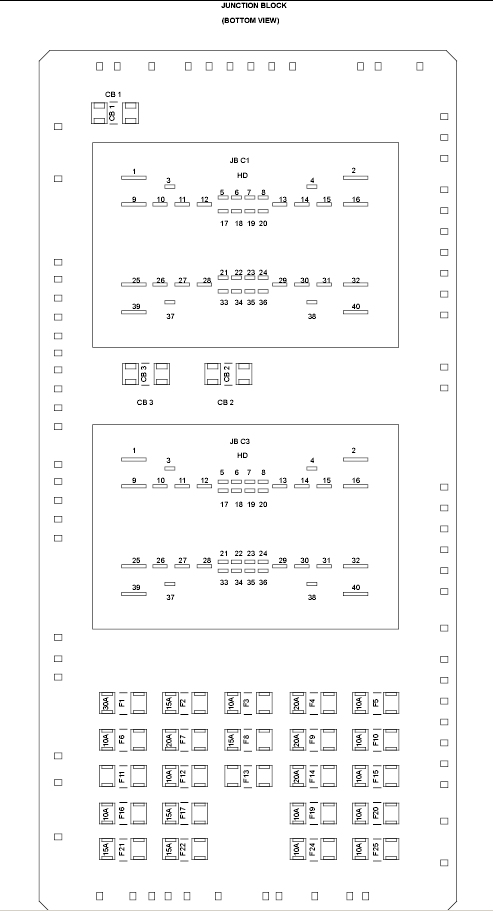

GXK780106Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 A906 FUSED B(+)
2 A33 FUSED B(+)
