Circuit Breaker 1 Connector End View

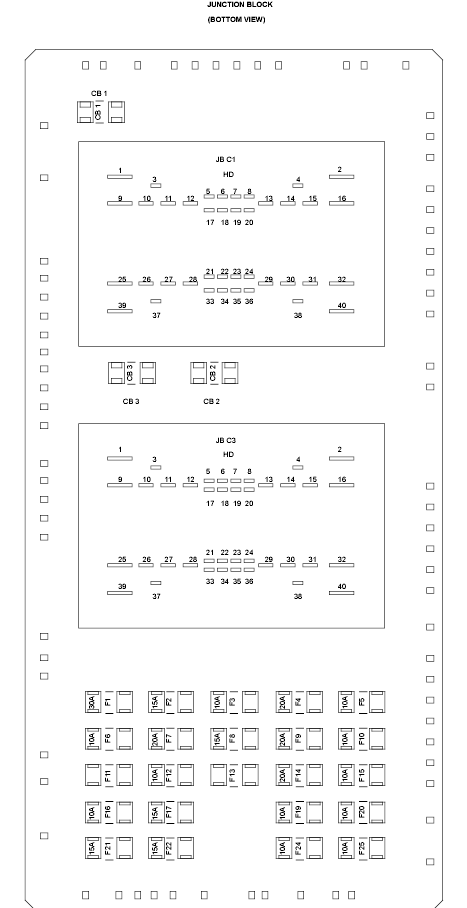

CIRCUIT BREAKER NO. 1 - 2-WAY

GXK780105Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 A901 FUSED B(+)
2 A5 FUSED B(+)
