Cargo Lamp Connector End View

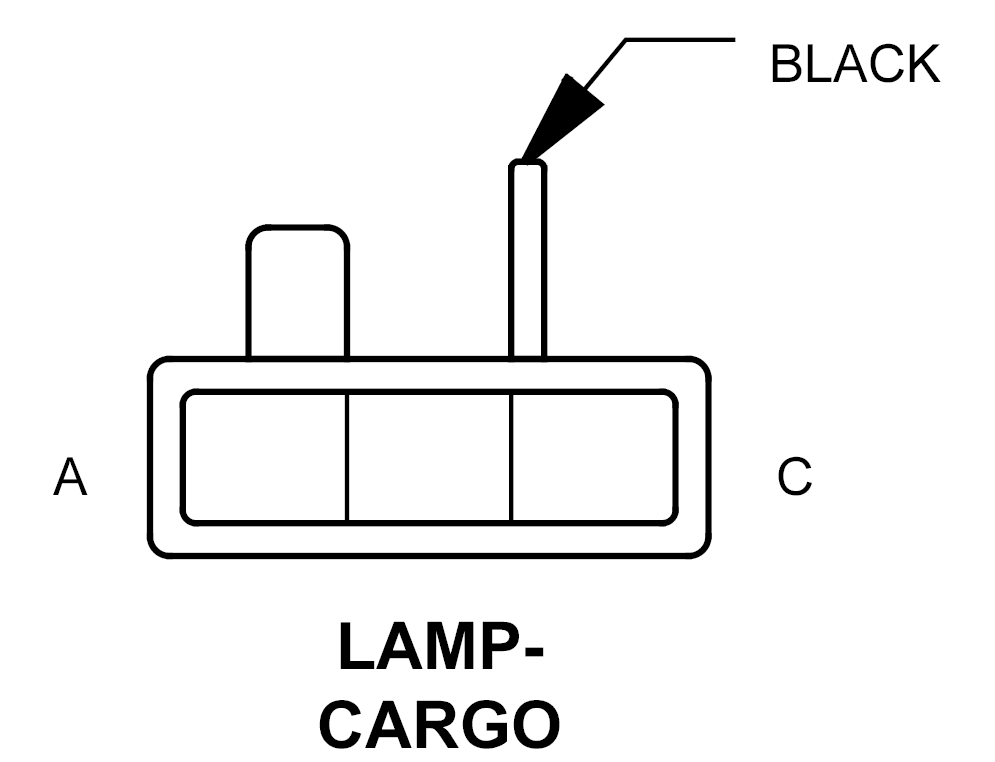

LAMP-CARGO - BLACK 3-WAY

GXK780171Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
A A931 20RD/WT FUSED B(+)
B M22 20YL/OR COURTESY LAMPS DRIVER
C - -
