Camshaft Position Sensor (Gas) Connector End View

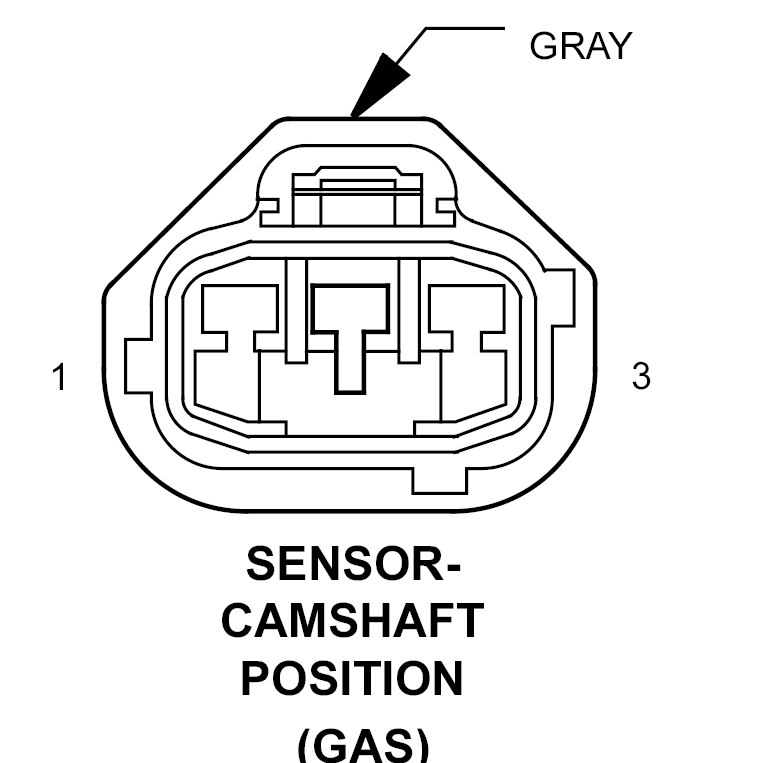

SENSOR-CAMSHAFT POSITION - GRAY 3-WAY(GAS)

GXK780314Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 K44 20GY/DB CMP SIGNAL
2 K900 20DB/DG SENSOR GROUND
3 F856 20YL/PK 5 VOLT SUPPLY
