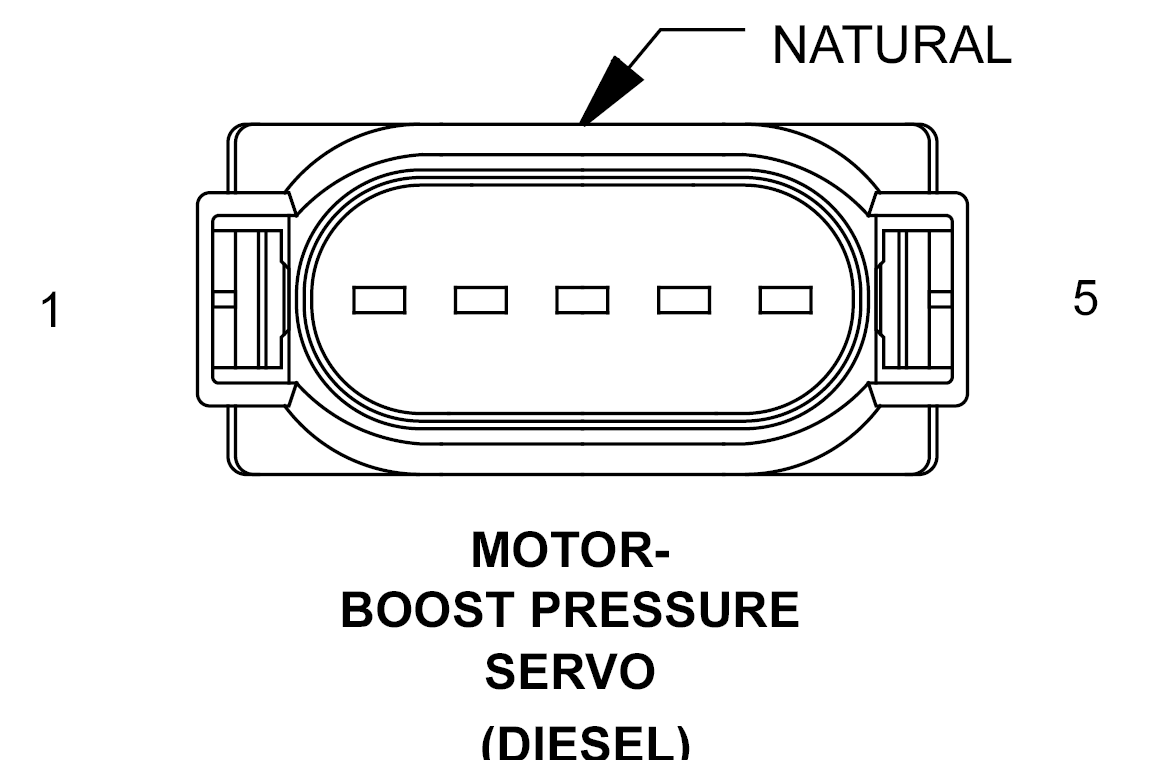

Boost Pressure Servo Motor (Diesel) Connector End View
MOTOR-BOOST PRESSURE SERVO - NATURAL 5-WAY(DIESEL)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
A15 18RD/DG |
FUSED ASD RELAY OUTPUT |
| 2 |
Z42 18BR |
GROUND |
| 3 |
- |
- |
| 4 |
X635 20GY/DG |
BOOST PRESSURE SERVO MOTOR CONTROL |
| 5 |
- |
- |
