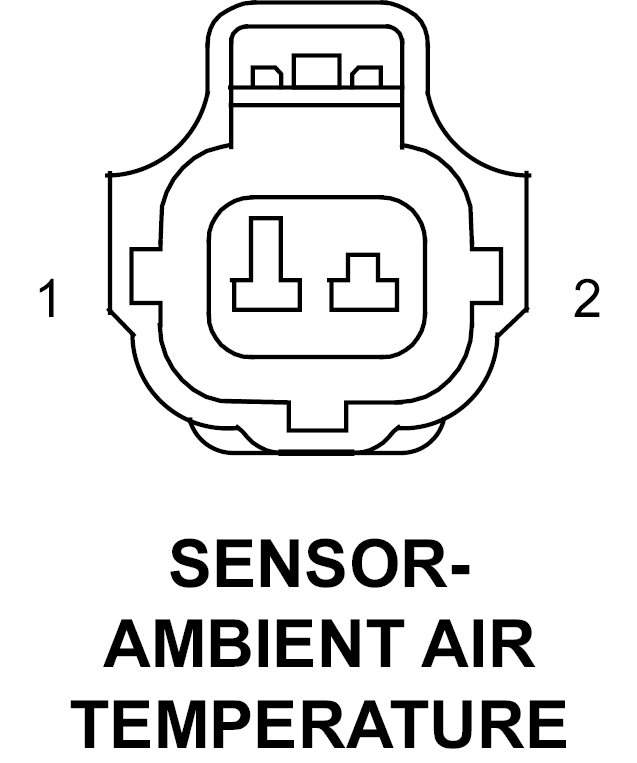

Ambient Air Temperature Sensor Connector End View
Ambient Air Temperature Sensor Connector End View
SENSOR-AMBIENT AIR TEMPERATURE - 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
G931 20VT/BR
SENSOR GROUND
2
G31 20VT/OR
AAT SIGNAL
Courtesy of CHRYSLER CORP.
