A/C Pressure Transducer Connector End View

TRANSDUCER-A/C PRESSURE - GRAY 4-WAY

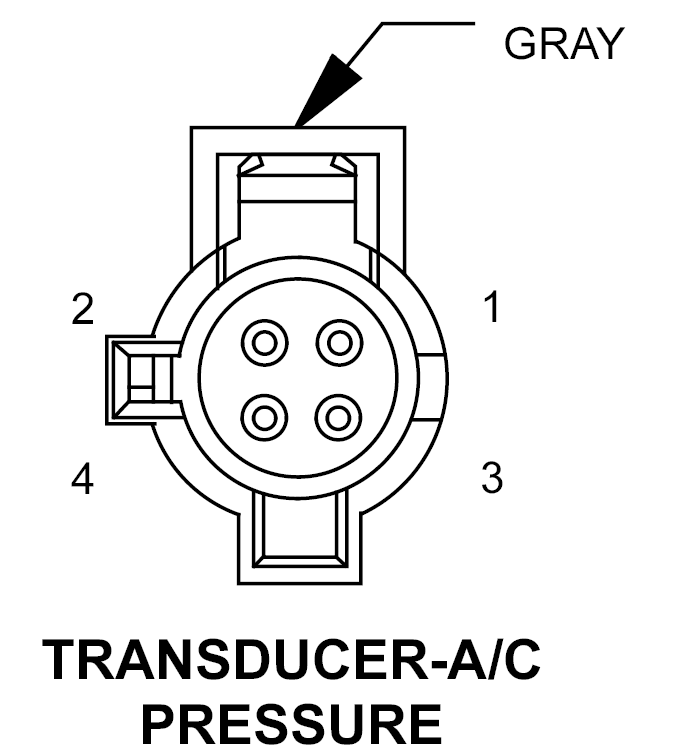

GXK780444Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 C918 20BK/LB FCM SENSOR RETURN
2 F891 20PK/GY 5 VOLT SUPPLY
3 C18 20LB/BR A/C PRESSURE SIGNAL
4 - -
