A/C Compressor Clutch (Diesel) Connector End View

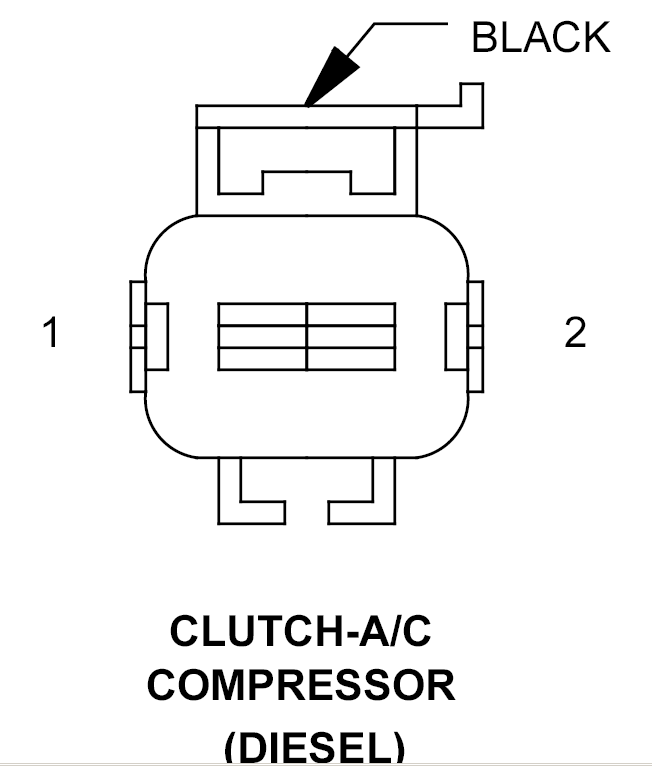

CLUTCH-A/C COMPRESSOR - BLACK 2-WAY(DIESEL)

GXK780111Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 C3 18DB/YL A/C CLUTCH RELAY OUTPUT
2 Z153 18BR GROUND
