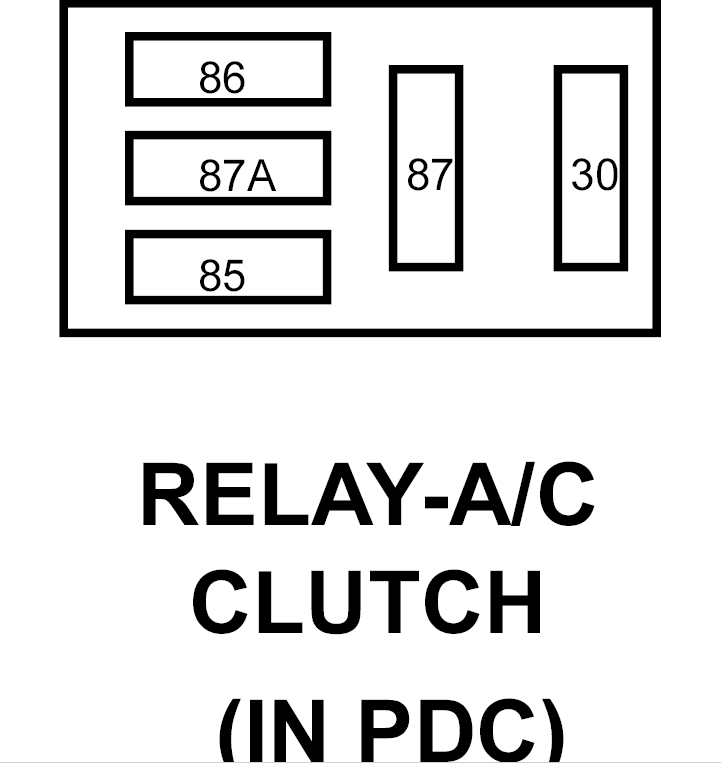

A/C Clutch Relay Connector End View

RELAY-A/C CLUTCH - 0-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
30	A917 18RD/DG	FUSED B(+)
85	C13 20LB/OR	A/C CLUTCH RELAY CONTROL
86	A15 16RD/TN	FUSED ASD RELAY OUTPUT DIESEL
86	F942 20PK/LG	FUSED IGNITION SWITCH OUTPUT (RUN-START) GAS
87	C3 18DB/YL	A/C CLUTCH RELAY OUTPUT
87A	-	-
