Timing Chain Cover

WARNING: This page is about a different variant/trim than selected.

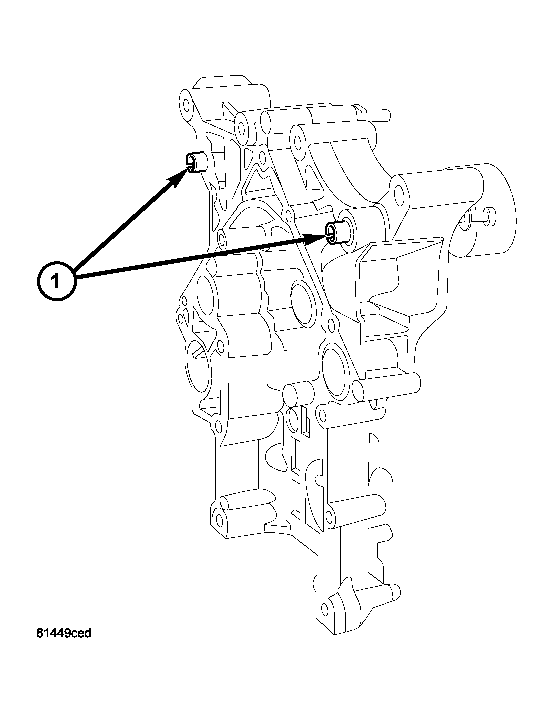

Fig 1: Front Cover Slide Bushings
GC0003967Courtesy of CHRYSLER LLC
  1. Clean timing chain cover and block surface.
    NOTE: Always install a new gasket on timing cover.
  2. Verify that the slide bushings (1) are installed in timing cover.
  3. Install cover and new gasket. Tighten fasteners to 28 N.m (250 in. lbs.).
    NOTE: The large lifting stud is torqued to 55 N.m (40 ft. lbs.).

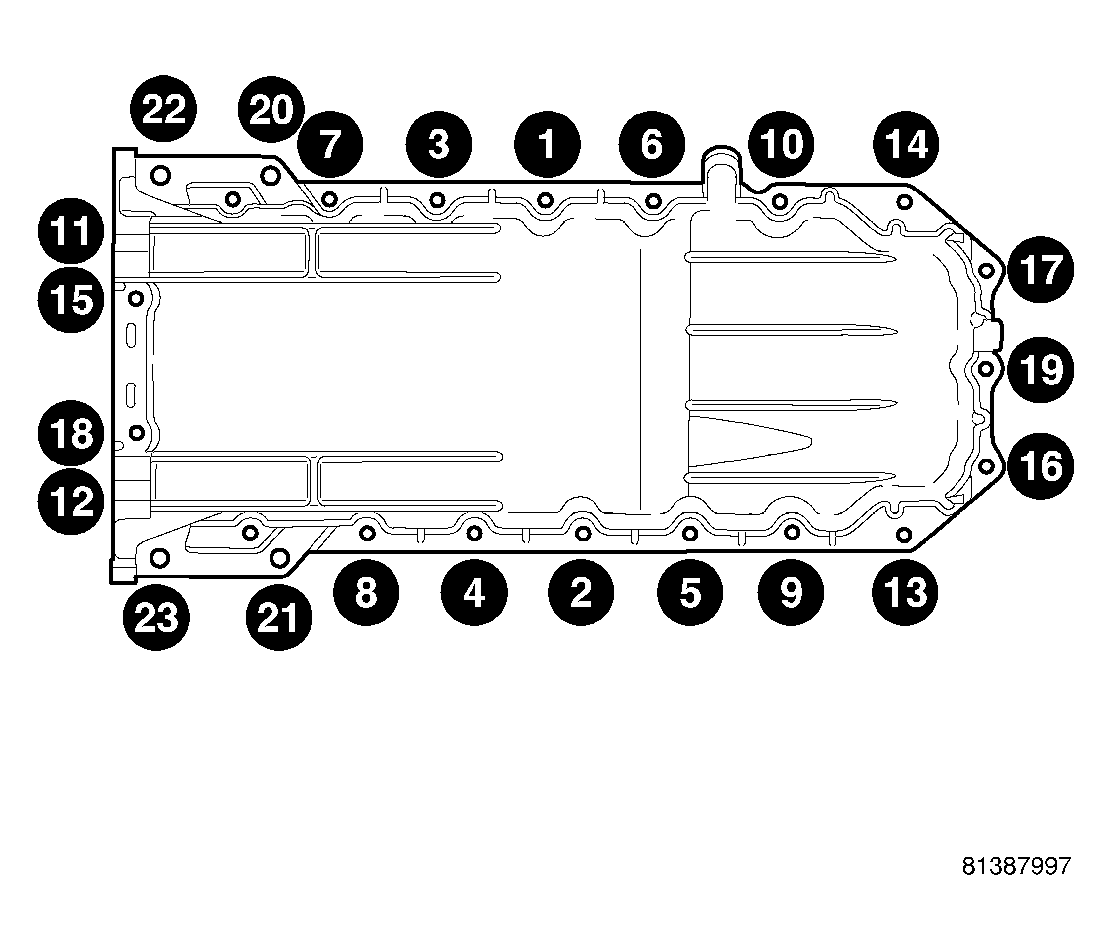

    Fig 2: Oil Pan Torque Sequence
    GC0004016Courtesy of CHRYSLER LLC
  4. Install the oil pan and pick up tube. See INSTALLATION .
  5. Install the A/C compressor.
  6. Install the generator.
  7. Install power steering pump.
  8. Install the dipstick support bolt.
  9. Install the thermostat housing.
  10. Install crankshaft damper. See INSTALLATION .
  11. Install accessory drive belt tensioner assembly and both idler pulleys.

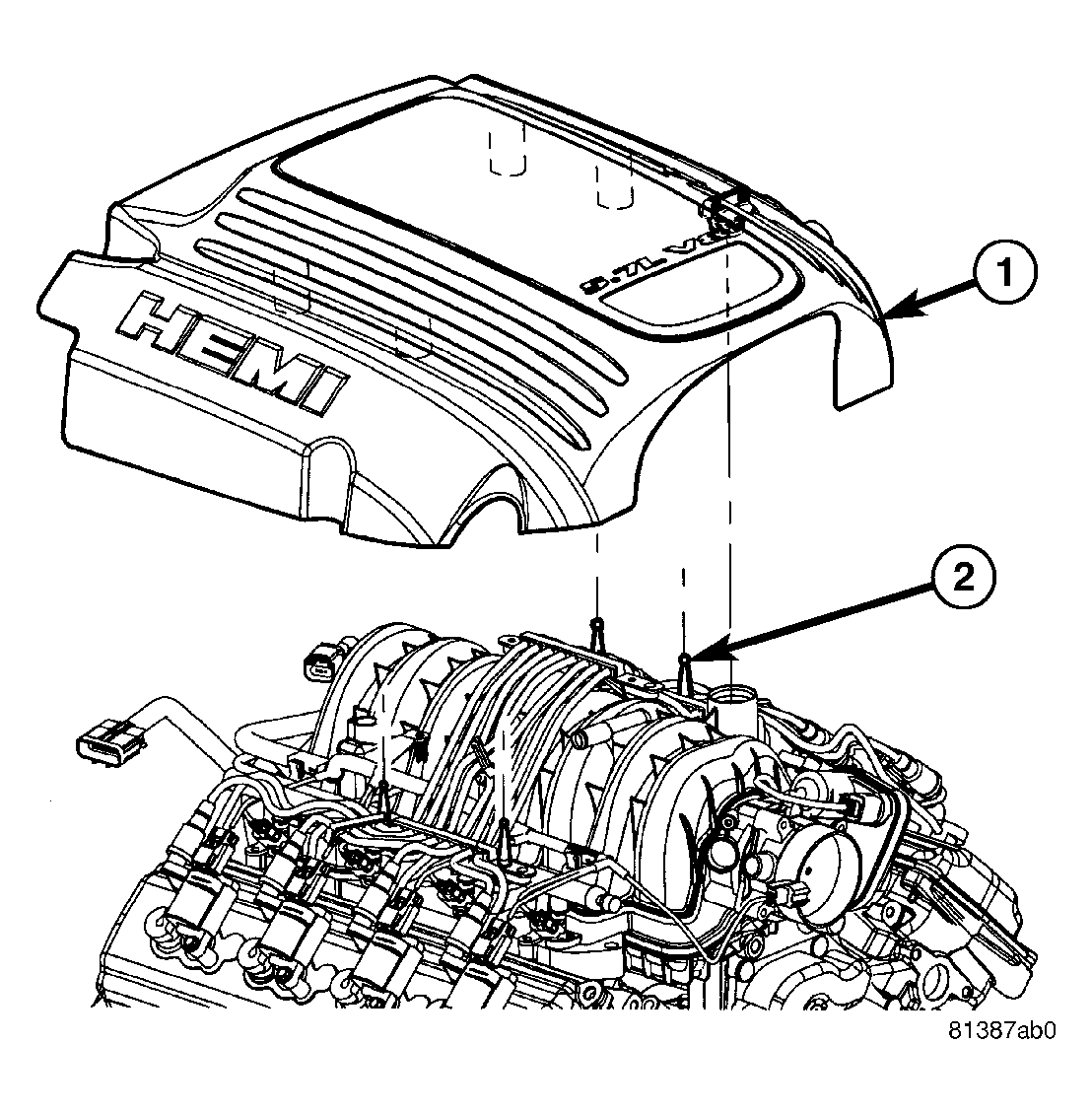

    Fig 3: Engine Cover
    GC0004015Courtesy of CHRYSLER LLC
    1 - Engine Cover
    2 - Attaching Studs
  12. Install radiator lower hose.
  13. Install both heater hoses.
  14. Install radiator fan shroud.
  15. Install the cooling fan.
  16. Install the accessory drive belt.
  17. Install the coolant bottle and washer bottle.
  18. Install the upper radiator hose.
  19. Install the air cleaner assembly.
  20. Fill cooling system.
  21. Refill engine oil.
  22. Connect the battery negative cable.
  23. Install the engine cover (1).
