5.7L Engine

WARNING: This page is about a different variant/trim than selected.

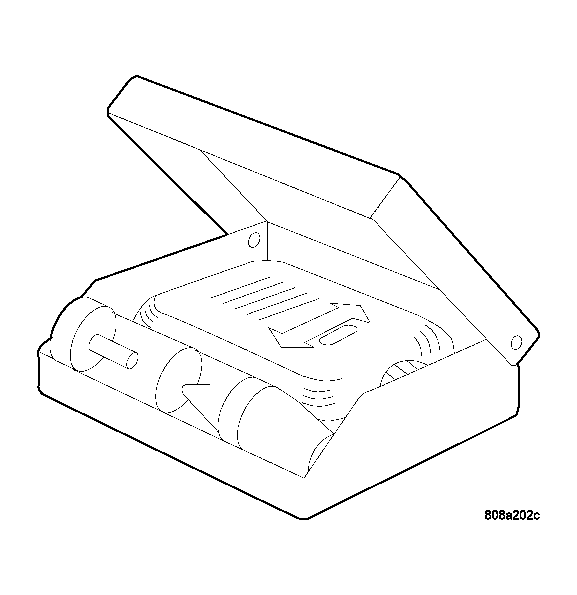

Fig 1: Bloc-Chek-Kit C-3685-A

GC0003780

Courtesy of CHRYSLER LLC

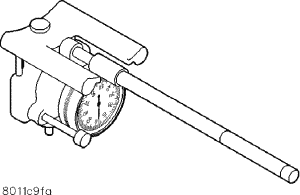

Fig 2: Bore Size Indicator C-119

GC0003776

Courtesy of CHRYSLER LLC

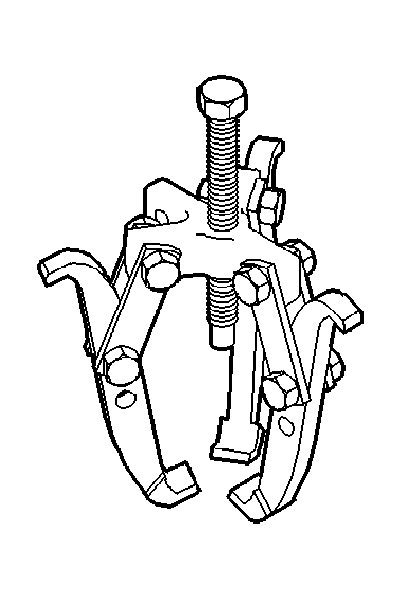

Fig 3: Puller 1023

GC0001755

Courtesy of CHRYSLER LLC

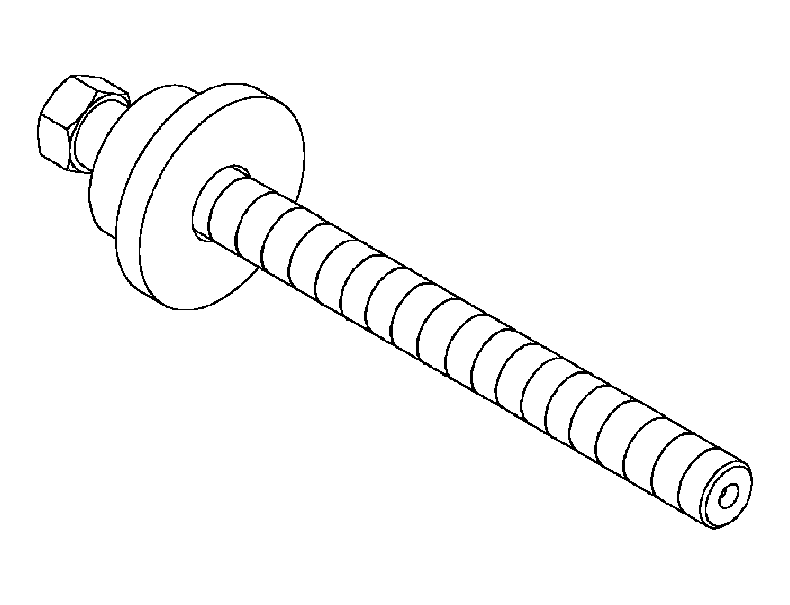

Fig 4: Crankshaft Damper Installer 8512

GC0003767

Courtesy of CHRYSLER LLC

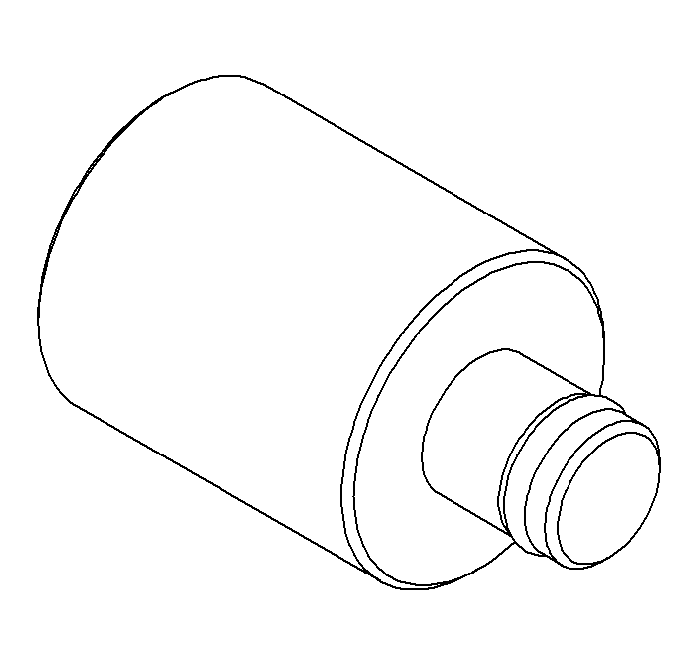

Fig 5: Crankshaft Damper Remover Insert - 8513-A

GC0004030

Courtesy of CHRYSLER LLC

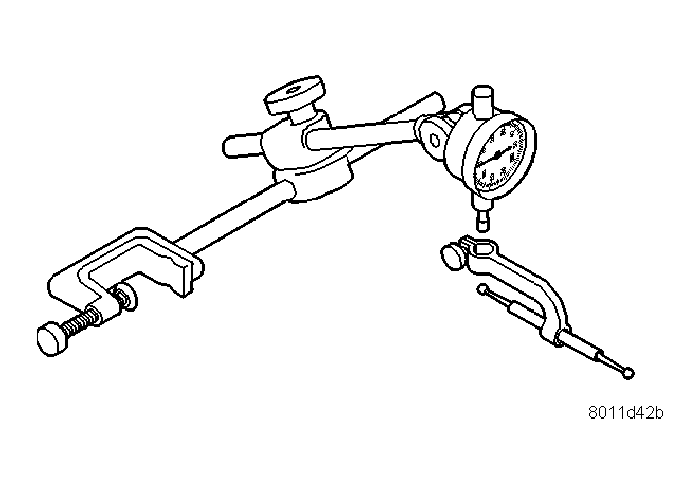

Fig 6: Dial Indicator C-3339

GC0001613

Courtesy of CHRYSLER LLC

Fig 7: Universal Driver Handle - C4171

GC0001616

Courtesy of CHRYSLER LLC

Fig 8: Oil Pressure Gauge C-3292

GC0003777

Courtesy of CHRYSLER LLC

Fig 9: Piston Ring Compressor C-385

GC0003778

Courtesy of CHRYSLER LLC

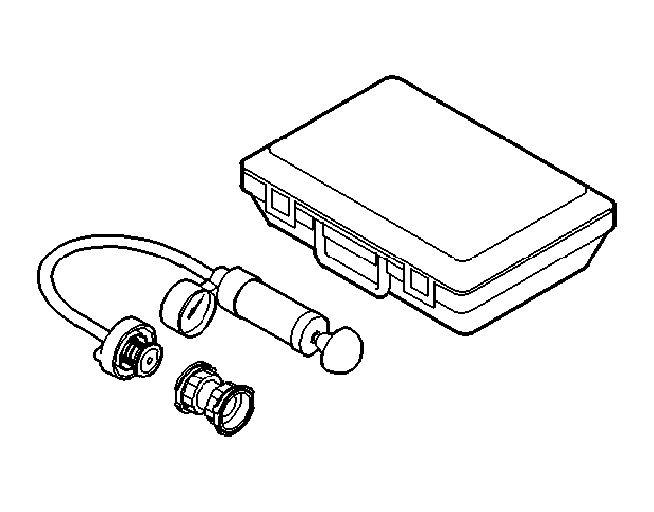

Fig 10: Cooling System Tester 7700

GC0003779

Courtesy of CHRYSLER LLC

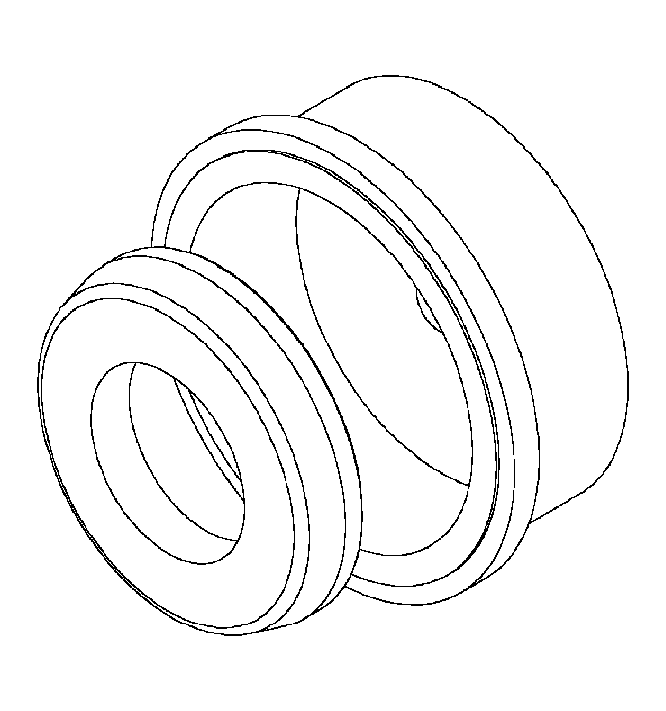

Fig 11: Rear Crankshaft Seal Installer 8349

GC0003764

Courtesy of CHRYSLER LLC

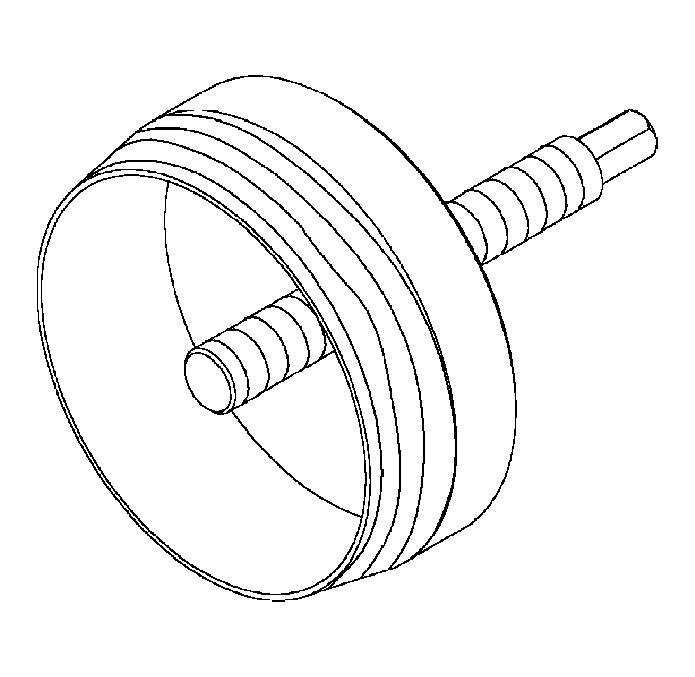

Fig 12: Rear Crankshaft Seal Remover 8506

GC0003765

Courtesy of CHRYSLER LLC

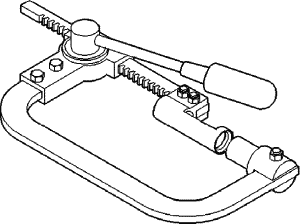

Fig 13: Valve Spring Compressor

GC0003775

Courtesy of CHRYSLER LLC

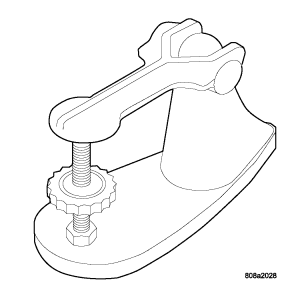

Fig 14: Valve Spring Tester C-647

GC0003774

Courtesy of CHRYSLER LLC

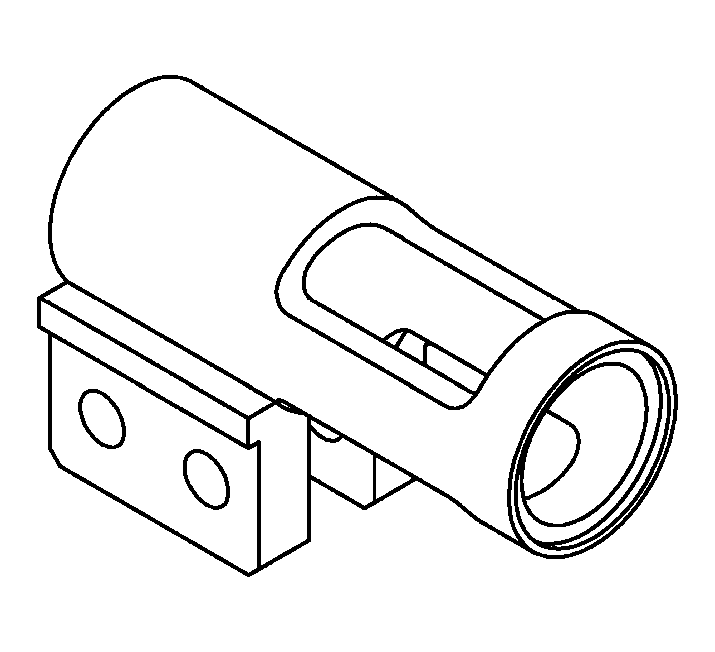

Fig 15: Adapter, Valve Spring Compressor Off-Vehicle 8464

GC0004029

Courtesy of CHRYSLER LLC

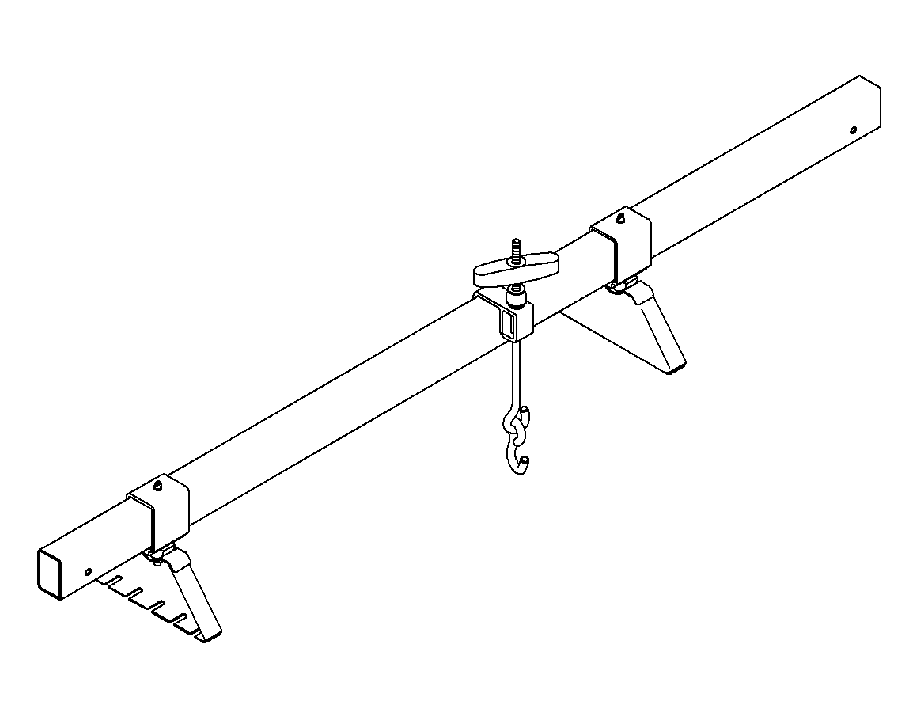

Fig 16: Engine Support Fixture 8534

GC0004026

Courtesy of CHRYSLER LLC

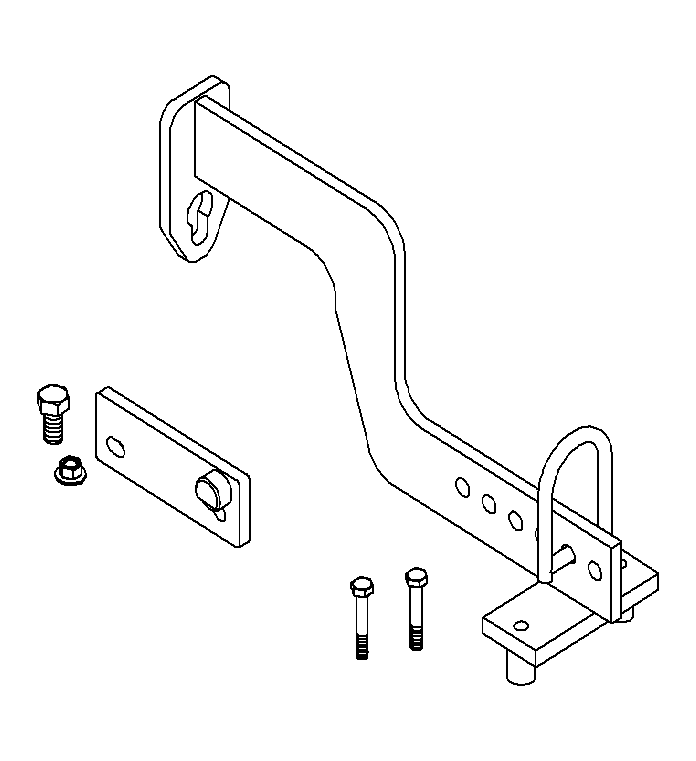

Fig 17: Engine Lift Fixture & Adapter

GC0015503

Courtesy of CHRYSLER LLC

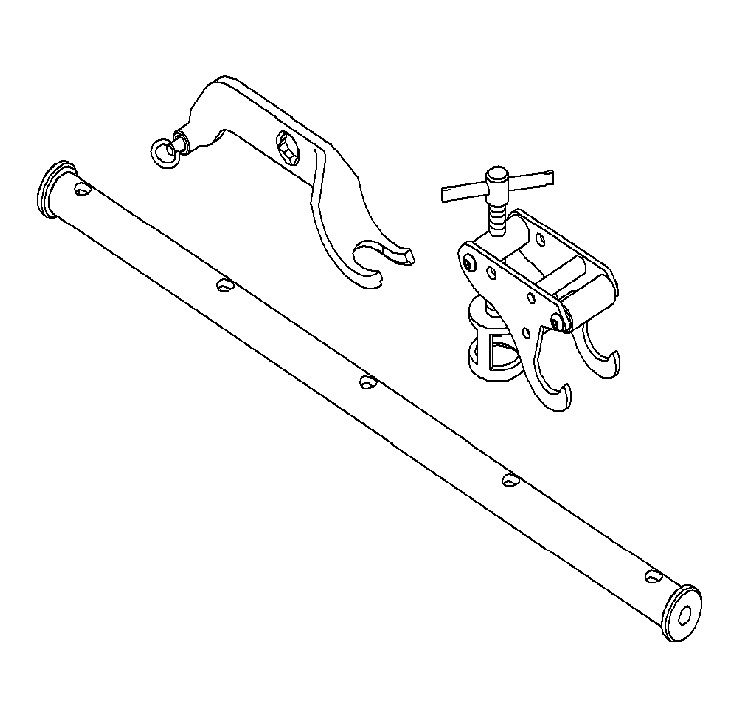

Fig 18: Valve Spring Compressor 9065A

GC0015504

Courtesy of CHRYSLER LLC

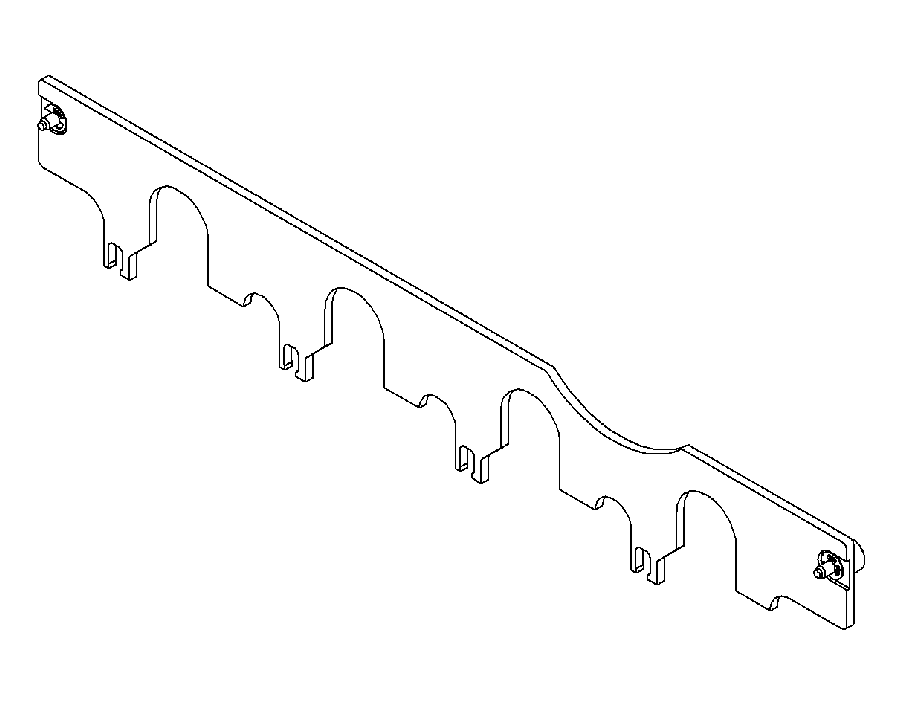

Fig 19: Pushrod Retaining Plate - 9070

GC0004032

Courtesy of CHRYSLER LLC

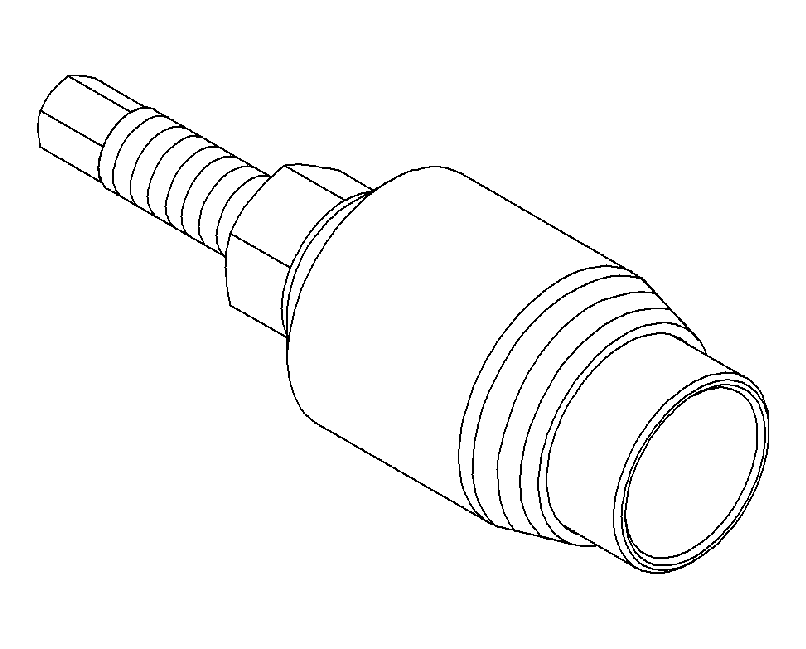

Fig 20: Front Crank Seal Remover - 9071

GC0004034

Courtesy of CHRYSLER LLC

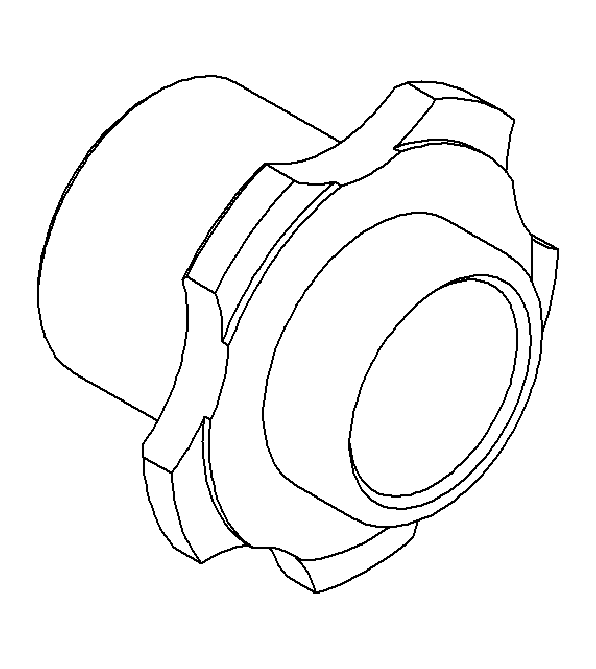

Fig 21: Front Crank Seal Installer 9072

GC0004033

Courtesy of CHRYSLER LLC
