Installation - Engine

WARNING: This page is about a different variant/trim than selected.

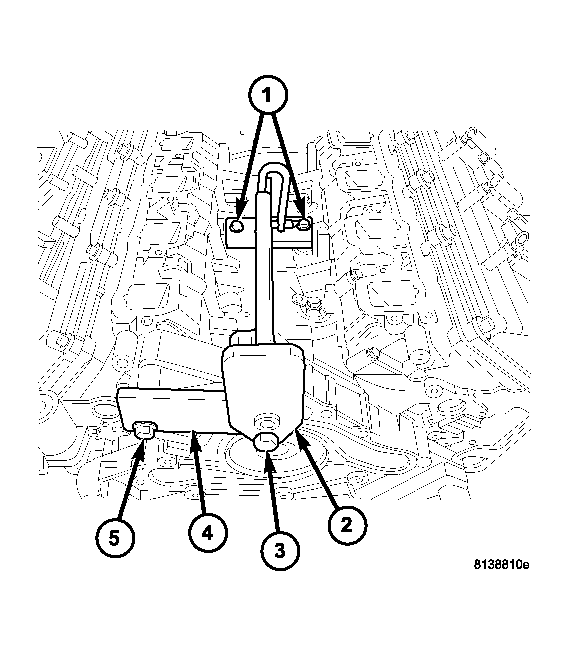

Fig 1: Engine Lift Fixture And Adapter

Courtesy of CHRYSLER LLC

1 - Bolts

2 - Engine Lift Fixture

3 - Adapter Bolt

4 - Adapter

5 - Adapter Nut

Install engine lift fixture Special tool # 8984 and 8984-UPD.
Position the engine in the engine compartment.
Lower engine into compartment and align engine with transmission.

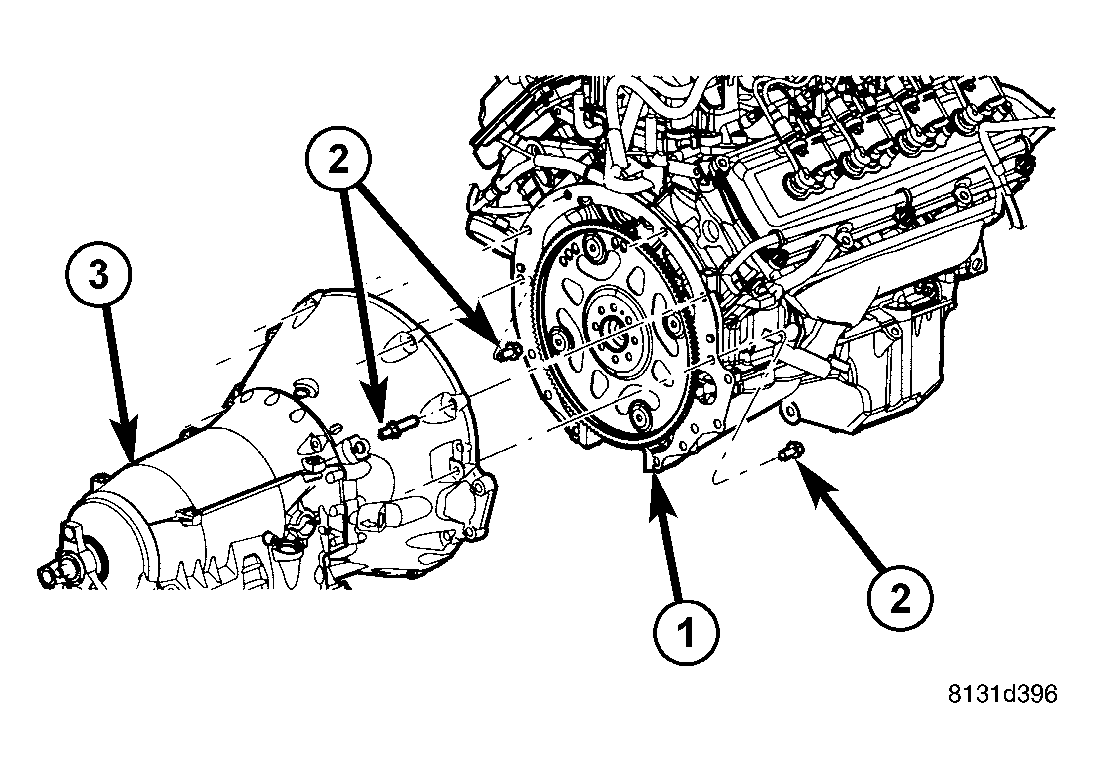

Fig 2: Remove/Install Transmission to Engine Bolts
Courtesy of CHRYSLER LLC

1 - ENGINE

2 - BOLTS

3 - TRANSMISSION
Mate engine (1) and transmission (3) and install two transmission to engine block mounting bolts (2) finger tight.

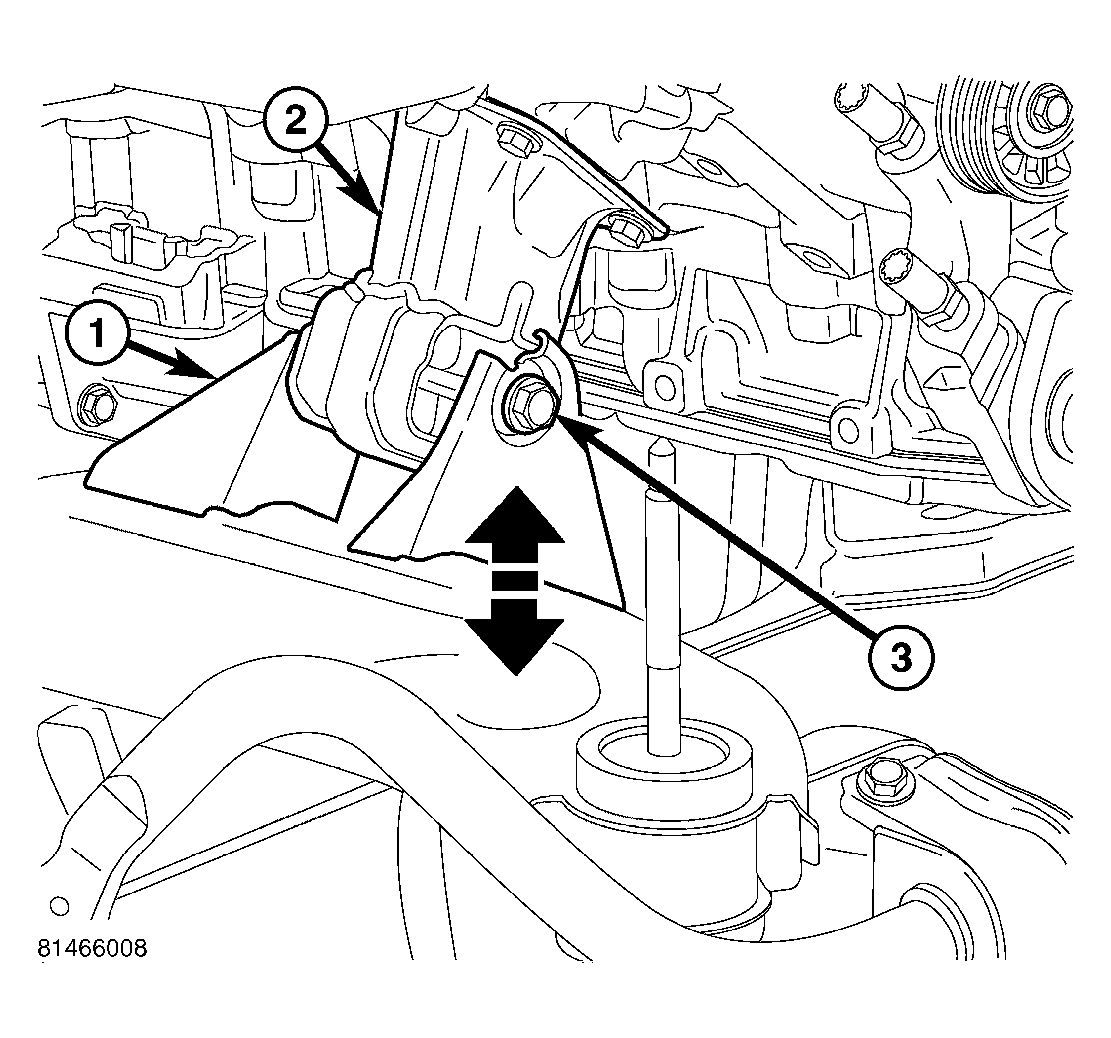

Fig 3: Engine Mount Bolt
Courtesy of CHRYSLER LLC
Lower engine assembly until the engine mounts (2) rests in frame perches (1).

Fig 4: Remove/Install Transmission to Engine Bolts
Courtesy of CHRYSLER LLC

1 - ENGINE

2 - BOLTS

3 - TRANSMISSION

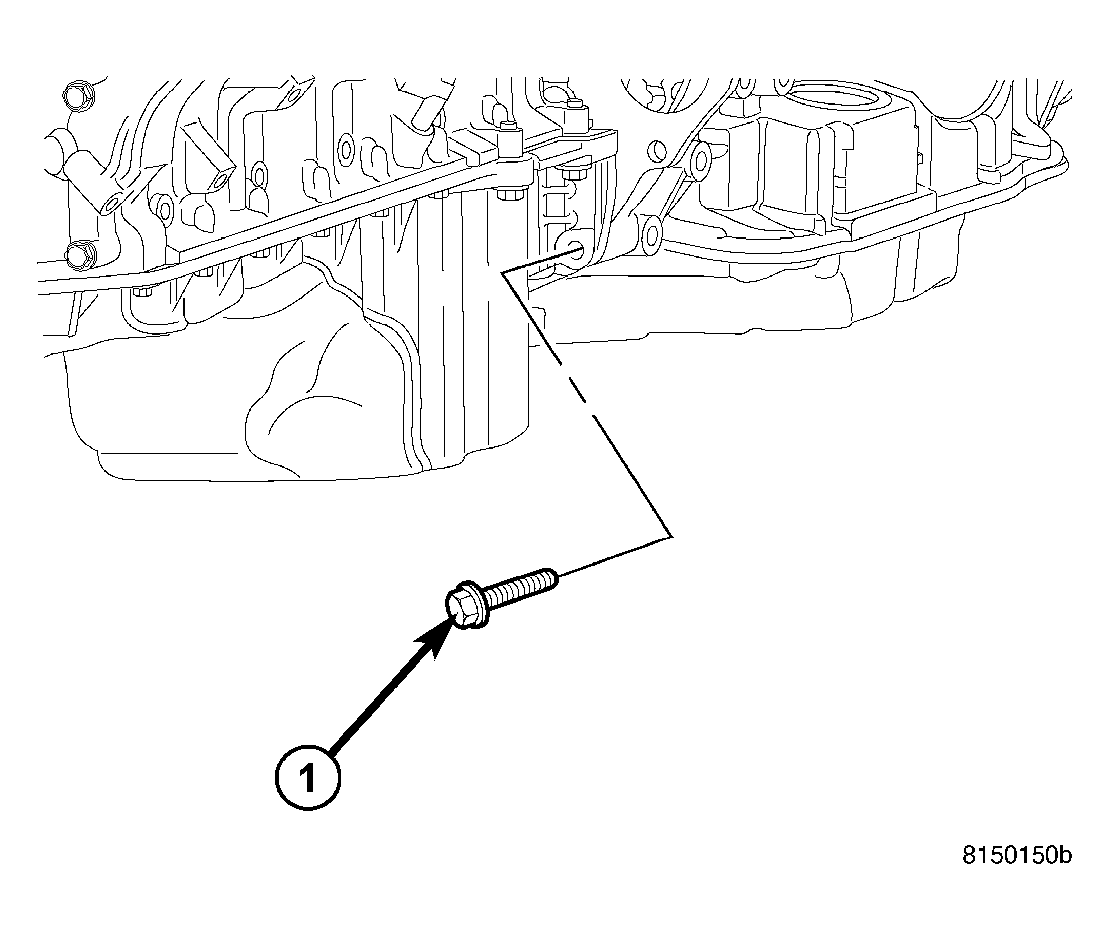

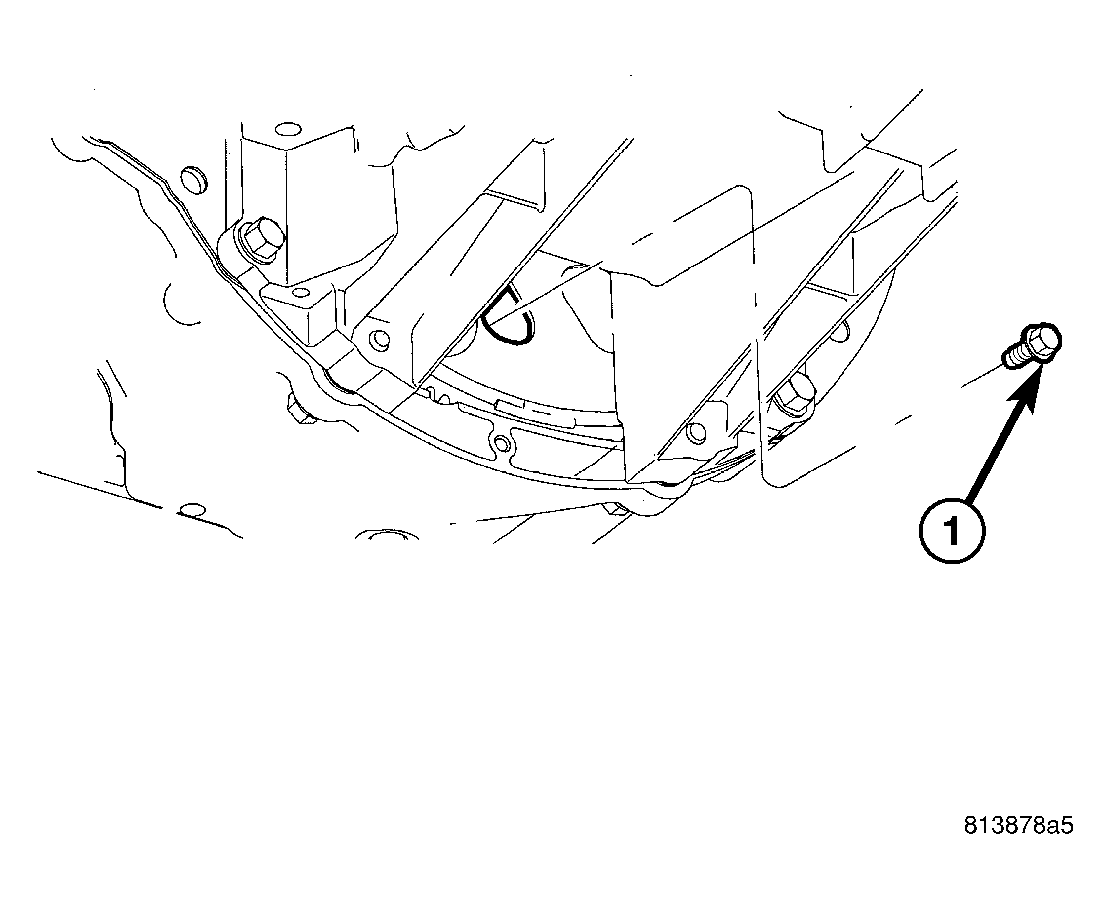

Fig 5: Removing/Installing Oil Pan To Transmission Bolts
Courtesy of CHRYSLER LLC

1 - BOLTS
Install remaining transmission to engine block mounting bolts (2) and the oil pan to transmission bolts (1) and tighten.

Fig 6: Engine Mount Bolt
Courtesy of CHRYSLER LLC
Install and tighten engine mount to frame bolts (3) and nuts.

Fig 7: Torque Converter Bolts
Courtesy of CHRYSLER LLC

1 - Bolts
Install drive plate to torque converter bolts (1).

Fig 8: Structural Dust Cover
Courtesy of CHRYSLER LLC

1 - STRUCTURAL COVER

2 - BOLTS
Install the structural dust cover (1).

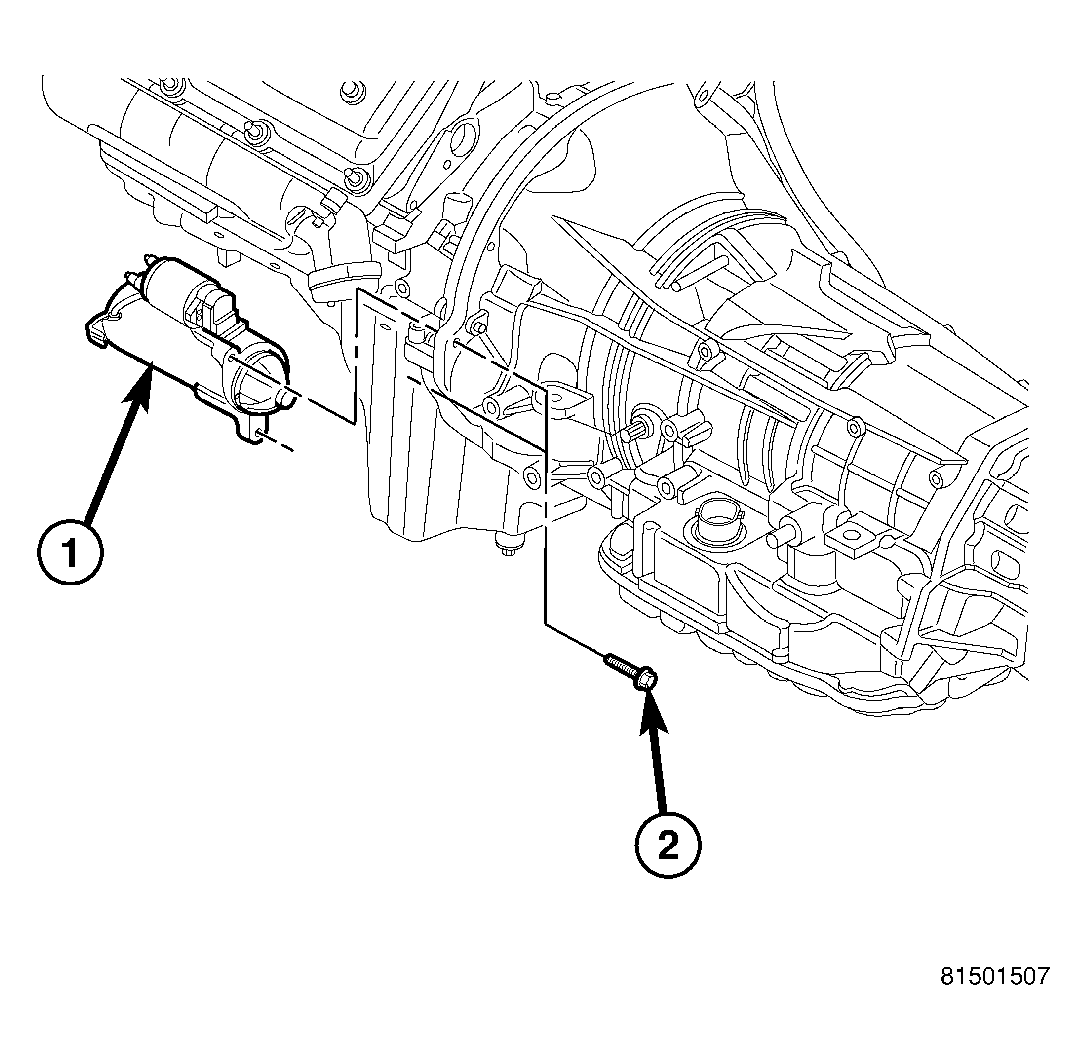

Fig 9: Starter - 5.7L
Courtesy of CHRYSLER LLC
Install the starter (1) and connect the starter wires. Refer to INSTALLATION .
Install exhaust pipe to manifold.

Lower the vehicle.

Fig 10: Engine Lift Fixture And Adapter

Courtesy of CHRYSLER LLC

1 - Bolts

2 - Engine Lift Fixture

3 - Adapter Bolt

4 - Adapter

5 - Adapter Nut

Remove engine lift fixture (2), special tool # 8984 and 8984-UPD.

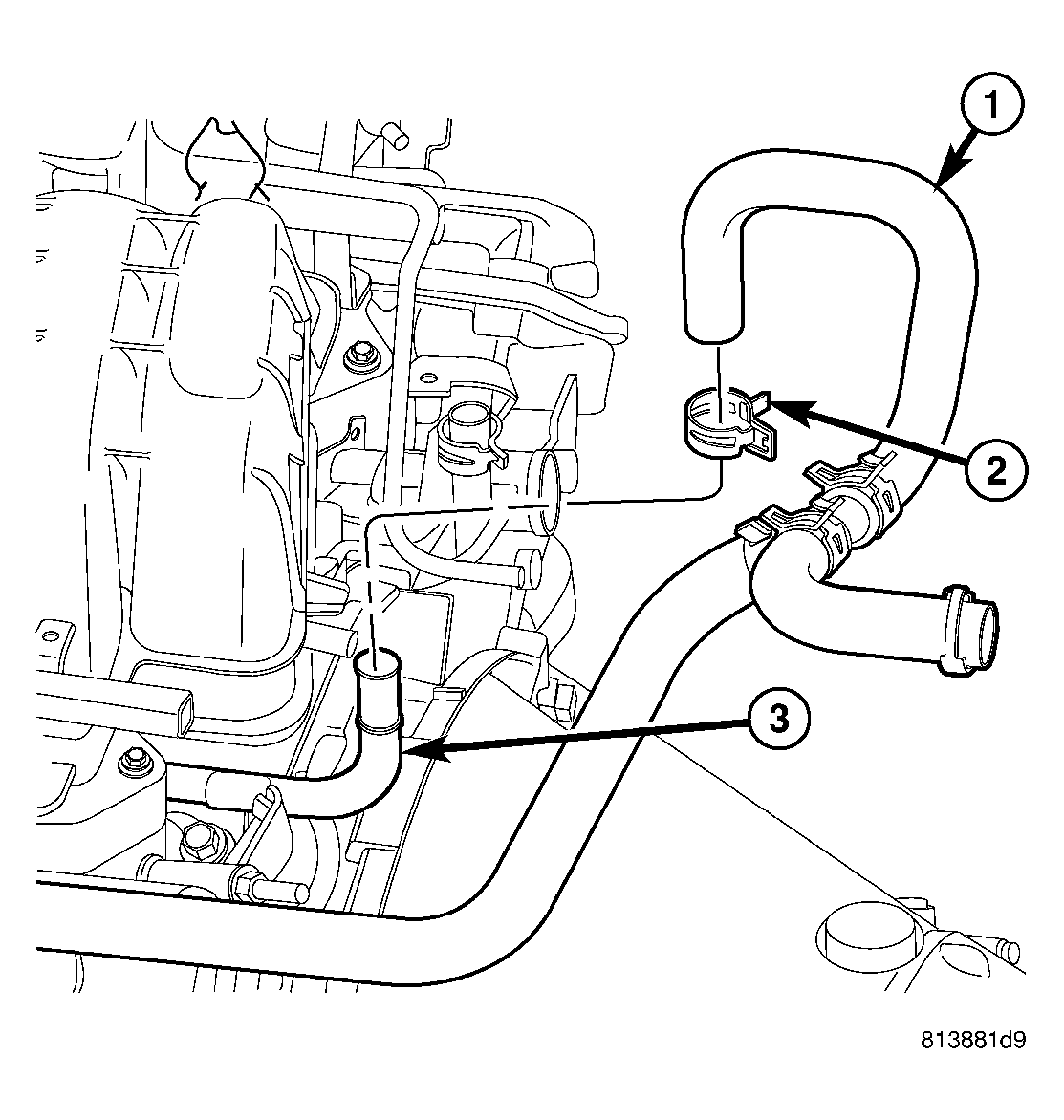

Fig 11: Heater Hose Return
Courtesy of CHRYSLER LLC

1 - Heater Hose

2 - Clamp

3 - Tube

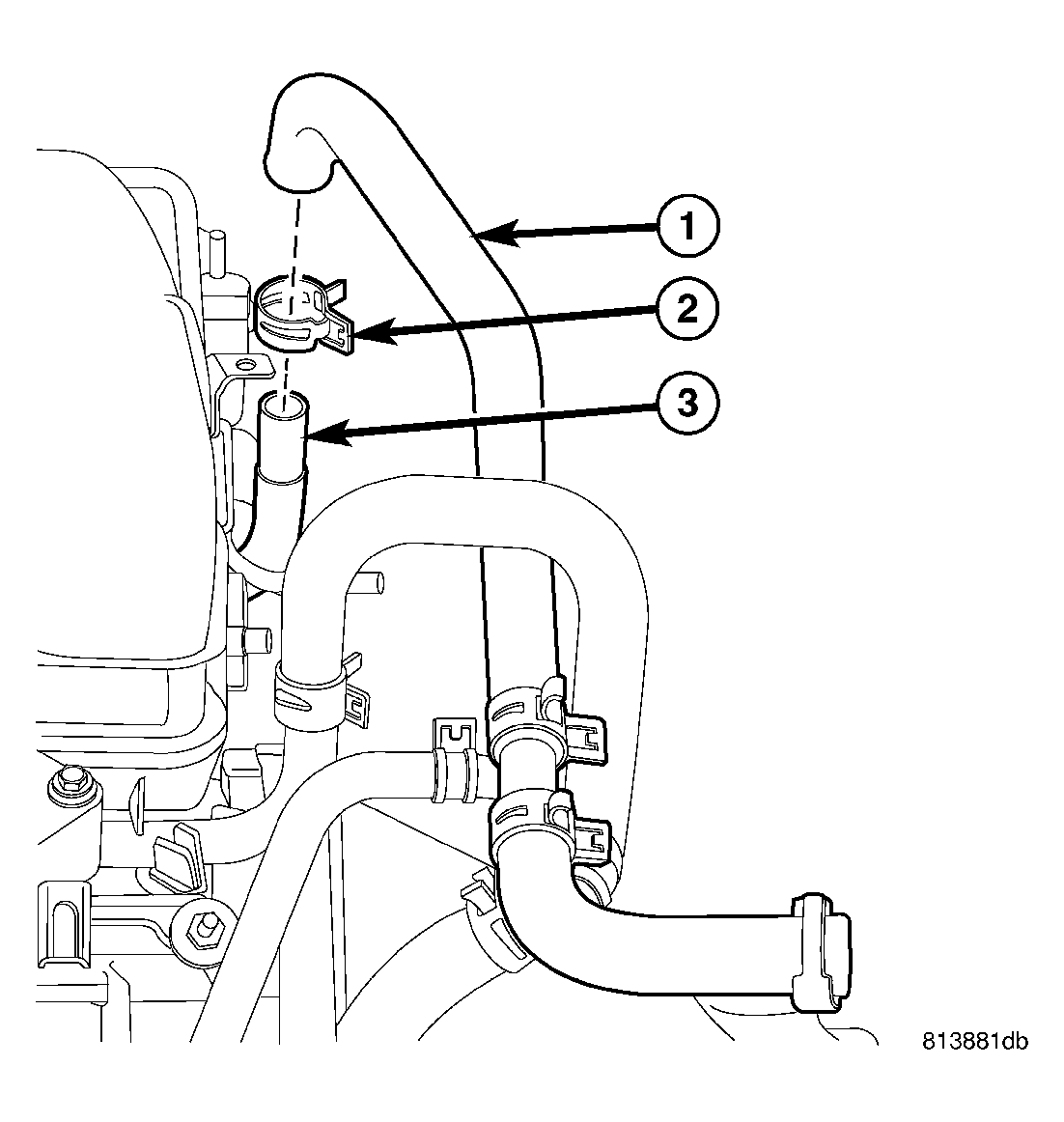

Fig 12: Heater Supply Hose
Courtesy of CHRYSLER LLC

1 - Heater Hose

2 - Clamp

3 - Tube
Connect the fuel supply line. Refer to STANDARD PROCEDURE .
Reinstall the power steering pump.
Connect the heater hoses (1).

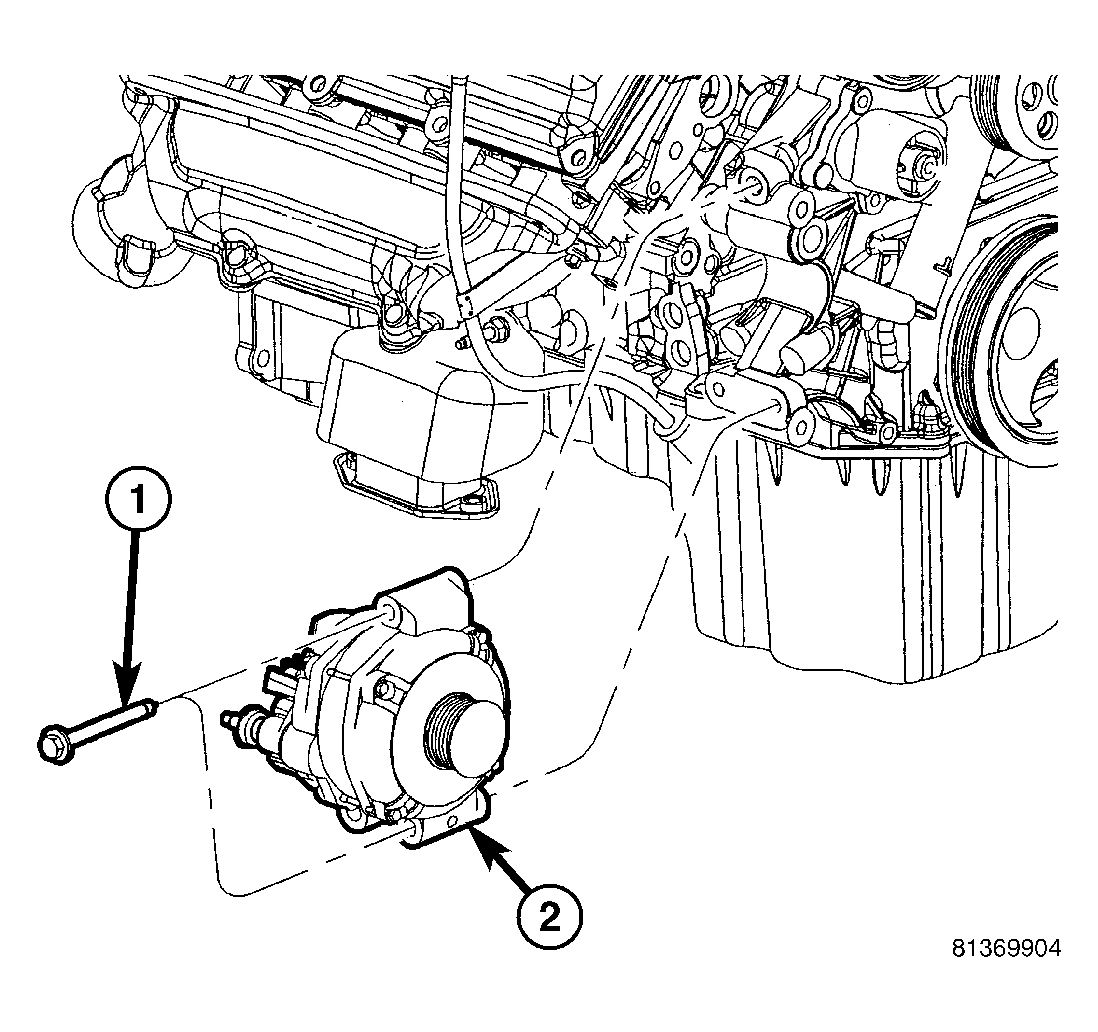

Fig 13: Generator Mounting - 5.7L
Courtesy of CHRYSLER LLC
Reconnect the ground wires to the rear of each cylinder head.
Install the intake manifold. See INSTALLATION .
Install the generator (2), and wire connections. Refer to INSTALLATION .

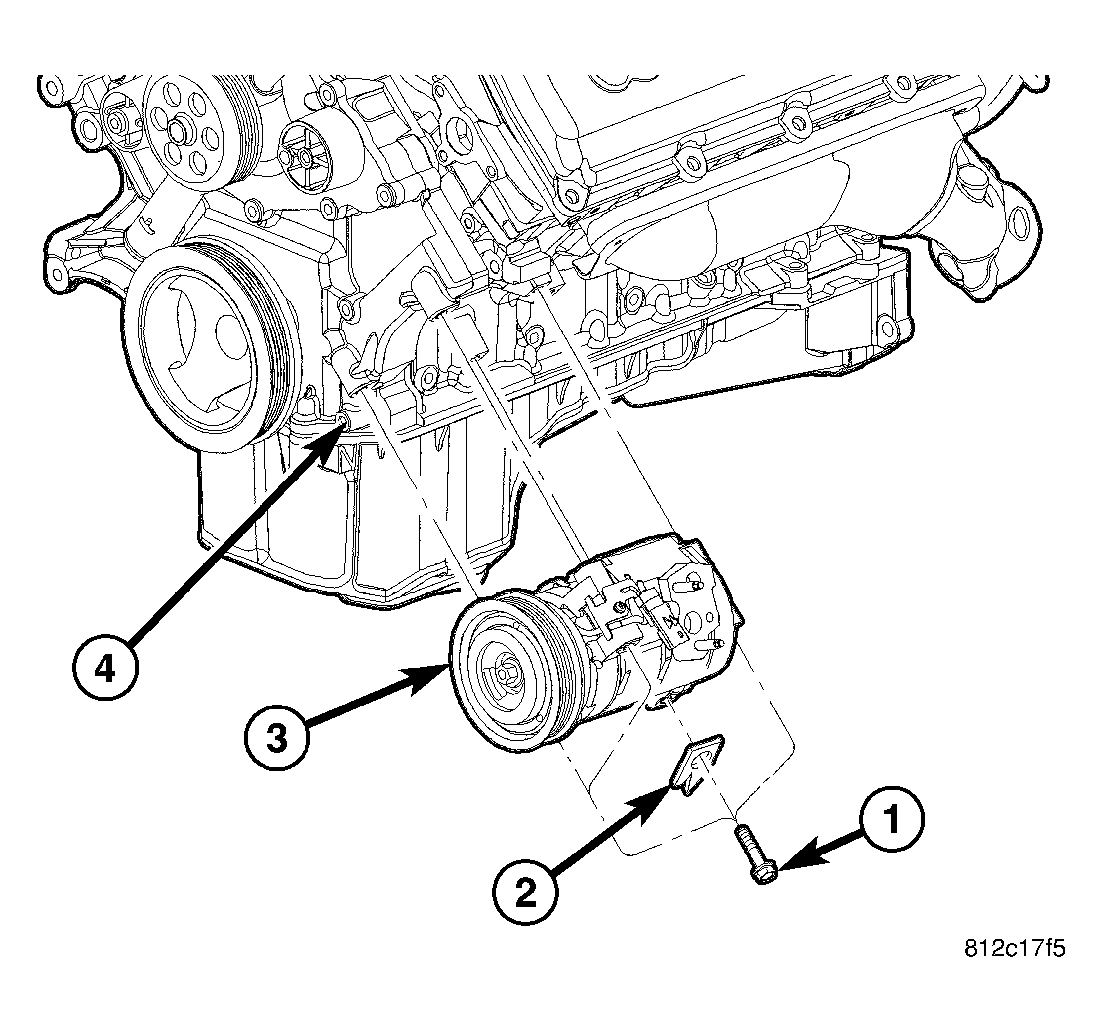

Fig 14: A/C Compressor Mounting - 5.7L
Courtesy of CHRYSLER LLC

Install a/c compressor (3). Refer to INSTALLATION .

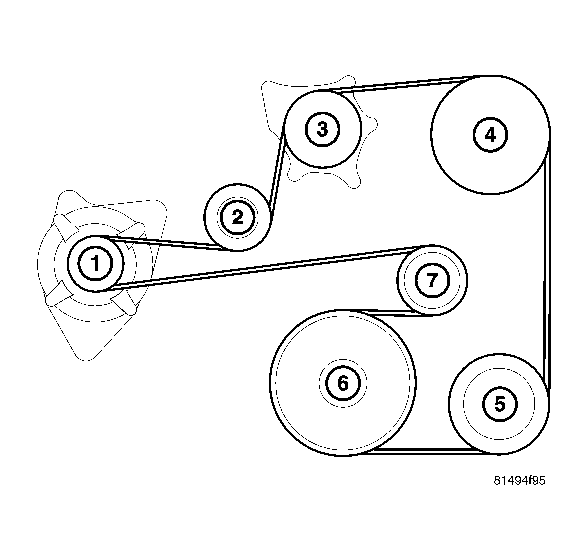

Fig 15: Identifying Accessory Drive Belt

Courtesy of CHRYSLER LLC

1 - GENERATOR

2 - IDLER PULLEY

3 - WATER PUMP

4 - P/S PUMP

5 - A/C COMPRESSOR

6 - CRANKSHAFT

7 - BELT TENSIONER

Install the accessory drive belt. Refer to INSTALLATION .
Install the radiator fan shroud. Refer to INSTALLATION .
Connect the radiator lower hose.
Connect the transmission oil cooler lines to the radiator.
Connect the radiator upper hose.

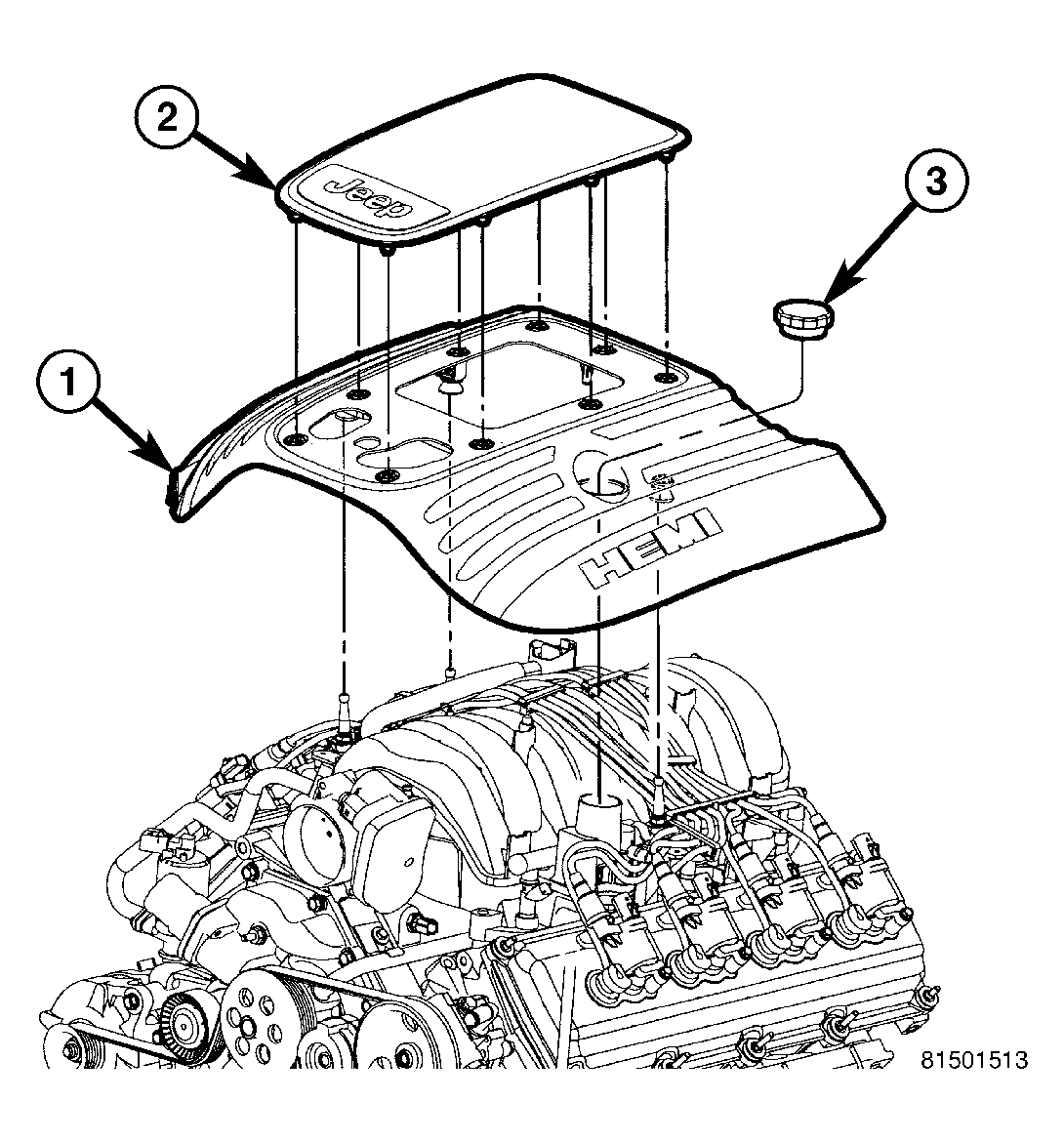

Fig 16: 5.7L Engine Appearance Cover
Courtesy of CHRYSLER LLC
Install the air cleaner resonator and duct work.
Add engine oil to crankcase. Refer to SPECIFICATIONS .
Fill cooling system. Refer to STANDARD PROCEDURE .
Install the engine cover (1).

Fig 17: Strut Tower Support
Courtesy of CHRYSLER LLC
Install the strut tower support (1).
Connect battery negative cable.
Start engine and inspect for leaks.
Road test vehicle.
