Piston Fitting
WARNING: This page is about a different variant/trim than selected.

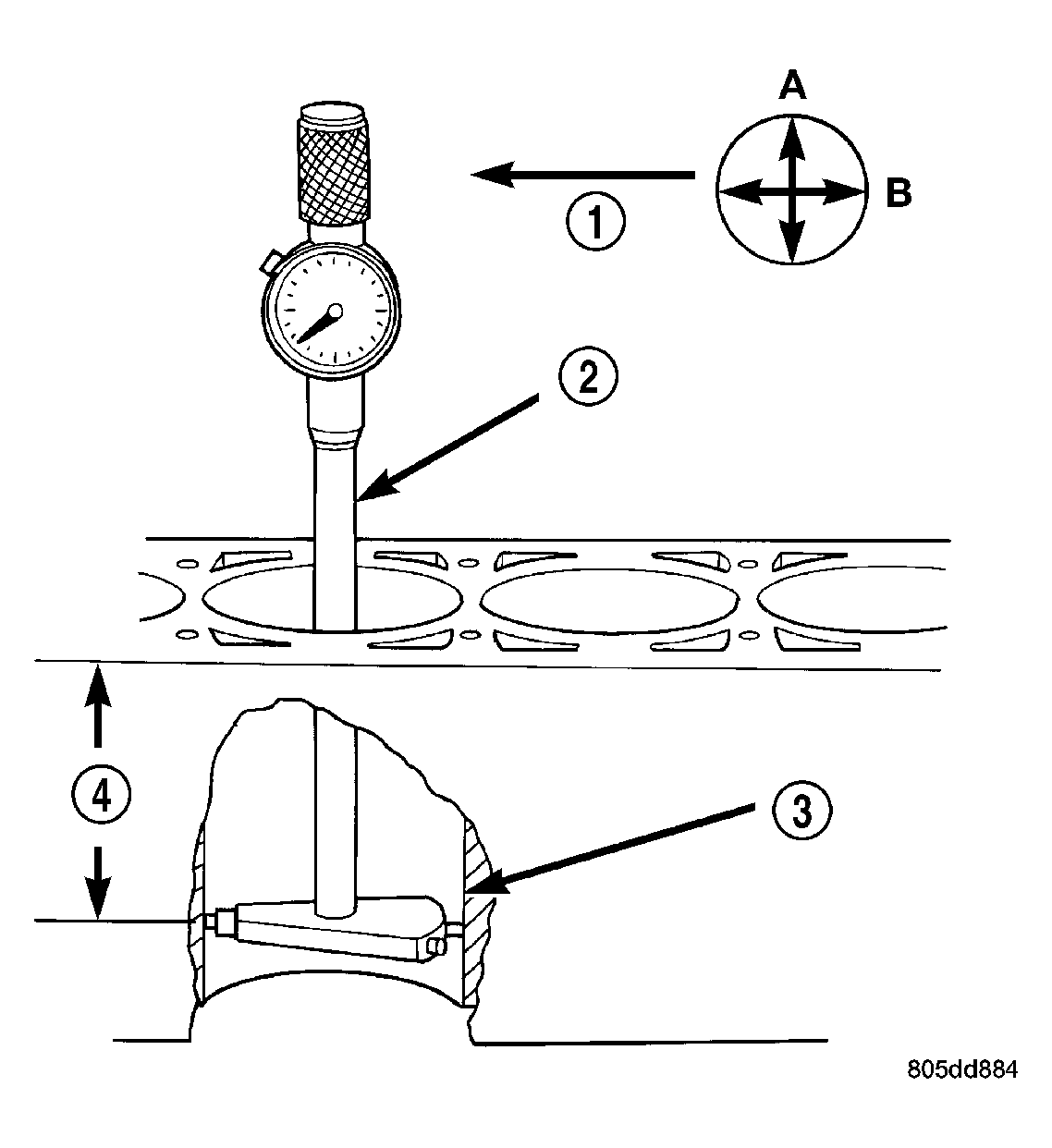

| 1 - FRONT |
| 2 - BORE GAUGE |
| 3 - CYLINDER BORE |
| 4 - 38 MM (1.5 in) |
- To correctly select the proper size piston, a cylinder bore gauge (2), capable of reading in 0.003 mm (0.0001 in.) INCREMENTS is required. If a bore gauge is not available, do not use an inside micrometer.
- Measure the inside diameter of the cylinder bore at a point 38.0 mm (1.5 inches) below top of bore (4). Start perpendicular (across or at 90 degrees) to the axis of the crankshaft at point A (1) and then take an additional bore reading 90 degrees to that at point B (1).
- The coated pistons will be serviced with the piston pin and connecting rod pre-assembled. The piston-rod assembly is specific for the left cylinder bank (odd numbered) and the right cylinder bank (even numbered) and must not be interchanged.

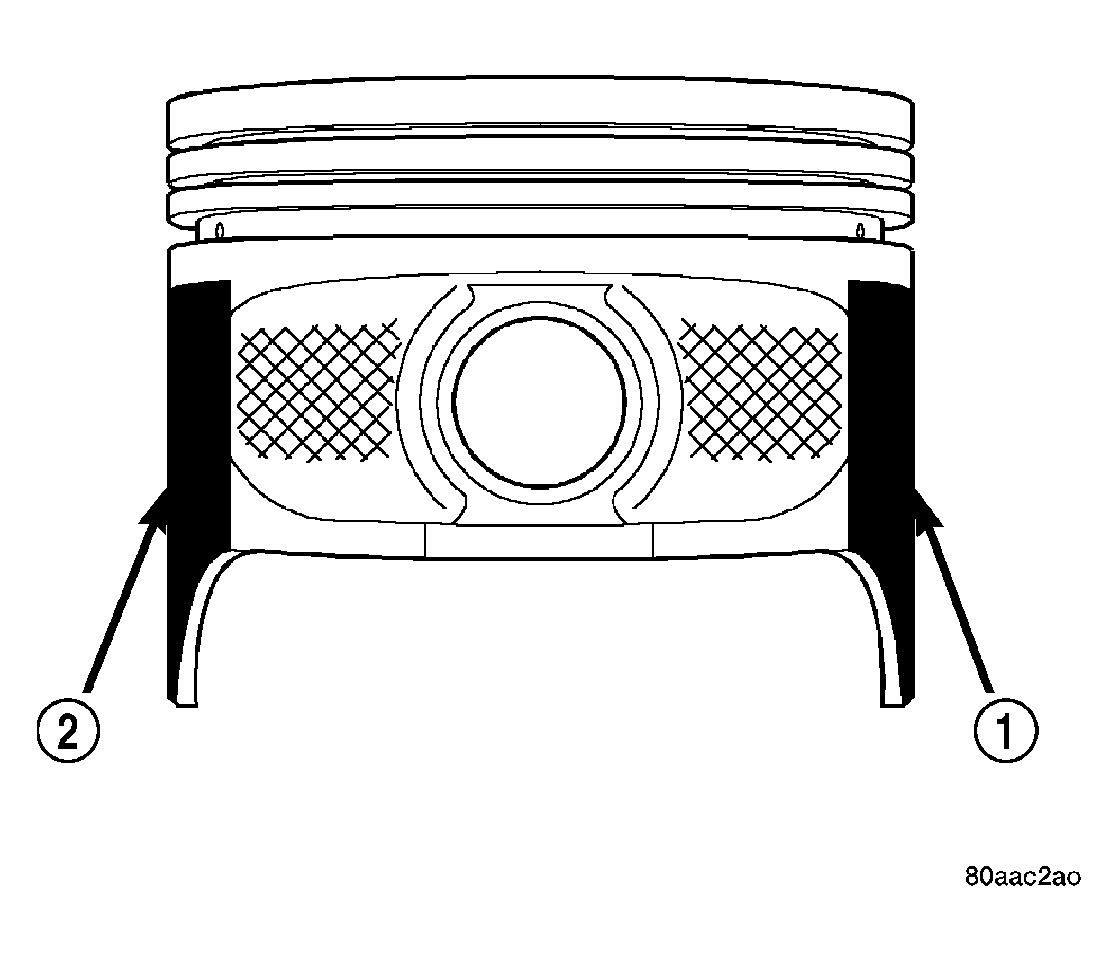

1 - MOLY COATED 2 - MOLY COATED - Measure the piston diameter with a micrometer at points (1,2).
