Flex Plate

WARNING: This page is about a different variant/trim than selected.

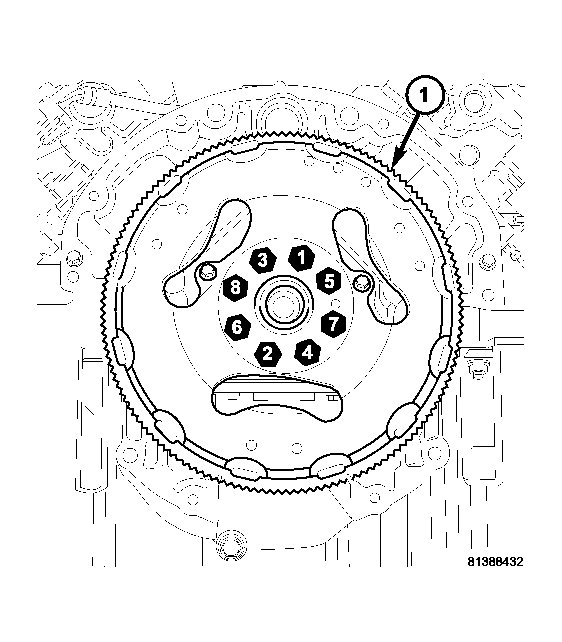

Fig 1: Flex Plate Bolt Tightening Sequence
GC0003986Courtesy of CHRYSLER LLC
1 - Flexplate
  1. Position the flexplate or flywheel onto the crankshaft and install the bolts hand tight.
  2. For automatic transmissions:   Tighten the flexplate retaining bolts to 95 N.m (70 ft. lbs.).
  3. Install the transmission.
