Engine Block: Cover-Structural: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

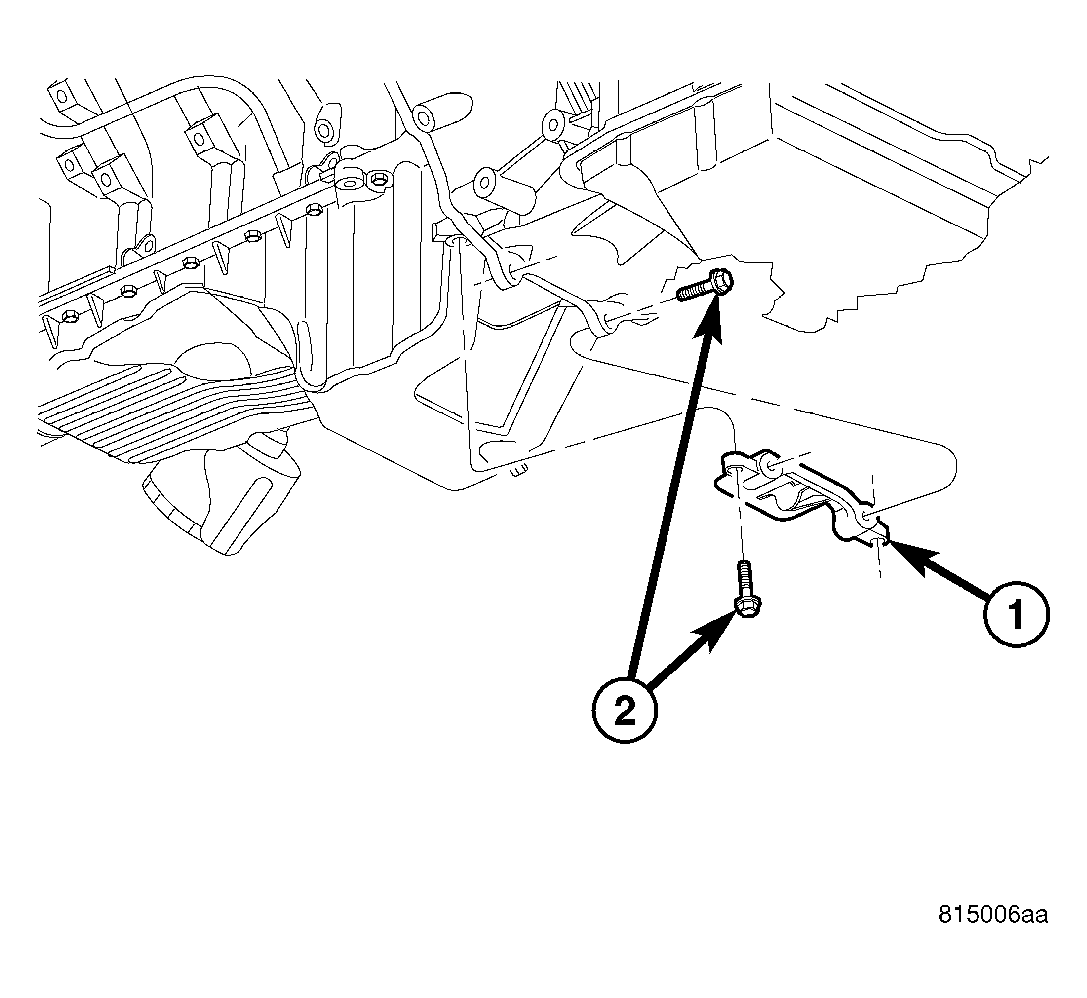

Fig 1: Structural Dust Cover
GC0027258Courtesy of CHRYSLER LLC
1 - STRUCTURAL COVER
2 - BOLTS
  1. Position the structural dust cover (1) onto the oil pan and transmission.
  2. Install the 4 bolts (2) and torque to 54 N.m (39 ft. lbs).
