Counter Balance Shaft Timing

WARNING: This page is about a different variant/trim than selected.

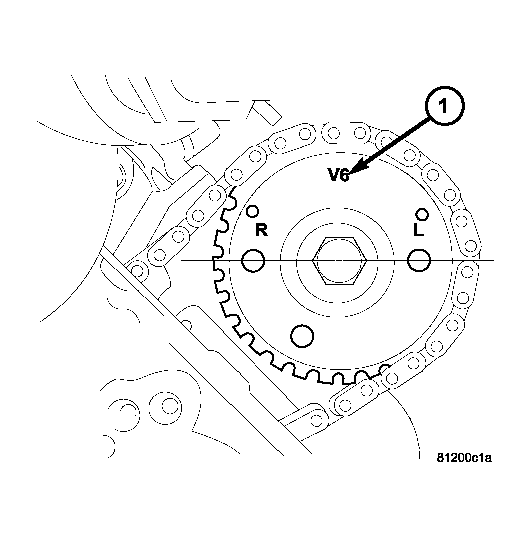

Fig 1: Camshaft Sprocket V6 Marks (#1 TDC, Exhaust Stroke)
GC0011847Courtesy of CHRYSLER LLC
  1. Ensure that the engine is at TDC with both camshaft sprocket V6 marks (1) in the 12 o'clock position.

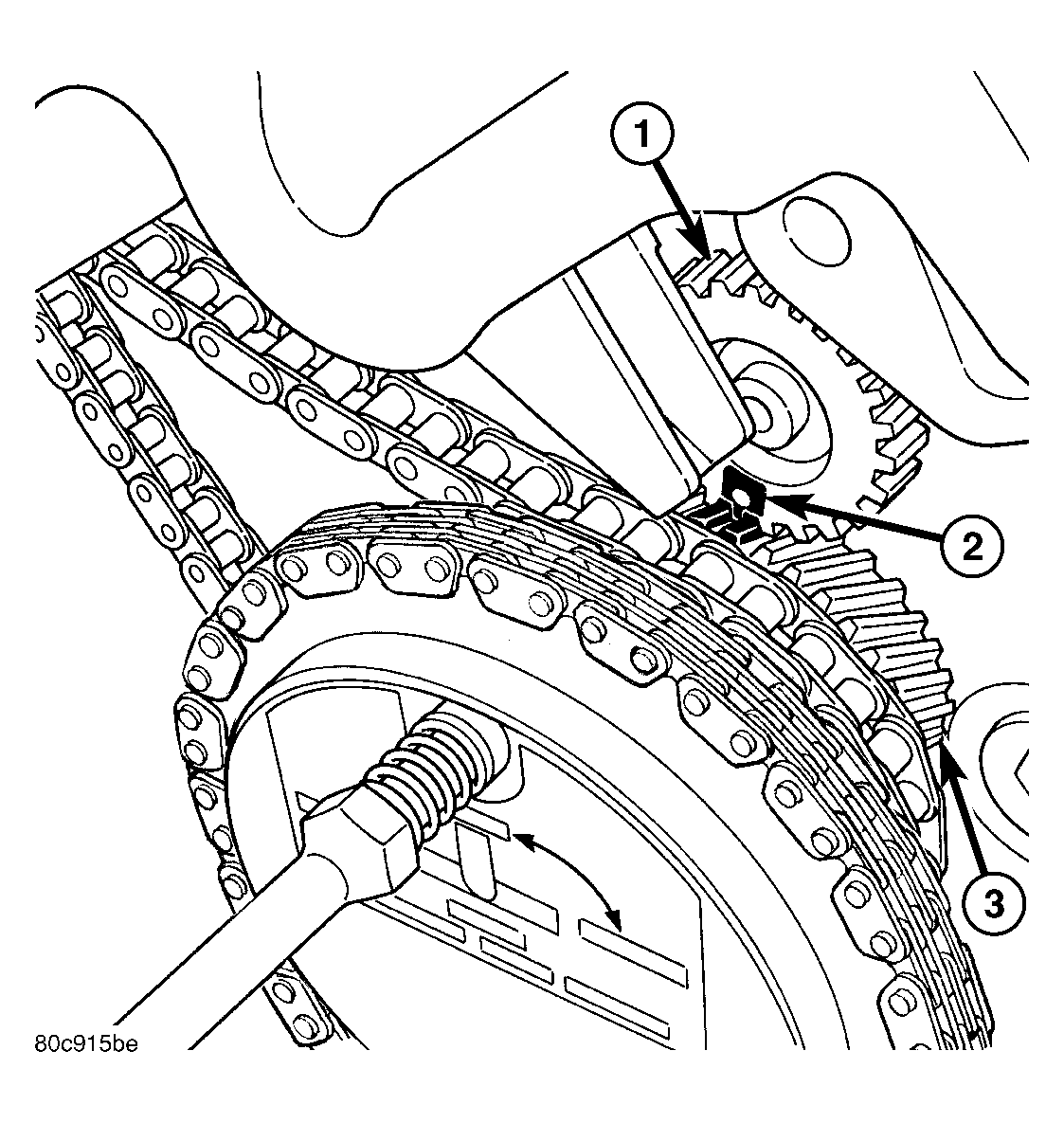

    Fig 2: Counterbalance Shaft Alignment Marks
    GC0011846Courtesy of CHRYSLER LLC
    1 - COUNTERBALANCE SHAFT GEAR
    2 - TIMING MARK
    3 - IDLER SPROCKET GEAR
  2. Look down the left cylinder head chain cavity. The timing dot on the counter balance shaft drive gear should be in the 6 o'clock position (2).
