Oil Pressure Sensor/Switch

WARNING: This page is about a different variant/trim than selected.

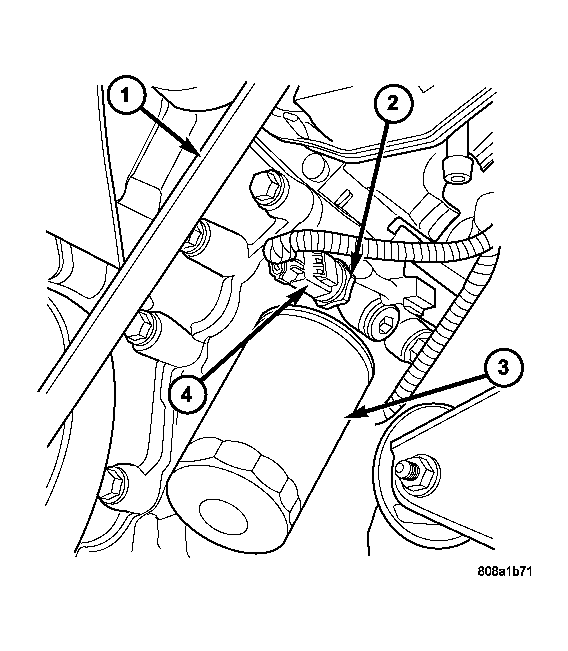

Fig 1: Oil Pressure Sending Unit
GC0011823Courtesy of CHRYSLER LLC
  1. Disconnect the negative cable from the battery.
  2. Raise vehicle on hoist.
  3. Remove front splash shield.
  4. Disconnect oil pressure switch connector (4).
  5. Remove the pressure switch (2).
