Engine Mount

WARNING: This page is about a different variant/trim than selected.

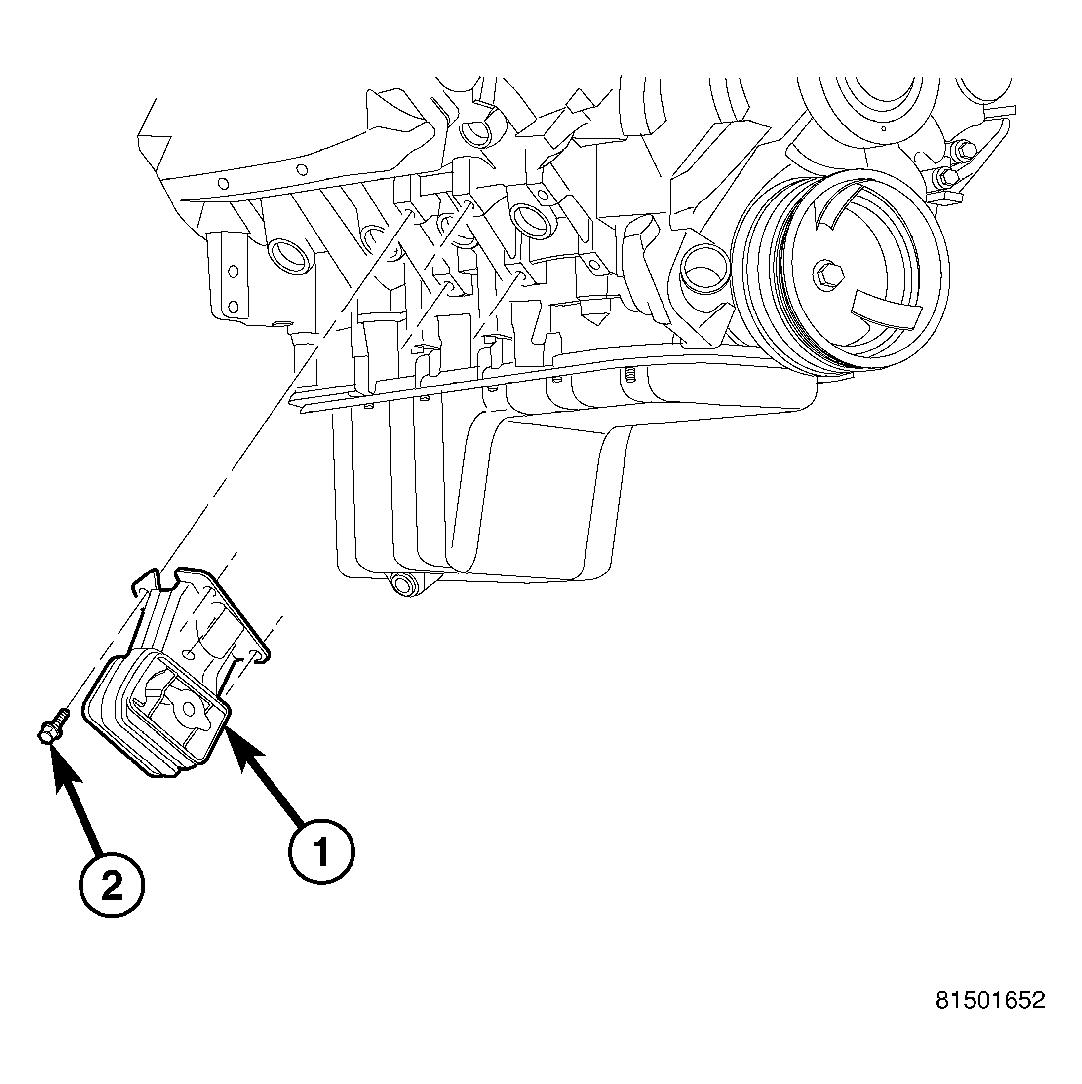

Fig 1: Removing/Installing Engine Mount
GC0027232Courtesy of CHRYSLER LLC
  1. Install the engine mount (1).
  2. Tighten the bolts to 30 N.m (22 ft.lbs.).
  3. Lower the engine.
  4. Install the through bolts and nuts.
  5. Lower vehicle.
  6. Connect negative battery cable.
