Structural Cover

WARNING: This page is about a different variant/trim than selected.

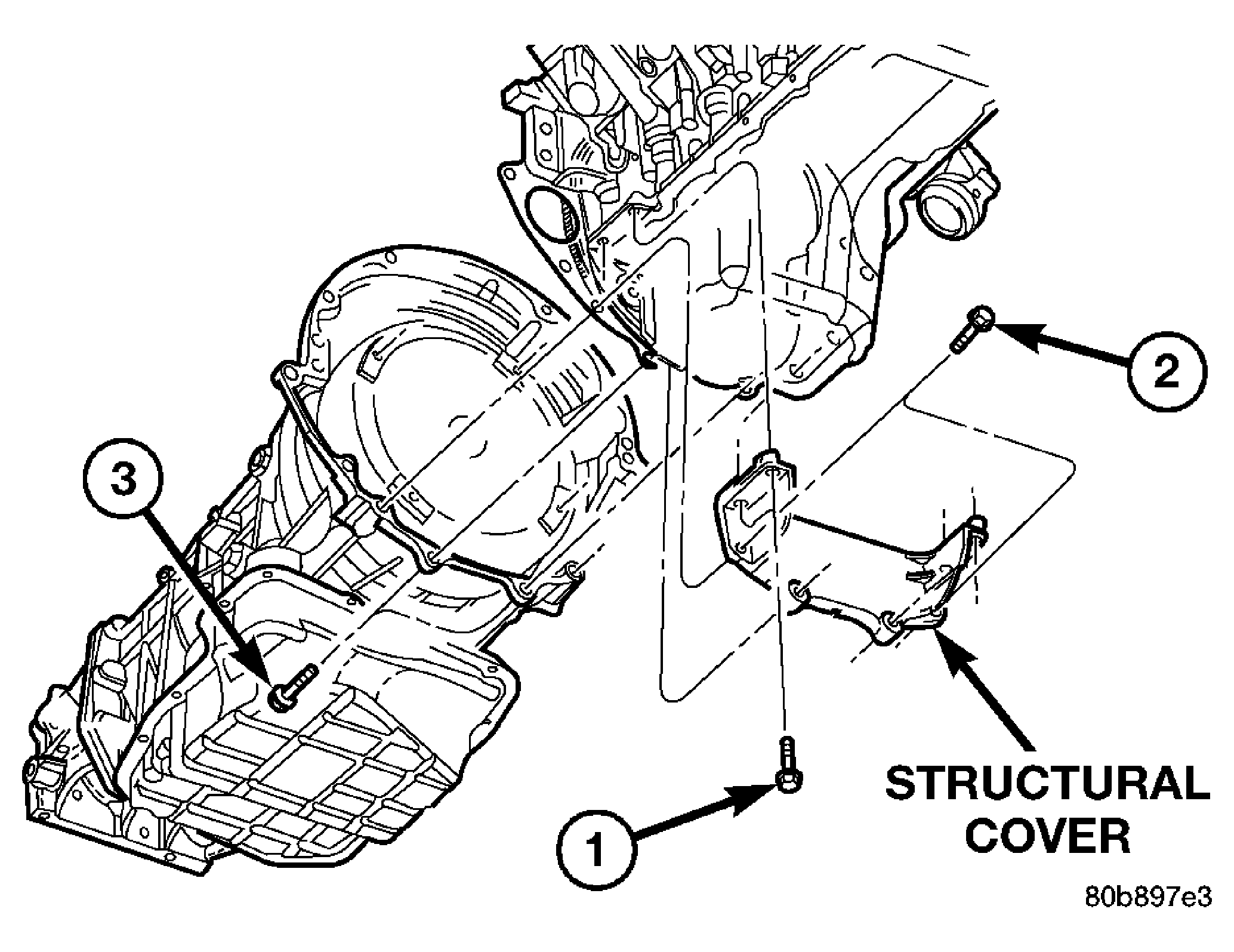

Fig 1: Removal And Installation Structural Cover
GC0011809Courtesy of CHRYSLER LLC
1 - STRUCTURAL COVER TO ENGINE BOLTS
2 - STRUCTURAL COVER TO TRANSMISSION BOLTS
2 - TRANSMISSION TO STRUCTURAL COVER BOLTS
CAUTION: The structural cover must be installed as described in the following steps. Failure to do so will cause severe damage to the cover.
  1. Position the structural cover in the vehicle.
  2. Install all bolts (1, 2, and 3) retaining the cover-to-engine. DO NOT  tighten the bolts at this time.
  3. Install the four cover-to-transmission bolts. Do NOT tighten at this time.
    CAUTION: The structural cover must be held tightly against both the engine and the transmission bell housing during tightening sequence. Failure to do so may cause damage to the cover.
  4. Starting with the two rear cover-to-engine bolts, tighten bolts (1) to 54 N.m (40 ft. lbs.), then tighten bolts (2) and (3) to 54 N.m (40 ft. lbs.) in the sequence shown in illustration.
  5. Install the exhaust pipe on left hand exhaust manifold.
  6. Tighten exhaust manifold-to-exhaust pipe retaining bolts to 20 - 26 N.m (15-20 ft. lbs.).
