Rocker Arms

WARNING: This page is about a different variant/trim than selected.

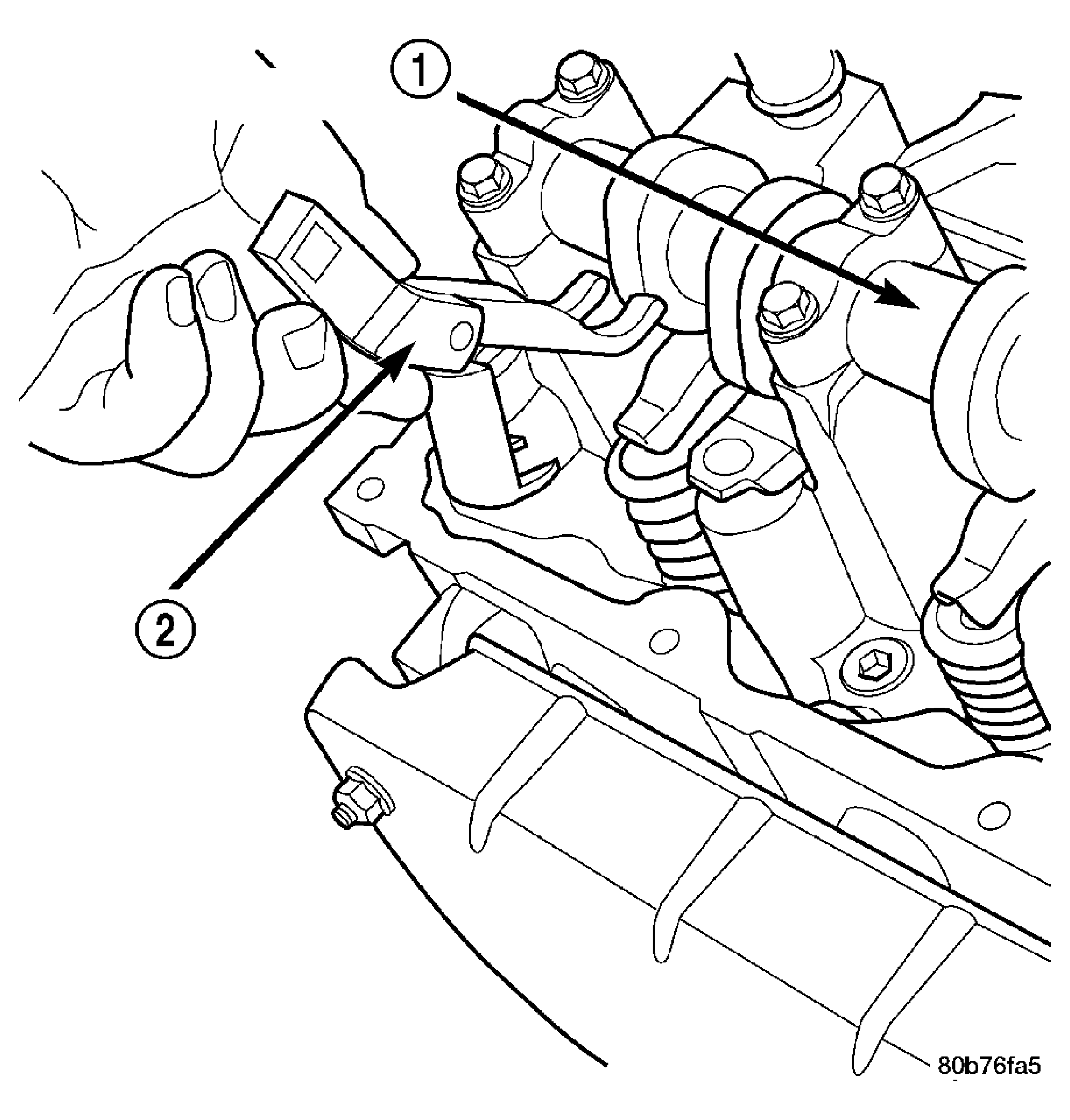

Fig 1: Removing Rocker Arm
GC0011767Courtesy of CHRYSLER LLC
NOTE: Disconnect the battery negative cable to prevent accidental starter engagement.
  1. Remove the cylinder head cover. See REMOVAL .
  2. For rocker arm removal on cylinder No. 4, Rotate the crankshaft until cylinder No. 1 is at BDC intake stroke.
  3. For rocker arm removal on cylinder No. 1, Rotate the crankshaft until cylinder No. 1 is at BDC combustion stroke.
  4. For rocker arm removal on cylinders No. 3 and No. 5, Rotate the crankshaft until cylinder No. 1 is at TDC exhaust stroke.
  5. For rocker arm removal on cylinders No. 2 and No. 6, Rotate the crankshaft until cylinder No. 1 is at TDC ignition stroke.
  6. Using the Remover/Installer 8516 (2), press downward on the valve spring, remove rocker arm.
