Housing Assembly

WARNING: This page is about a different variant/trim than selected.

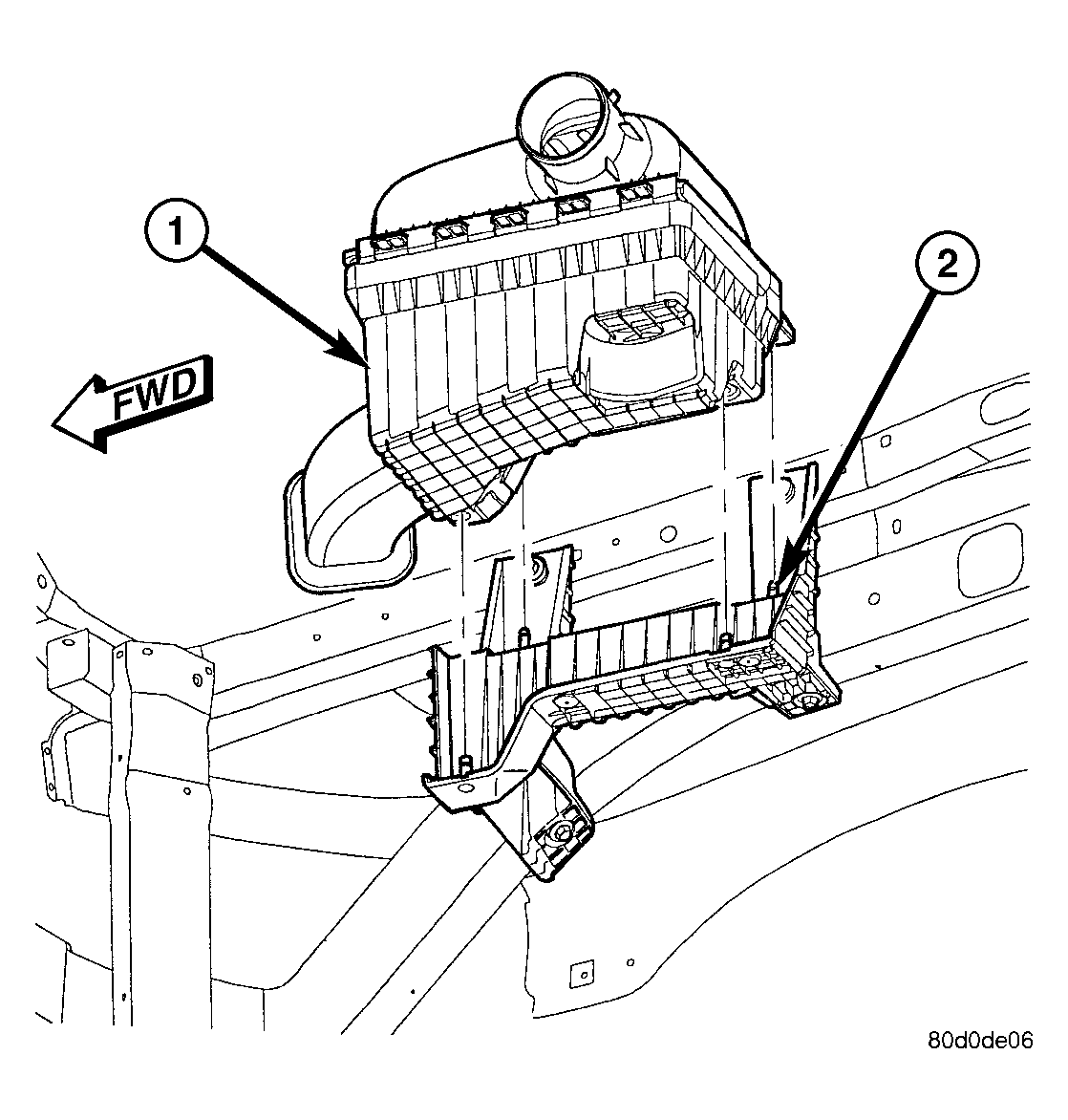

Fig 1: Removing/Installing Air Cleaner Housing
GC0011740Courtesy of CHRYSLER LLC
  1. Loosen clamp and disconnect air duct at air cleaner cover.
  2. Lift entire housing assembly (1) from 4 locating pins (2).
