Air Cleaner Element

WARNING: This page is about a different variant/trim than selected.

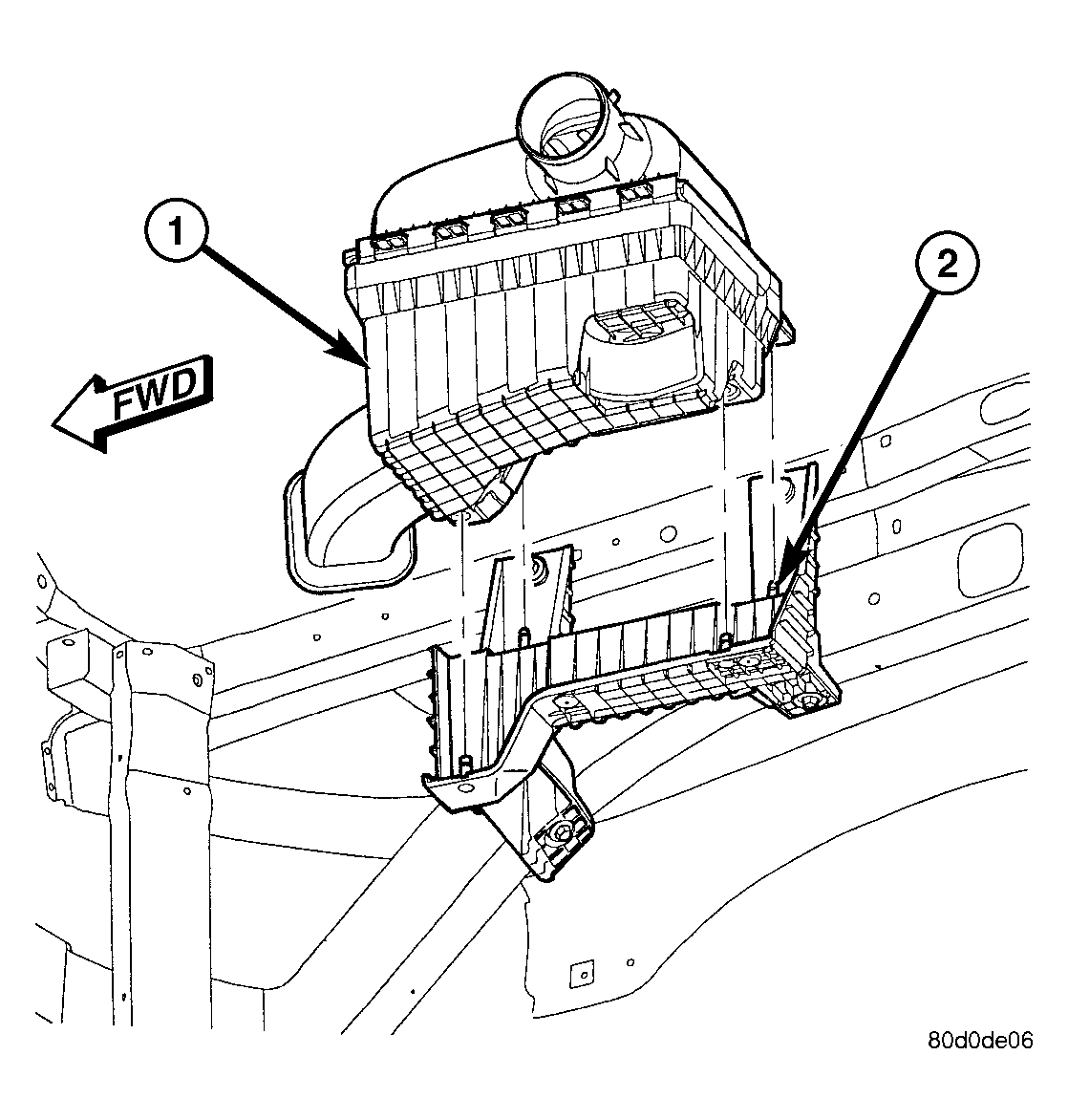

Fig 1: Removing/Installing Air Cleaner Housing
GC0011742Courtesy of CHRYSLER LLC
  1. Install filter element into housing (1).
  2. Position housing cover into housing locating tabs.
  3. Pry up 4 spring clips and lock cover to housing.
  4. Install air duct to air cleaner cover and tighten hose clamp to 3 N.m (30 in. lbs.) torque.
  5. If any other hose clamps were removed from air intake system, tighten them to 3 N.m (30 in. lbs.) torque.
  6. If any bolts were removed from air resonator housing or air intake tubing, tighten them to 4 N.m (40 in. lbs.) torque.
